Get Help

Turn on suggestions

Auto-suggest helps you quickly narrow down your search results by suggesting possible matches as you type.

Showing results for

- Community
- :
- PTC Mathcad
- :
- PTC Mathcad
- :
- equation

Options

- Subscribe to RSS Feed
- Mark Topic as New
- Mark Topic as Read
- Float this Topic for Current User
- Bookmark
- Subscribe
- Mute
- Printer Friendly Page

Auto-suggest helps you quickly narrow down your search results by suggesting possible matches as you type.

Showing results for

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-18-2019
03:52 AM

10-18-2019
03:52 AM

hello everyone I try to use help quick sheets and I wrote the following eq but I get the red line almost for all the results and I do exactly step by step im sure there is something missing here but I can not find it could you check it out and let me know what's is the problem

plz check the attachment

Solved! Go to Solution.

Labels:

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-21-2019
01:32 PM

10-21-2019
01:32 PM

21 REPLIES 21

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-21-2019
01:01 PM

10-21-2019
01:01 PM

Re: equation

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-21-2019
01:32 PM

10-21-2019
01:32 PM

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-22-2019
01:40 AM

10-22-2019
01:40 AM

Re: equation

thank you for response I figured out , and I wrote it down, my question is , how this output plot change depend on R value, I mean I would like to add variable value of R from __0.1 to 5 ohm .__ in attached file r is fixed but I want make a loop with 5 different value of R .

thank you in advance

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-23-2019
04:54 AM

10-23-2019
04:54 AM

Re: equation

See this discussion: https://community.ptc.com/t5/PTC-Mathcad/Plotting-a-family-of-curves/m-p/43766

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-24-2019
01:48 AM

10-24-2019
01:48 AM

Re: equation

hank you for help but I could not find my answer , I need to find the out put with 4 different value of R I already made a R vector BUT I could not find solution

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-23-2019
11:51 PM

10-23-2019
11:51 PM

Re: equation

thank you for response I figured out , and I wrote it down, my question is , how this output plot change depend on R value, I mean I would like to add variable value of R from __0.1 to 5 ohm __ I attached the file .

thank you in advance

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-24-2019
10:21 AM

10-24-2019
10:21 AM

Re: equation

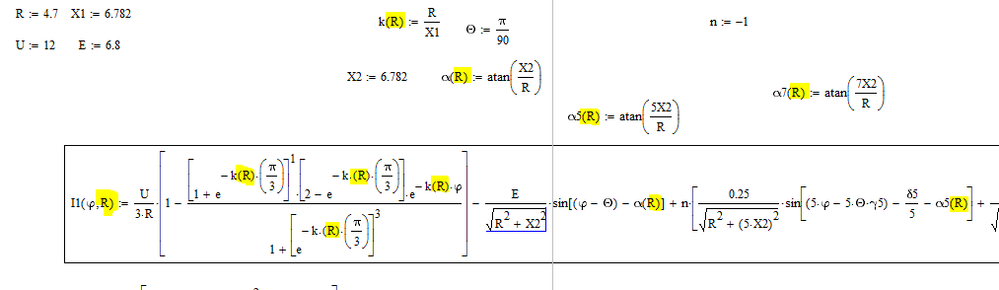

You will have to turn all constants which depend on R into functions of R and add R as additional argument to your existing functions.

I show it here for the first few expressions

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-25-2019
01:38 AM

10-25-2019
01:38 AM

Re: equation

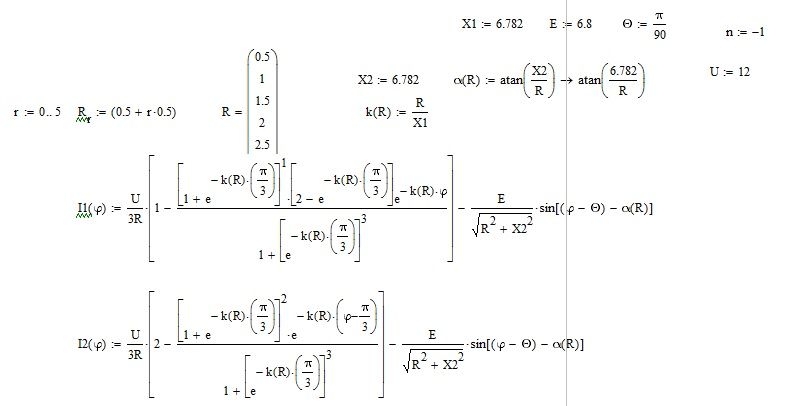

I applied all the change you said and simplified the eq please check the plot . I made a R vector and it applied to all equation but as you see in picture it make no sense to me I need to show how I(current ) change due to different R, for that I need a 3 value plot which show G,I,R I tried 3d plot but it said value not defined could you explain how to make it

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-25-2019
01:58 AM

10-25-2019
01:58 AM

Re: equation

You did NOT apply all necessary changes.

What you show here is I's only dependent on phi, not on R.

From your remark I understand that you essentially need a 3-d plot. In that case follow my example of this thread: https://community.ptc.com/t5/PTC-Mathcad/equation/td-p/631776

Success!

Luc

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-25-2019
02:12 AM

10-25-2019
02:12 AM

Re: equation

this is almost the same eq that I post with some change it end up like that I used you example to write R vector but how to use G plot depend on fi and R I don't understand. please check the attachment there is 6 equations and I cant not apply those change to all of them

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-28-2019
09:28 AM

10-28-2019
09:28 AM

Re: equation

"there is 6 equations and I cant not apply those change to all of them "

Unfortunately, sometimes, to make the changes we need to requires a lot of modifying. Mathcad (15 and before) had a very robust and extremely useful "Find and replace," function for these kinds of changes. The one available in Prime is woefully underpowered and inadequate for the task.

Sorry! Start editing.

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-28-2019
03:20 AM

10-28-2019
03:20 AM

Re: equation

I don't know how to apply to all equation I've try as you said but not working

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-28-2019
06:07 AM

10-28-2019
06:07 AM

Re: equation

Attach your worksheet, saved as a Mathcad 11 .MCD file and I'll see if I can help you.

Success!

Luc

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-29-2019
01:59 AM

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-29-2019
06:52 AM

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-30-2019
02:20 AM

10-30-2019
02:20 AM

Re: equation

I really appreciate this. thank you so much , I do my best to learn Mathcad , every example you guys give I learn something new.

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-30-2019
10:53 AM

10-30-2019
10:53 AM

Re: equation

Nice!

...' irritation loop '...

well chosen designation, or typo?

Luc

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-30-2019
01:53 PM

10-30-2019
01:53 PM

Re: equation

@LucMeekes wrote:

Nice!

...' irritation loop '...

well chosen designation, or typo?

Luc

It should read "irritating loop", but 'irritation loop' is not so far away from what I had in mind 😉

Actually I am famous for my typos 😉

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-30-2019
02:12 PM

10-30-2019
02:12 PM

Re: equation

Oh, and I thought you had meant to write:

'iteration loop'

😲

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-28-2019
09:30 AM

10-28-2019
09:30 AM

Re: equation

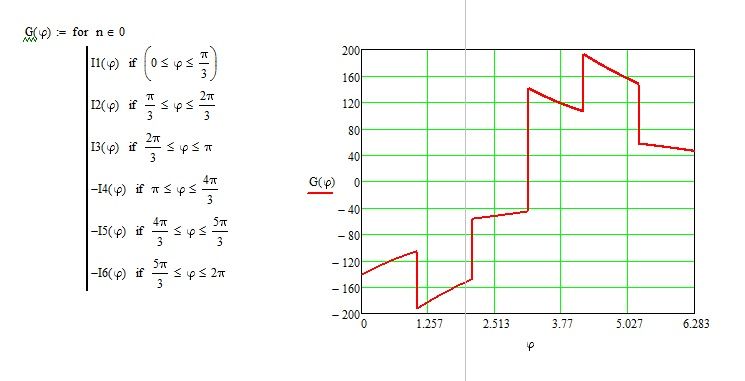

There are two remarks to be made regarding the definition of the function G(phi):

There is a FOR loop that uses loop variable n, but n is not used further in the function.

There is a number of IF statements, covering the range 0 to 2pi, but what if phi is <0 or > 2pi...? You need an OTHERWISE.

Success!

Luc

Once more. Here's an example for a (plot of) a function of two variables:

Highlighted
##

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

10-29-2019
02:37 AM

10-29-2019
02:37 AM

Re: equation

luc thank you with response , IF function I use because each I (current ) has specific interval for example I2 FROM PI/3 TO 2PI/3 only that means each I has own phi just I need to check and study how R can effect current in equation
