Creo Fundamentals of Solid Modeling 1 exercise 4 & 5 dimensioning

[JW_13370420]

Trying to work though exercise 4 and 5 along with video. When adding a dimension to sketch, nothing comes up.

[shussaini]

Possibly previous command may be active. Middle click to end the command. Then attempt to start with Dimensioning. After selecting the references for dimensions, then again middle click to place the dimension. You can refer the video which is linked before the started of exercise in the training guidebook.

Hope this helps.

regards

~Syed

[Matt_Huybrecht]

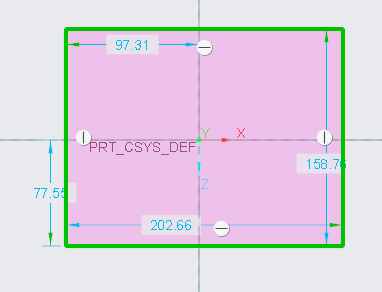

Do you even see the weak dimensions that should display by default for the sketch? Like this?

If you don't see even these dimensions then you probably don't have dimension display turned on in Sketcher mode.

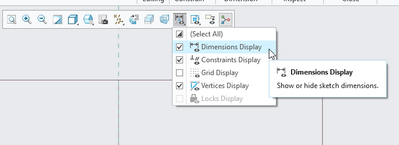

In the In Graphics toolbar (located at the top of the graphics window by default), make sure that dimension display is enabled:

Regards,

Matt

[JW_13370420]

The was very helpful. thank you....

[Matt_Huybrecht]

Great to hear! Please don't hesitate to reach out with further questions. We monitor these chats and while our responses are often not immediate we try and respond within an hour or so.
