Trouble during Extruded Cut

Hi everyone,

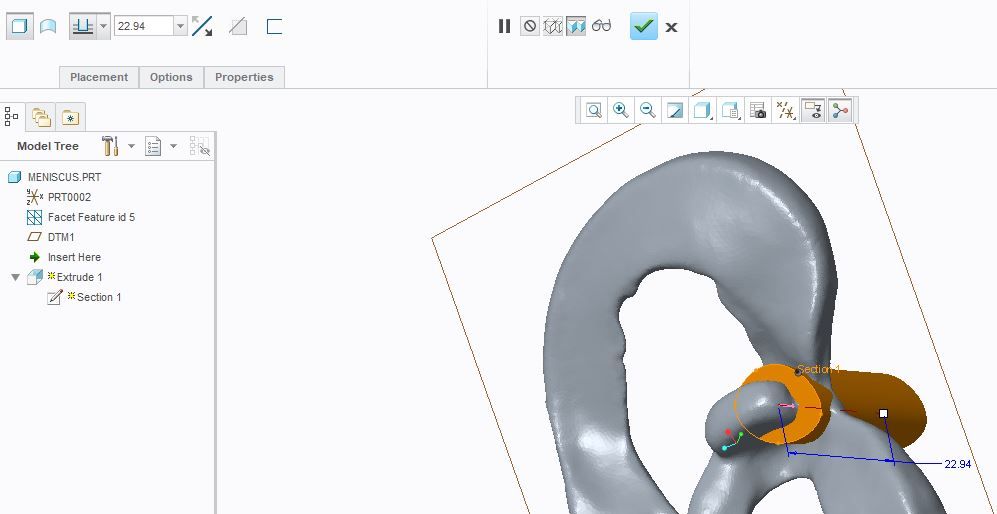

I want to split one part into two using creo. I aimed for extruded cut to do so. When I sketch and press extrude, the extruded cutting option remains inactive. It could not be selected. I would be very thankful if anyone helps me out with this.menisci.JPG

1 ACCEPTED SOLUTION

Accepted Solutions

Re: Trouble during Extruded Cut

You need solid or geometry before you can make a cut. Facet geometry is neither solid or surface.  You'll need to uise something like the Reverse Engineering Extension to make solid or surface geometry out of your scan data first.

--
Doug Schaefer | Experienced Mechanical Design Engineer
LinkedIn

View solution in original post

4 REPLIES 4

Re: Trouble during Extruded Cut

Hi,



Facet geometry is special kind of geometry, you cannot combine this geometry with standard Creo features.



I am not sure what to do ... maybe you can save your part as shrinkwrap and apply your modification in this new part.


Martin Hanák

Re: Trouble during Extruded Cut

You need solid or geometry before you can make a cut. Facet geometry is neither solid or surface.  You'll need to uise something like the Reverse Engineering Extension to make solid or surface geometry out of your scan data first.

--
Doug Schaefer | Experienced Mechanical Design Engineer
LinkedIn

View solution in original post

Re: Trouble during Extruded Cut

Thank you for your reply. I did it using geomagic studio 12. I simply removed the things which were not required in the point cloud data that I obtained from 3d scanning.

Re: Trouble during Extruded Cut

Thank you
