Unable to create sectional cut (Curve) using offset section

Hi everyone,

Would appreciate if anyone can shed some light on this.

I'm new to Creo 5.0. Trying to make a section cut in my part itself (Not drawing).

1.View-> Section ->  Offset Section

2. I then select my sketch

3. And things work fine so long as my sketch consists of straight lines. If my sketch is an open semi-circle for example then Creo refuses to do the cut.

Am I missing something?

Thank You

Sandy





1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted

Re: Unable to create sectional cut (Curve) using offset section


@Sandy1 wrote:

@MartinHanak

@kdirth



Hi Martin, kdirth,



Please find attached pictures and the part of what I am referring to.  I am trying to do a sectional cut.

View-> Section ->  Offset Section, from there I can choose a sketch. But it seems that the offset Section cannot display sectional cut from sketch that contains curve.



I know Catia can do that, and by extension Solidworks as well. I'm pretty sure Creo can do it, can it?



Thank you

Sandy


Hi,

unfortunately requested functionality is not implemented. Please read  https://www.ptc.com/en/support/article/CS252750 document. It contains following text:

Resolution




Martin Hanák

View solution in original post

6 REPLIES 6
Highlighted

Re: Unable to create sectional cut (Curve) using offset section


@Sandy1 wrote:

Hi everyone,

Would appreciate if anyone can shed some light on this.

I'm new to Creo 5.0. Trying to make a section cut in my part itself (Not drawing).

1.View-> Section ->  Offset Section

2. I then select my sketch

3. And things work fine so long as my sketch consists of straight lines. If my sketch is an open semi-circle for example then Creo refuses to do the cut.

Am I missing something?

Thank You

Sandy






Hi,

I guess semicircle entities are not allowed. Please attach a picture of your "cut".


Martin Hanák
Highlighted

Re: Unable to create sectional cut (Curve) using offset section

@MartinHanak

@kdirth



Hi Martin, kdirth,



Please find attached pictures and the part of what I am referring to.  I am trying to do a sectional cut.

View-> Section ->  Offset Section, from there I can choose a sketch. But it seems that the offset Section cannot display sectional cut from sketch that contains curve.



I know Catia can do that, and by extension Solidworks as well. I'm pretty sure Creo can do it, can it?



Thank you

Sandy

Highlighted

Re: Unable to create sectional cut (Curve) using offset section


@Sandy1 wrote:

@MartinHanak

@kdirth



Hi Martin, kdirth,



Please find attached pictures and the part of what I am referring to.  I am trying to do a sectional cut.

View-> Section ->  Offset Section, from there I can choose a sketch. But it seems that the offset Section cannot display sectional cut from sketch that contains curve.



I know Catia can do that, and by extension Solidworks as well. I'm pretty sure Creo can do it, can it?



Thank you

Sandy


Hi,

unfortunately requested functionality is not implemented. Please read  https://www.ptc.com/en/support/article/CS252750 document. It contains following text:

Resolution




Martin Hanák

View solution in original post

Highlighted

Re: Unable to create sectional cut (Curve) using offset section

Thank you @MartinHanak



I would have thought such a powerful CAD software would have handled that easily, especially while others can. Oh well....



Sandy

Highlighted

Re: Unable to create sectional cut (Curve) using offset section

I agree that this is something that CREO should be able to handle.

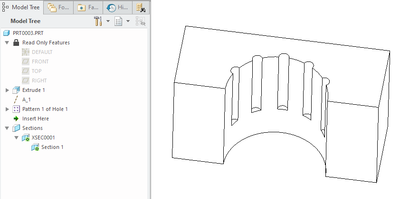

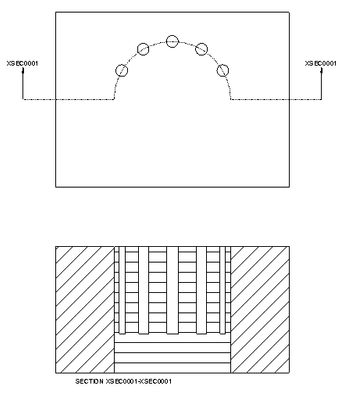

They appear to have not put in the effort to make it work in a shaded view.  It does work in a line view and partially in a drawing.  The cross section lines in the drawing are a bit messed up, not maintaining the angle through the arc.  Images below.










Creo is an endless adventure: Always more to learn.
Highlighted

Re: Unable to create sectional cut (Curve) using offset section

Looking at the messages while trying to create the section in 4.0 I get the following message:



"Offset sections that include arcs or splines cannot be displayed as clipped in shaded mode."



You can use arcs and splines to create an offset section.  However, for whatever reason, you can not show the section in a shaded mode.  Works fine in wireframe.


Creo is an endless adventure: Always more to learn.
