Did you know? Mapped Meshing of Spheres

Level 11

Did you know? Mapped Meshing of Spheres


Use quilts to create volume regions.  This view is the same all 3 XYZ sides of the center cube.




Trim and merge to look like this.




TIP: mapping does not work at the "poles" as seen by [Inspect]  [Mesh surface]  (shows U-V lines)




replace surface as shown (revolve around another axis then trim by surfaces like view 2 then patch)

confirm with [Inspect]  [Mesh surface] .



View3 Vols.PNG

Create volume regions by quilt until this.

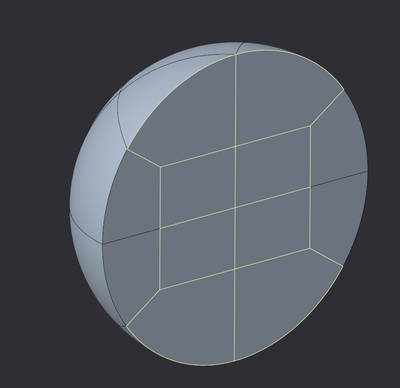

View4 section.PNG

Section view showing internal volume lines.



Map the normal way with bricks.

Tip: use RMB pick from list when it gets busy.

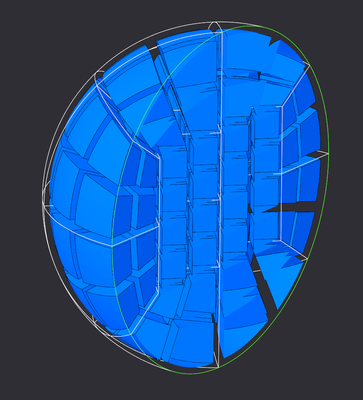

View5 sectioned.PNG

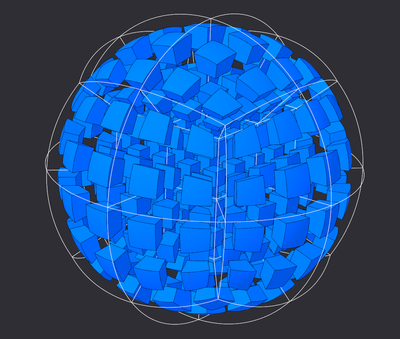

View12 meshed.PNG





A hollow sphere proceeds exactly the same except the internal spherical surface must also have its U-V lines fixed.  (Center cube only for construction)



View8 hollow.PNG

View9 hollow.PNG

View10 hollow.PNG

View11 vols.PNG

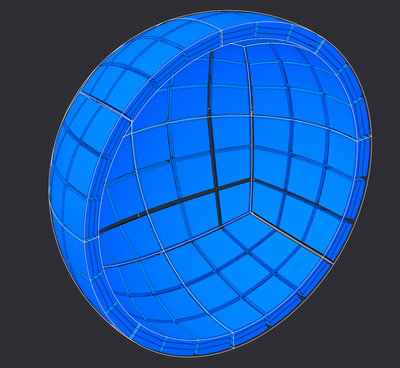

View12 sectioned.PNG

View6 meshed.PNG





This also can produce the truncated quarter sphere.  (shown with 1 element per edge)


1 REPLY 1

Re: Did you know? Mapped Meshing of Spheres

 .step files with the quilts for volume regions and "fixed" U-V.
