QUIZ: Slide

Level 12

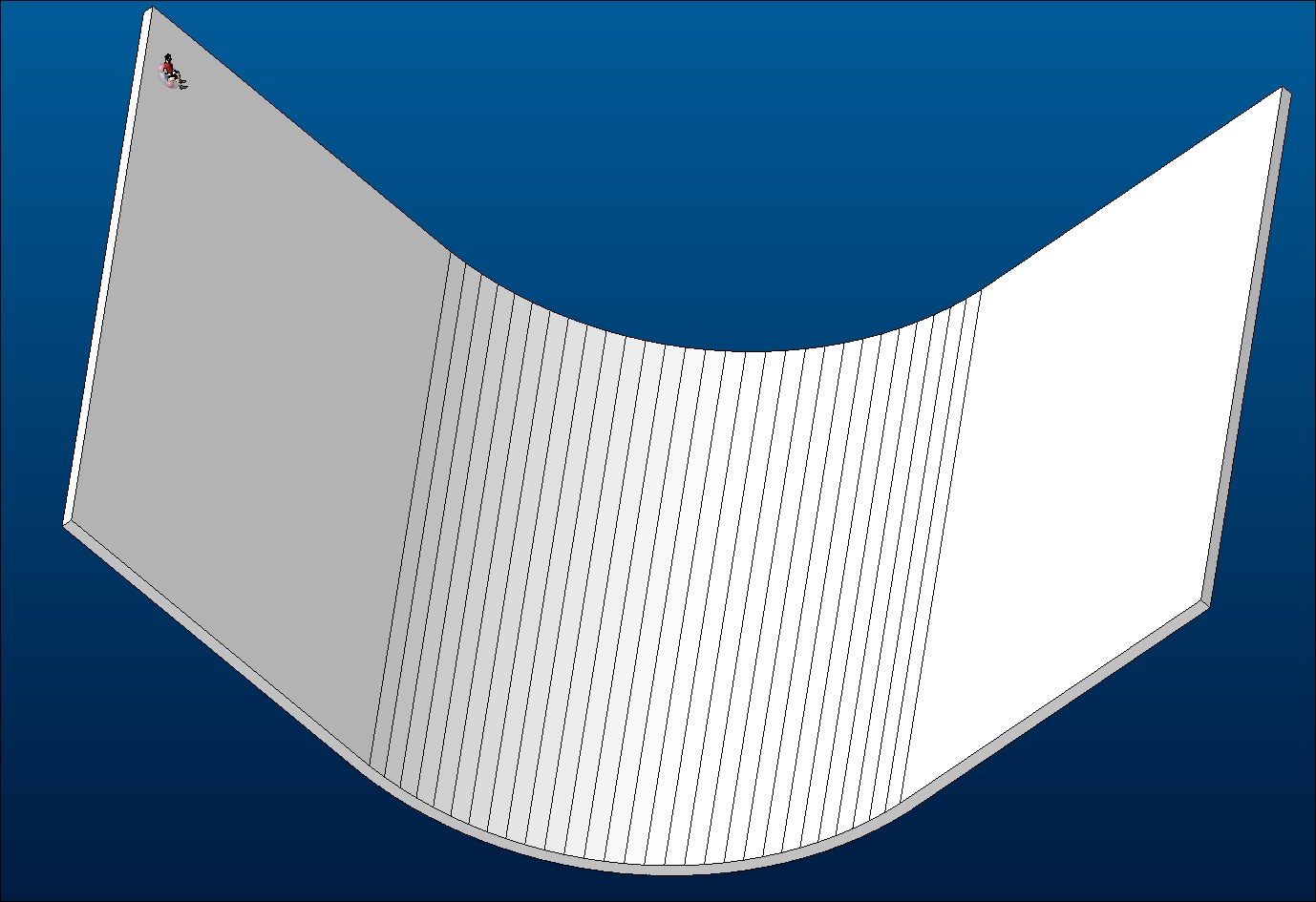

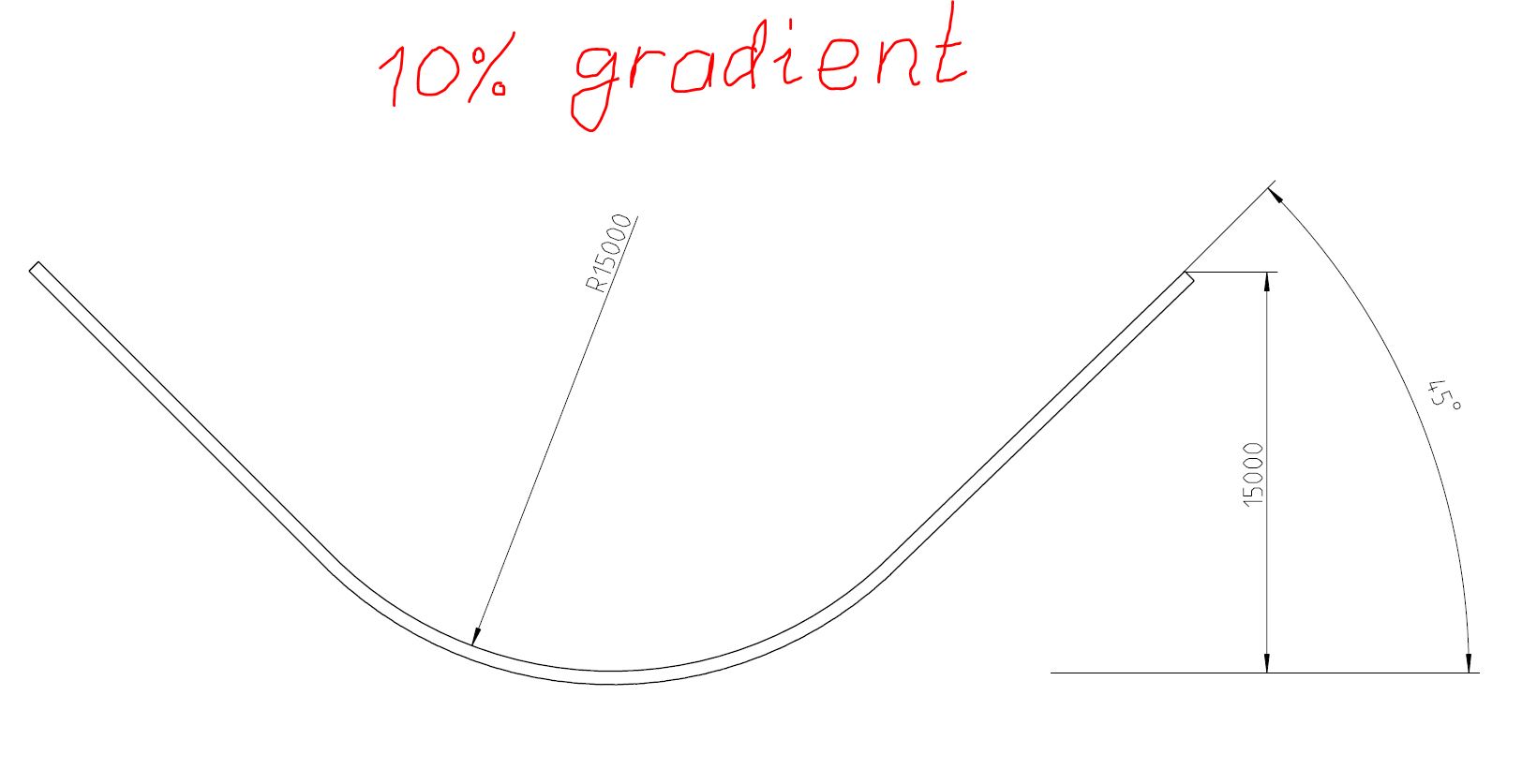

QUIZ: Slide


dynamic friction 0,05


(view in My Videos)

8 REPLIES 8

Re: QUIZ: Slide

(view in My Videos)

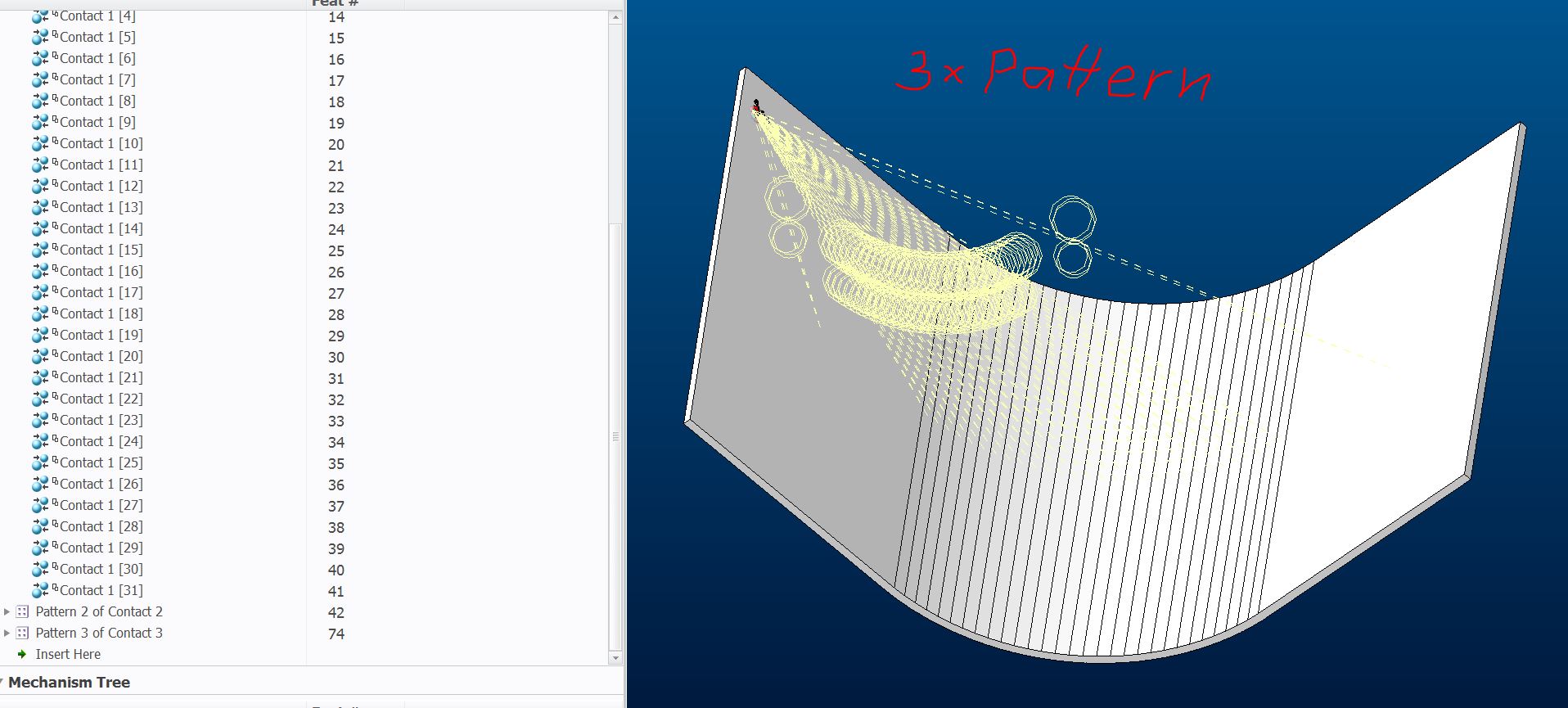

3 Spheres as pattern.

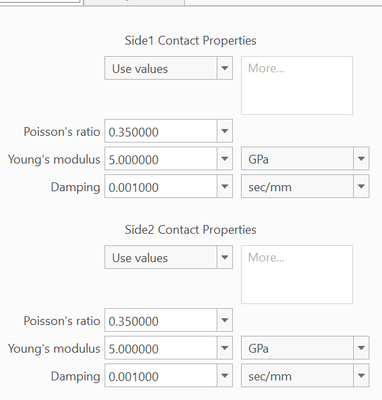

3 different contact definitions, patterned over spheres. (contact_flat,contact_cylinder,contact_flat2)

change Mu_DY in one location as parameter.

This can easily change to as many spheres as we want because all contacts update automatically.



I use spheres patterned on approximate curves to create any arbitrary 3D contact shape I want.  The pattern is very important to reduce many clicks selecting contact pairs.

Of course the more spheres, the longer the simulation, hence for this only 3 spheres.



note: torroid contact to cylinder was not allowed.

also, I added spin to initial condition.

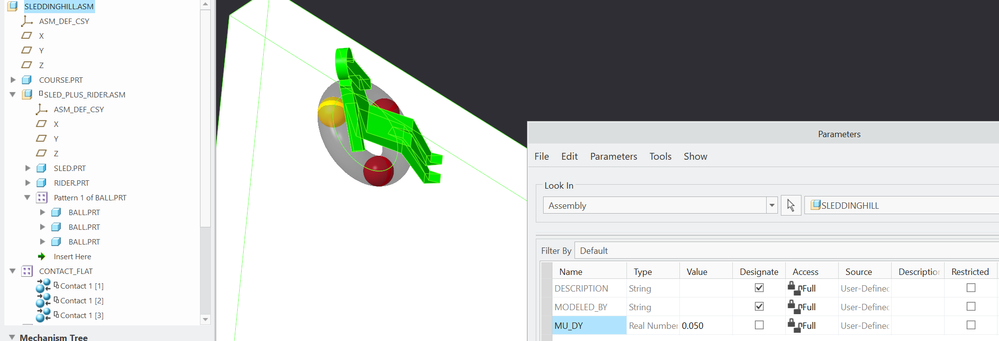

Note model tree as well as parameter window.

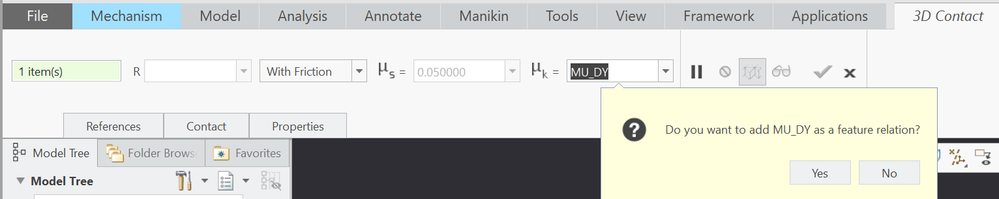

click yes to add as relation,


Re: QUIZ: Slide

exactly

info (german)




Re: QUIZ: Slide


Re: QUIZ: Slide

example

(view in My Videos)

Re: QUIZ: Slide

"little" example





Re: QUIZ: Slide

Re: QUIZ: Slide

Re: QUIZ: Slide

another simulation in MDO



(view in My Videos)
