DEFAULT_CALLOUT_FORMAT_DATA

[TA_10763298]

I am using Creo Parametric Release 10.0 and Datecode10.0.1.0

Tapered threads do not show up in the dialog box once I add a DEFAULT_CALLOUT_FORMAT_DATA to the hol.-file.
The hol.-file has previously worked in Creo 8

[TA_10763298]

I have attached the hol.-file.

Does anybody know why the thread does not show up in the dialog box once I add a DEFAULT_CALLOUT_FORMAT_DATA to the hol.-file?
Everything has been done according to:
Formatting Thread Notes (ptc.com)

Thanks in advance.

[MartinHanak · Accepted solution]

Hi,

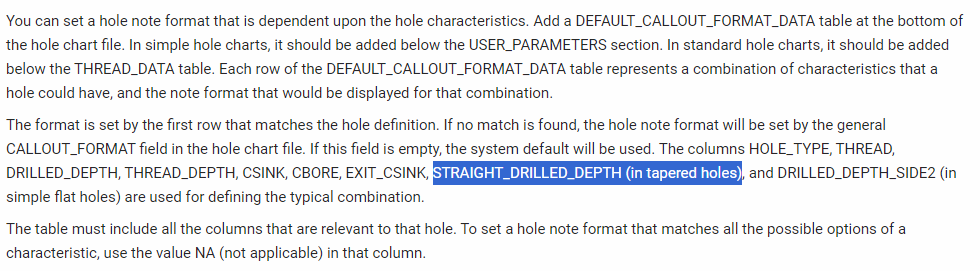

you have to add STRAIGHT_DRILLED_DEPTH token into DEFAULT_CALLOUT_FORMAT_DATA section.

https://support.ptc.com/help/creo/creo_pma/r11.0/usascii/index.html#page/part_modeling/part_modeling/Thread_Notes.html

[Mahesh_Sharma]

Hi @TA_10763298

As @MartinHanak mentioned, add STRAIGHT_DRILLED_DEPTH in Callout format. Tested the same and it is working well with your file.

Same file was working well without STRAIGHT_DRILLED_DEPTH in previous versions however starting from Creo 11.0 it failed to load due to strict validation of file.

Thanks.

[Mahesh_Sharma]

Hello @TA_10763298

Did you get a chance to test the suggestion?

Thanks

[TA_10763298]

Yes, it works well with my file now.

Thank you for the help!
