Finding roundoff values in drawing.

DD_9618373
4-Participant

Finding roundoff values in drawing.

I am using Creo Parametric Release 4.0 and DatecodeM110

Having issue to find several number of roundoff values in drawing annotation for huge size drawing sheets.

4 REPLIES 4

Hi,

please provide more details.


Martin Hanák

Hi Martin,

Requirements:

Have to find and rectify the Round off dimension values for example dimension value in drawing as 12.65 but in drawing round off value as 13 for the same dimension, Similar there are 400 number of dimension in the drawing. how to find those round off modified dimension values easily by model check or any solution of creo customization method for find this round off values.

Kindly provide your suggestion.



Thanks!

Vishnu



StephenW
23-Emerald II
(To:DD_9618373)

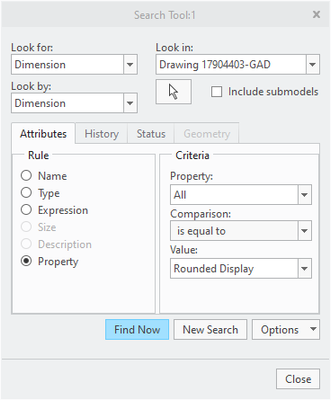

Find tool:






Hi,

just additional note...



It is important where dimensions are saved.

d# ... in model (Include submodels options must be selected)

ad# ... in model (Include submodels options must be selected)

add# ... in drawing




Martin Hanák
