How to scale in and scale out 3D images on triggering visible function

SOLVED
Highlighted
Regular Member

How to scale in and scale out 3D images on triggering visible function

 Is it done by Javascript or can CSS animations be applied to 3D images

1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted

Re: How to scale in and scale out 3D images on triggering visible function

Hi @Ace_Rothstein ,



I review the video link what you mentioned in your post. Unfortunately I do not know exactly how it was exactly implemented  here  , but I think this effect could be done by moving the 3dImage widget e.g. in Z direction and scaling the 3dImage at the same. time.

I did test it in a simple project, and I think it works.

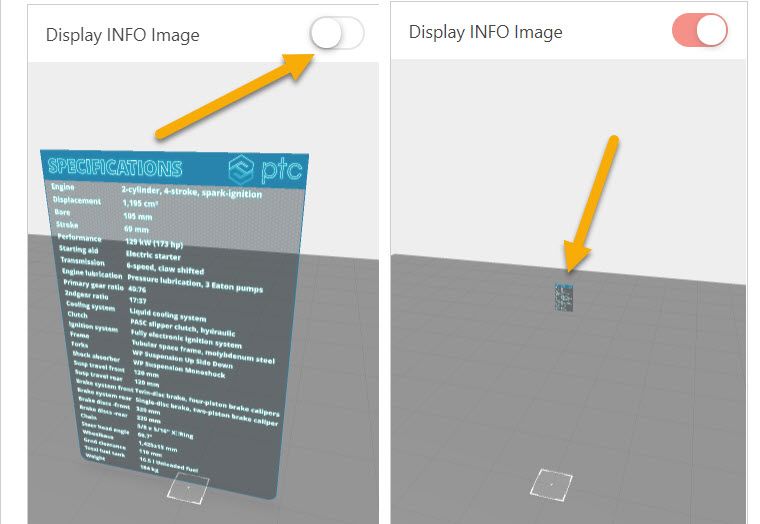

So have only 2 widgets 3DImage-1 Widget and toggle-1 Widget. So, I used the click event of the toggle to FlyIn and FlyOut effect. It is not perfect but works.

I used the following code:





//===============================
////
var zMax=2
var zMin=0
var dist = zMax - zMin

var moveTime=2000 //ms
var moveTimeStep=10 //ms
var distInt= dist/(moveTime/moveTimeStep)
var scaleFactor =0.92
var scaleMax=0.3
var scaleMin =  scaleMax *( Math.pow(scaleFactor,(moveTime/moveTimeStep)))

//===============================
$scope.app.FlyIn  = function(){
console.log("called app.FlayIn()")
$scope.setWidgetProp('3DImage-1', 'z',-zMax)
$scope.setWidgetProp('3DImage-1', 'scale',scaleMin)
$scope.setWidgetProp('3DImage-1', 'visible',true)
$scope.setWidgetProp('toggle-1', 'disabled',true)
var tt = setInterval(function(){  $scope.startFlayIn() }, moveTimeStep);
setTimeout(function() { clearInterval(tt);
                      $scope.setWidgetProp('3DImage-1', 'visible',true)
                      $scope.setWidgetProp('3DImage-1', 'scale',scaleMax)
                      $scope.setWidgetProp('toggle-1', 'disabled',false)
                      }, moveTime);

}
//===============================
$scope.app.FlyOut = function(){
console.log("called app.FlayOut()")
$scope.setWidgetProp('3DImage-1', 'z',  zMin)
$scope.setWidgetProp('3DImage-1', 'scale', scaleMax)
$scope.setWidgetProp('3DImage-1', 'visible',true)
$scope.setWidgetProp('toggle-1', 'disabled',true)
var tt = setInterval(function(){  $scope.startFlayOut() },moveTimeStep);
setTimeout(function() { clearInterval(tt);
                      $scope.setWidgetProp('3DImage-1', 'visible',false)
                      $scope.setWidgetProp('toggle-1', 'disabled',false)
                      }, moveTime);
}
//===============================
$scope.app.ClickAction = function(){
if($scope.view.wdg['toggle-1']['value']==false) $scope.app.FlyIn();
 else
 $scope.app.FlyOut();
}

/////////////////////////
 $scope.startFlayOut = function(){

  var newVal= parseFloat($scope.view.wdg['3DImage-1']['z']) -distInt
  $scope.setWidgetProp('3DImage-1', 'z', parseFloat(newVal))

  var newScale= parseFloat($scope.view.wdg['3DImage-1']['scale'])*scaleFactor
  $scope.setWidgetProp('3DImage-1', 'scale', parseFloat(newScale))
  $scope.$applyAsync()

}
//=============================
/////////////////////////
 $scope.startFlayIn = function(){
  var newVal= parseFloat($scope.view.wdg['3DImage-1']['z']) +distInt
  $scope.setWidgetProp('3DImage-1', 'z', parseFloat(newVal))
  var newScale= parseFloat($scope.view.wdg['3DImage-1']['scale'])/scaleFactor
  $scope.setWidgetProp('3DImage-1', 'scale', parseFloat(newScale))
  $scope.$applyAsync()
}



I attached also the test project

View solution in original post

3 REPLIES 3
Highlighted

Re: How to scale in and scale out 3D images on triggering visible function

Can you describe your use case in detail?

Highlighted

Re: How to scale in and scale out 3D images on triggering visible function

In the example mentioned here: (https://www.youtube.com/watch?v=ERa8sN837h0. ) Half way in the middle of the experience, there is an effect added to the 3D images which makes it appear to scale up after triggering some button.

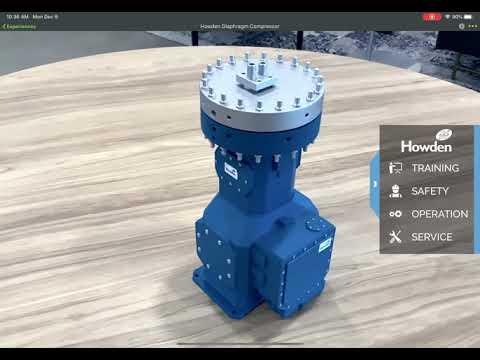

Howden, a leading industrial engineering company, used IIoT and augmented reality (ThingWorx and Vuforia) to create a digital twin of their diaphragm compres...
Tags (1)
Highlighted

Re: How to scale in and scale out 3D images on triggering visible function

Hi @Ace_Rothstein ,



I review the video link what you mentioned in your post. Unfortunately I do not know exactly how it was exactly implemented  here  , but I think this effect could be done by moving the 3dImage widget e.g. in Z direction and scaling the 3dImage at the same. time.

I did test it in a simple project, and I think it works.






So have only 2 widgets 3DImage-1 Widget and toggle-1 Widget. So, I used the click event of the toggle to FlyIn and FlyOut effect. It is not perfect but works.

I used the following code:





//===============================
////
var zMax=2
var zMin=0
var dist = zMax - zMin

var moveTime=2000 //ms
var moveTimeStep=10 //ms
var distInt= dist/(moveTime/moveTimeStep)
var scaleFactor =0.92
var scaleMax=0.3
var scaleMin =  scaleMax *( Math.pow(scaleFactor,(moveTime/moveTimeStep)))

//===============================
$scope.app.FlyIn  = function(){
console.log("called app.FlayIn()")
$scope.setWidgetProp('3DImage-1', 'z',-zMax)
$scope.setWidgetProp('3DImage-1', 'scale',scaleMin)
$scope.setWidgetProp('3DImage-1', 'visible',true)
$scope.setWidgetProp('toggle-1', 'disabled',true)
var tt = setInterval(function(){  $scope.startFlayIn() }, moveTimeStep);
setTimeout(function() { clearInterval(tt);
                      $scope.setWidgetProp('3DImage-1', 'visible',true)
                      $scope.setWidgetProp('3DImage-1', 'scale',scaleMax)
                      $scope.setWidgetProp('toggle-1', 'disabled',false)
                      }, moveTime);

}
//===============================
$scope.app.FlyOut = function(){
console.log("called app.FlayOut()")
$scope.setWidgetProp('3DImage-1', 'z',  zMin)
$scope.setWidgetProp('3DImage-1', 'scale', scaleMax)
$scope.setWidgetProp('3DImage-1', 'visible',true)
$scope.setWidgetProp('toggle-1', 'disabled',true)
var tt = setInterval(function(){  $scope.startFlayOut() },moveTimeStep);
setTimeout(function() { clearInterval(tt);
                      $scope.setWidgetProp('3DImage-1', 'visible',false)
                      $scope.setWidgetProp('toggle-1', 'disabled',false)
                      }, moveTime);
}
//===============================
$scope.app.ClickAction = function(){
if($scope.view.wdg['toggle-1']['value']==false) $scope.app.FlyIn();
 else
 $scope.app.FlyOut();
}

/////////////////////////
 $scope.startFlayOut = function(){

  var newVal= parseFloat($scope.view.wdg['3DImage-1']['z']) -distInt
  $scope.setWidgetProp('3DImage-1', 'z', parseFloat(newVal))

  var newScale= parseFloat($scope.view.wdg['3DImage-1']['scale'])*scaleFactor
  $scope.setWidgetProp('3DImage-1', 'scale', parseFloat(newScale))
  $scope.$applyAsync()

}
//=============================
/////////////////////////
 $scope.startFlayIn = function(){
  var newVal= parseFloat($scope.view.wdg['3DImage-1']['z']) +distInt
  $scope.setWidgetProp('3DImage-1', 'z', parseFloat(newVal))
  var newScale= parseFloat($scope.view.wdg['3DImage-1']['scale'])/scaleFactor
  $scope.setWidgetProp('3DImage-1', 'scale', parseFloat(newScale))
  $scope.$applyAsync()
}



I attached also the test project

View solution in original post
