Data Model Implementation Guide Part 2

No ratings

Data Model Implementation Guide Part 2



Step 4: SystemConnector Thing Template

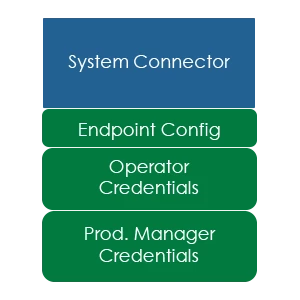

After grouping our second set of common functionality and information, we came up with the list below for the second Thing Template to create, SystemConnector with 3 Properties. The breakdown for the SystemConnector Thing Template is as follows:




Follow the below instruction to create this Entity and get the implementation phase of your development cycle going.



System Connector Properties



Let's jump right in.

  1. In the ThingWorx Composer, click the + New at the top of the screen.
      Step 4 System Connector Properties Step 1.png

2. Select Thing Template in the dropdown.

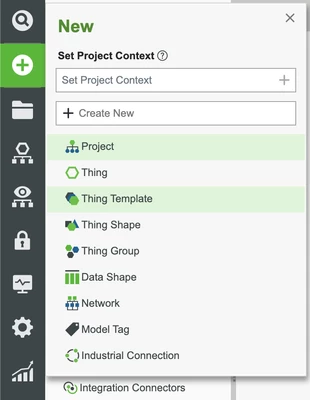

Step 4 System Connector Properties Step 2.png

3. In the name field, enter SystemConnector and select a Project (ie, PTCDefaultProject).

4. For the Base Thing Template field, select GenericThing.

5. Click Save.

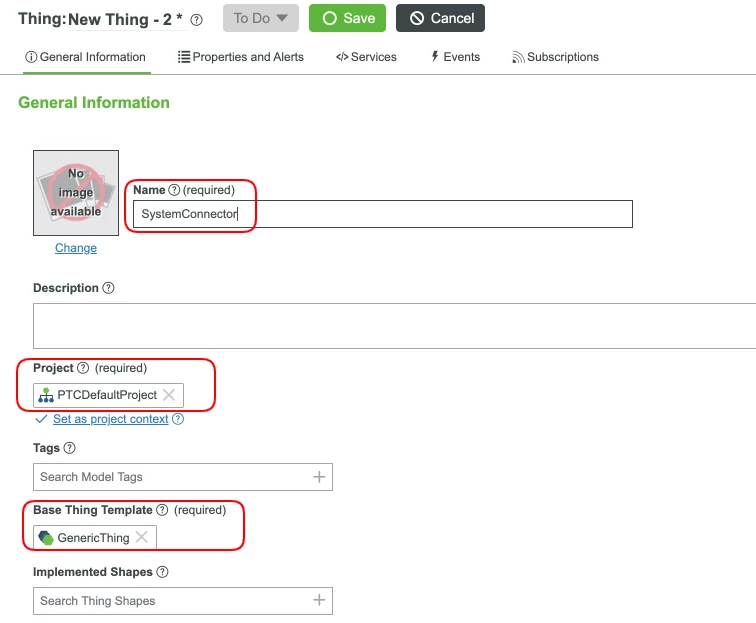

Step 4 System Connector Properties Step 5.png

6. Switch to the Properties and Alerts tab.

7. Click the plus button to add a new Property.



The Properties for the SystemConnector Thing Template are as follows:

Name

Base Type

Aspects

Data Change Type

EndPointConfig

String

Persistent and Logged

VALUE

OperatorCredentials

PASSWORD

Persistent

VALUE

ProdManagerCredentials

PASSWORD

Persistent

VALUE

Follow the next steps for all the Properties shown in our template property table.

  1. Click Add.
  2. Enter the name of the property (ie, EndPointConfig).
  3. Select the Base Type of the proprty from the dropdown.
  4. Check the checkboxes for the property Aspects.
  5. Select the Data Change Type from the dropdown.

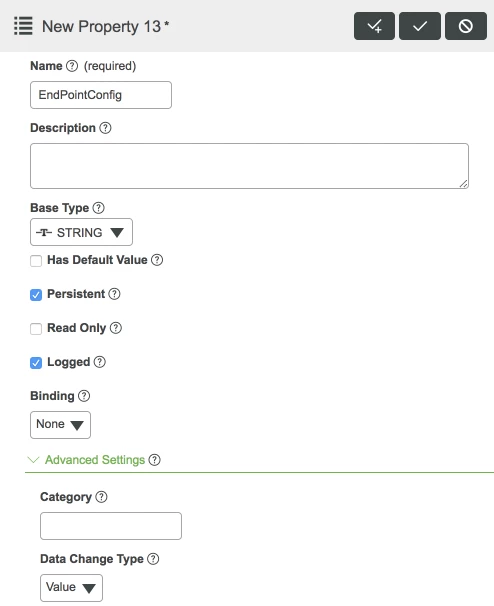

    Step 4 Table Step 5.png



  6. Click Done when finished creating the property.

Your Properties should match the below configurations.

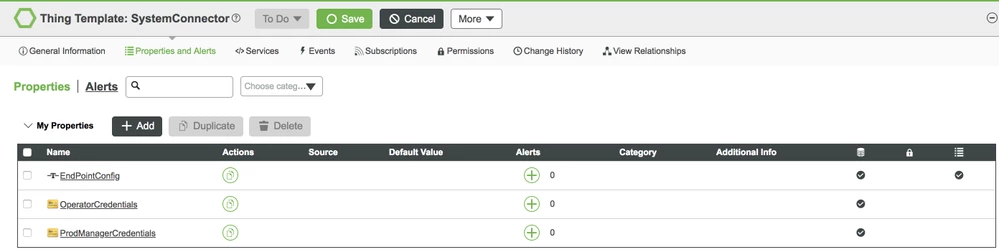

      Step 4 Last Image.png





Step 5: HazardousAsset Thing Template

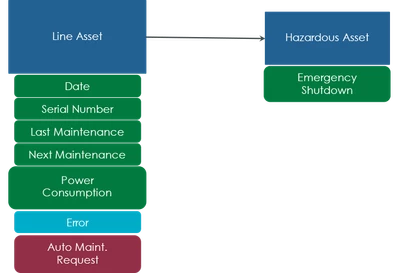

After another round of prioritizing and grouping common functionality and information, we came up with the third Thing Template to create, HazardousAsset. It is a child of the LineAsset Thing Template with one added Service. The breakdown for the HazardousAsset Thing Template is as follows:




Hazardous Asset Service



  1. In the ThingWorx Composer, click the + New at the top of the screen.

Step 5 Step 1.png

2. Select Thing Template in the dropdown.

Step 5 Step 2.png

3. For the Base Thing Template field, select LineAsset and select a Project (PTCDefaultProject).

4. In the name field, enter HazardousAsset.

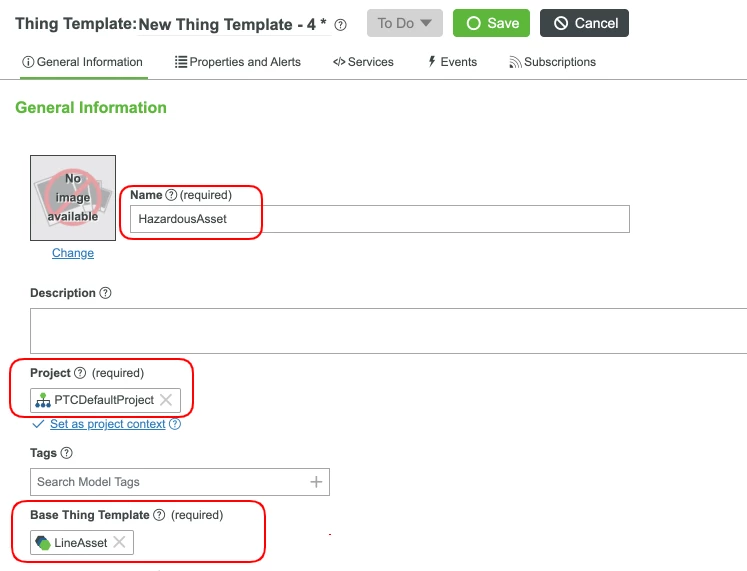

Step 5 Step 4.png

5.  Click Save then edit to store all changes now.

6.  Switch to the Services tab.

7.  Click Add.

8.  Enter EmergencyShutdown as the name of the service.

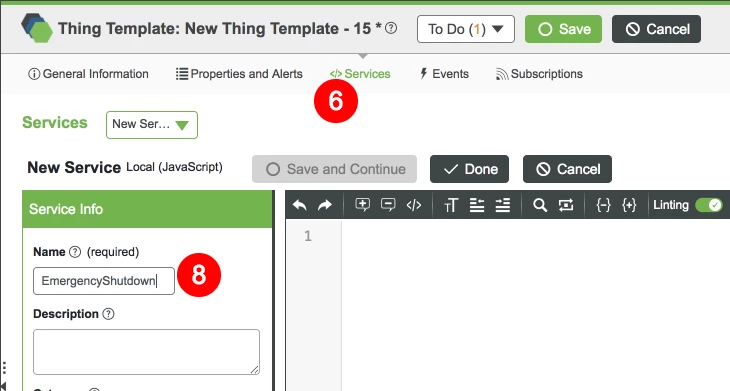

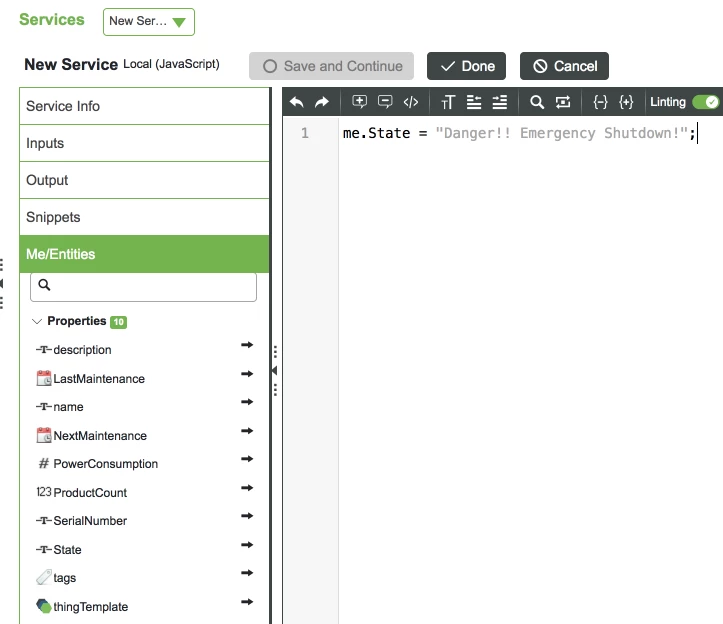

Step 5 Step 8.png

9. Switch to the Me/Entities tab.

10. Expand Properties.

11. Click the arrow next to the State property.

12. Modify the generated code to match the following:







me.State = "Danger!! Emergency Shutdown";







Your first Service is complete!

13. Click Done.

14. Click Save to save your changes.

Your Service should match the below configurations.






Step 6: InventoryManager Thing Shape



This time around, we will create our first ThingShape, InventoryManager with 1 Property. The breakdown for the InventoryManager Thing Shape is as follows:




Follow the below instruction to create this Entity and get the implementation phase of your development cycle going.

System Connector Properties

The properties for the InventoryManager Thing Shape are as follows:

Name

Base Type

Aspects

Data Change Type

ProductCount

INTEGER Min Value:0

Persistent and Logged

ALWAYS

  1. In the ThingWorx Composer, click the + New at the top of the screen.

    Step 6 System Connector Properties Step 1.png

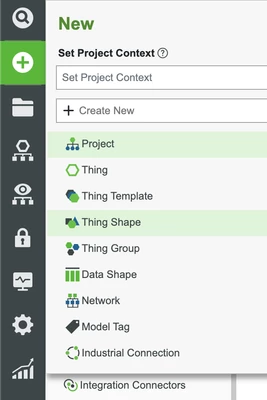

  2. Select Thing Shape in the dropdown.

    Step 6 System Connector Properties Step 2.png

  3. In the name field, enter InventoryManager and select a Project (ie, PTCDefaultProject).

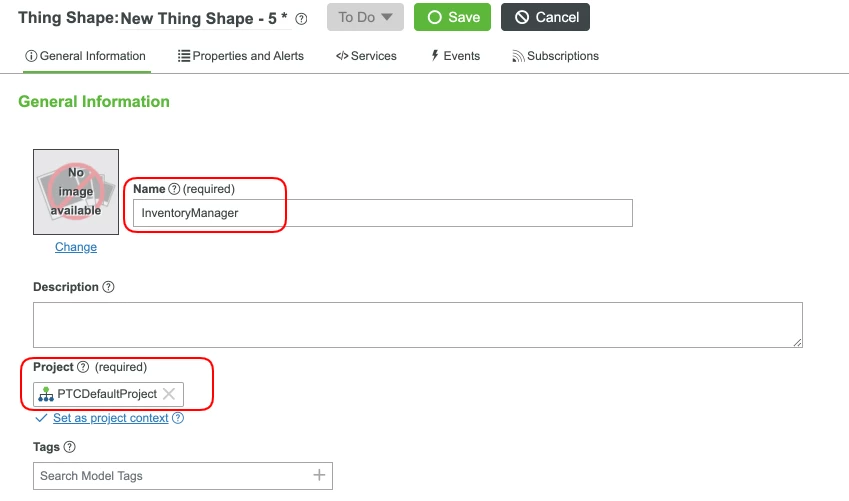

      4. Click Save then Edit to store all changes now.IoTProductMgmt_15-1659126751204.png



      5. Switch to the Properties tab.

      6. Click Add.

      7. Enter ProductCount as the name of the property.

      8. Select the Base Type of the proprty from the dropdown (ie, INTEGER).

      9. Check the checkboxes for the property Aspects.

     10. Select the Data Change Type from the dropdown.

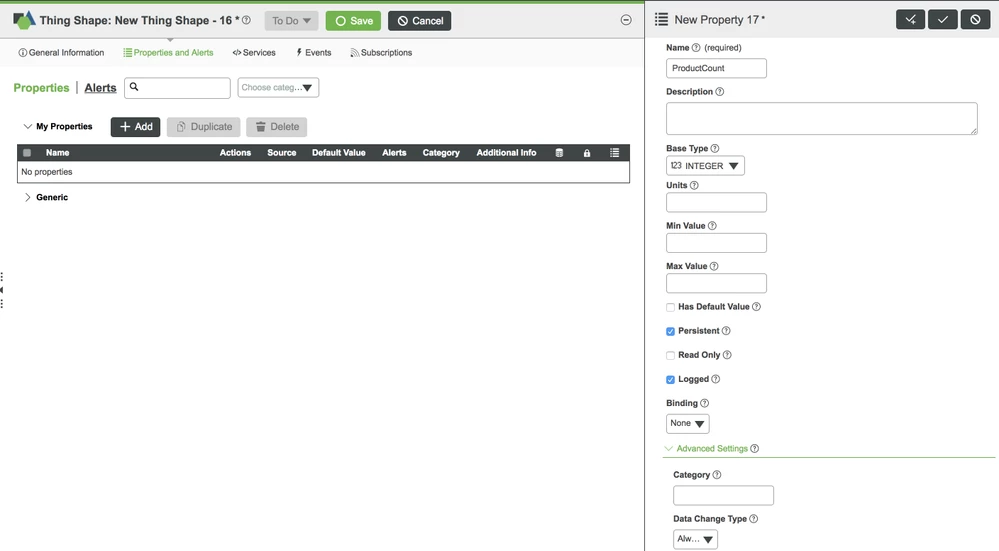

     Step 6 System Connector Properties Step 10.png
     11. Click Done when finished creating the property.

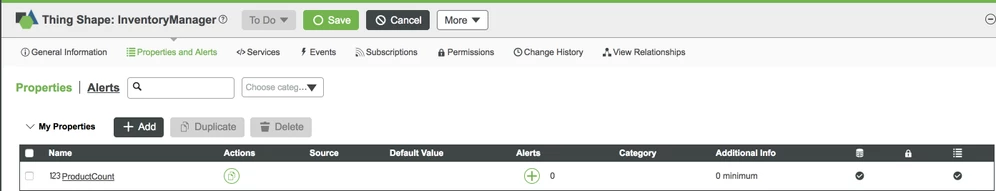

Your Properties should match the below configurations.




Add Thing Shape to Template



We can see that there is some overlap in the components of our HazardousAsset and LineAsset ThingTemplates. In particular, both want information about the product count. Because HazardousAsset inherits from LineAsset, would only need to change LineAsset. Follow the steps below to perform this change:

  1. Open the LineAsset Thing Template.
  2. In the Implemented Shapes field, enter and select InventoryManager.
  3. Save changes.

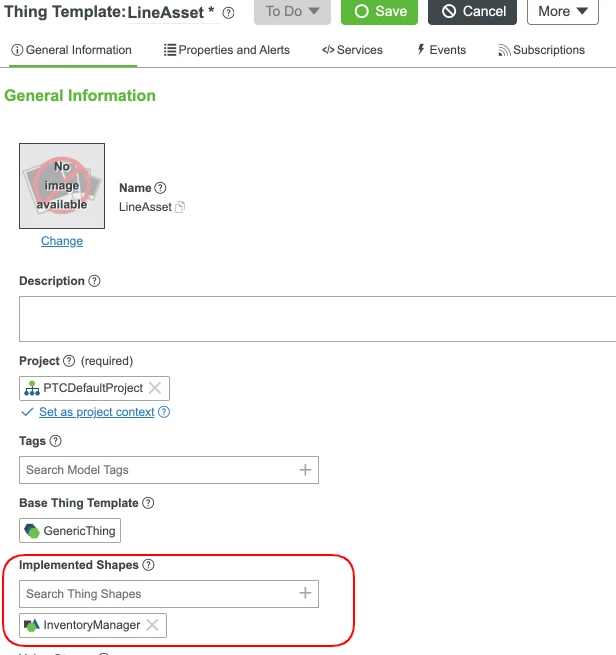

     Step 6 Last Image.png



Click here to view Part 3 of this guide.
