Question

Is there a way to fill the hole?

  • October 21, 2014
  • 9 replies
  • 25638 views

Hi, In creo is there a way to fill the hole? see the attachment.Thanks!QQ%E5%9B%BE%E7%89%8720141021093908.png

    9 replies

    14-Alexandrite
    October 21, 2014

    I tried wth Flex, it didn't like it.

    bduncan17-PeridotAuthor
    17-Peridot
    October 21, 2014


    bduncan17-PeridotAuthor
    17-Peridot
    October 21, 2014


    1-Visitor
    October 21, 2014

    Sure, but you have to tell creo how to treat the inner volume.

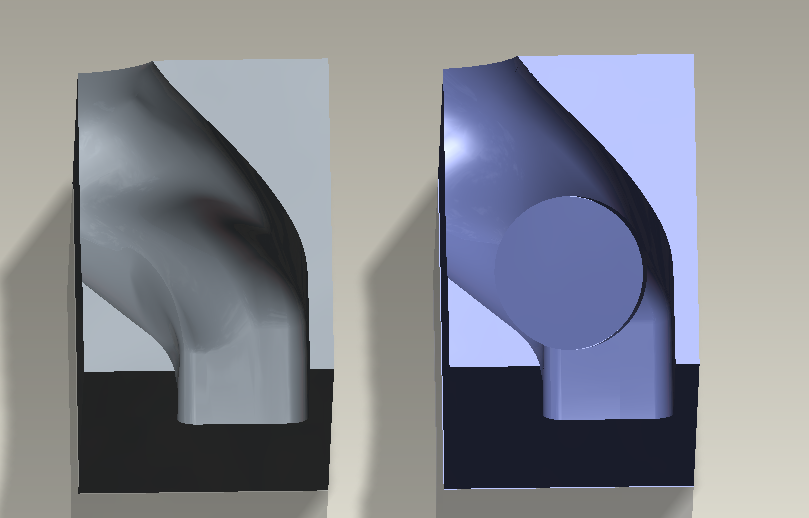

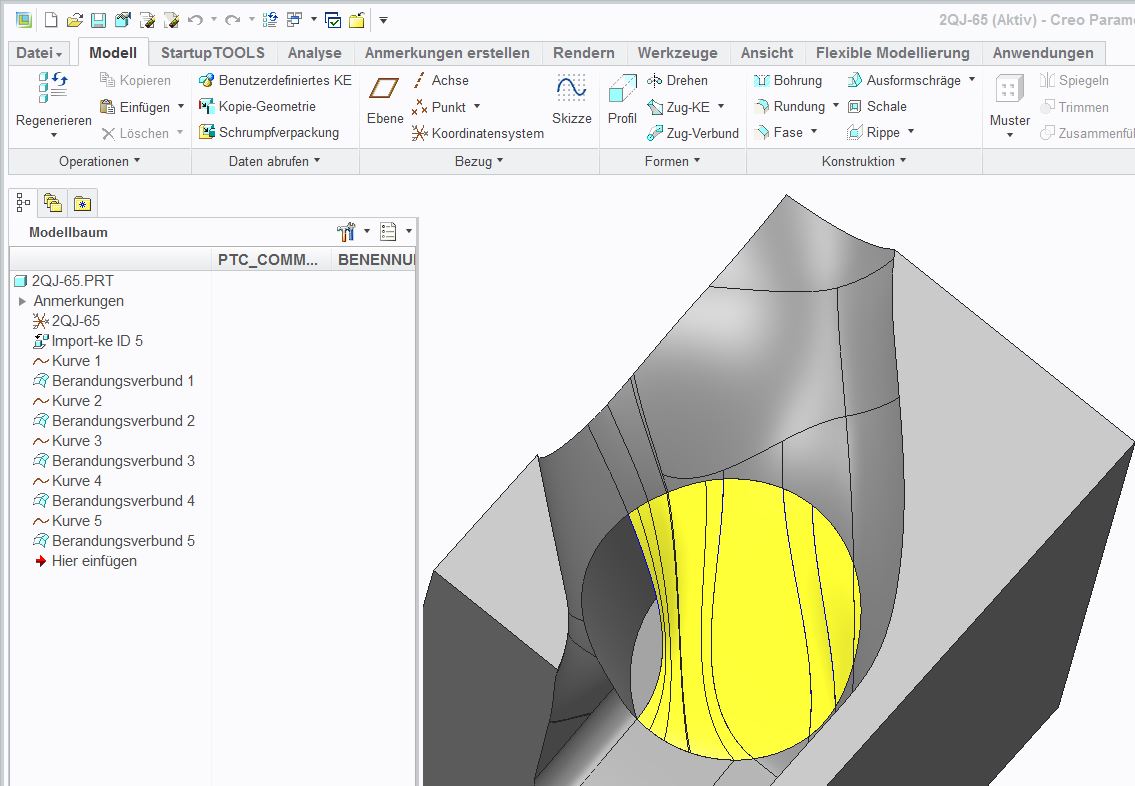

    See one possibility in the attached video.

    Video Link : 5378

    (Sorry, it seems as if I'm to stupid to insert a video.)

    bduncan17-PeridotAuthor
    17-Peridot
    October 22, 2014

    THANKS! But it looks very distorted.

    1-Visitor
    October 22, 2014

    As written, it depends on what you "tell" creo to treat the inner volume.


    See attached example (not finished).

    16-Pearl
    October 22, 2014

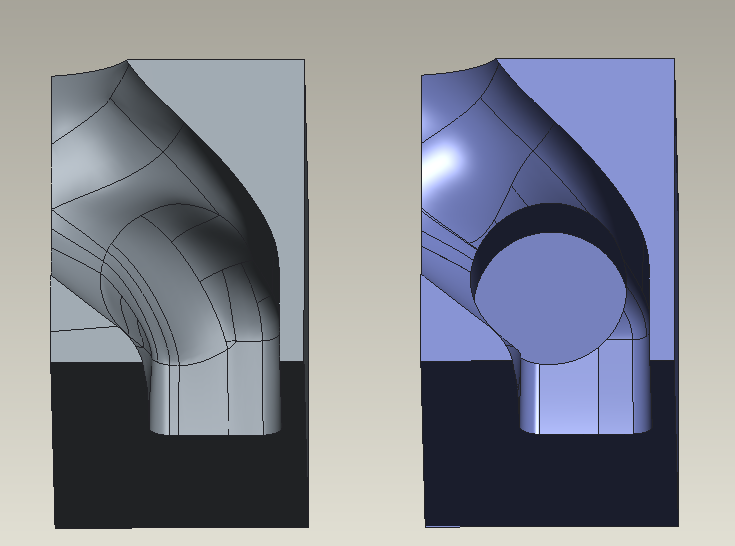

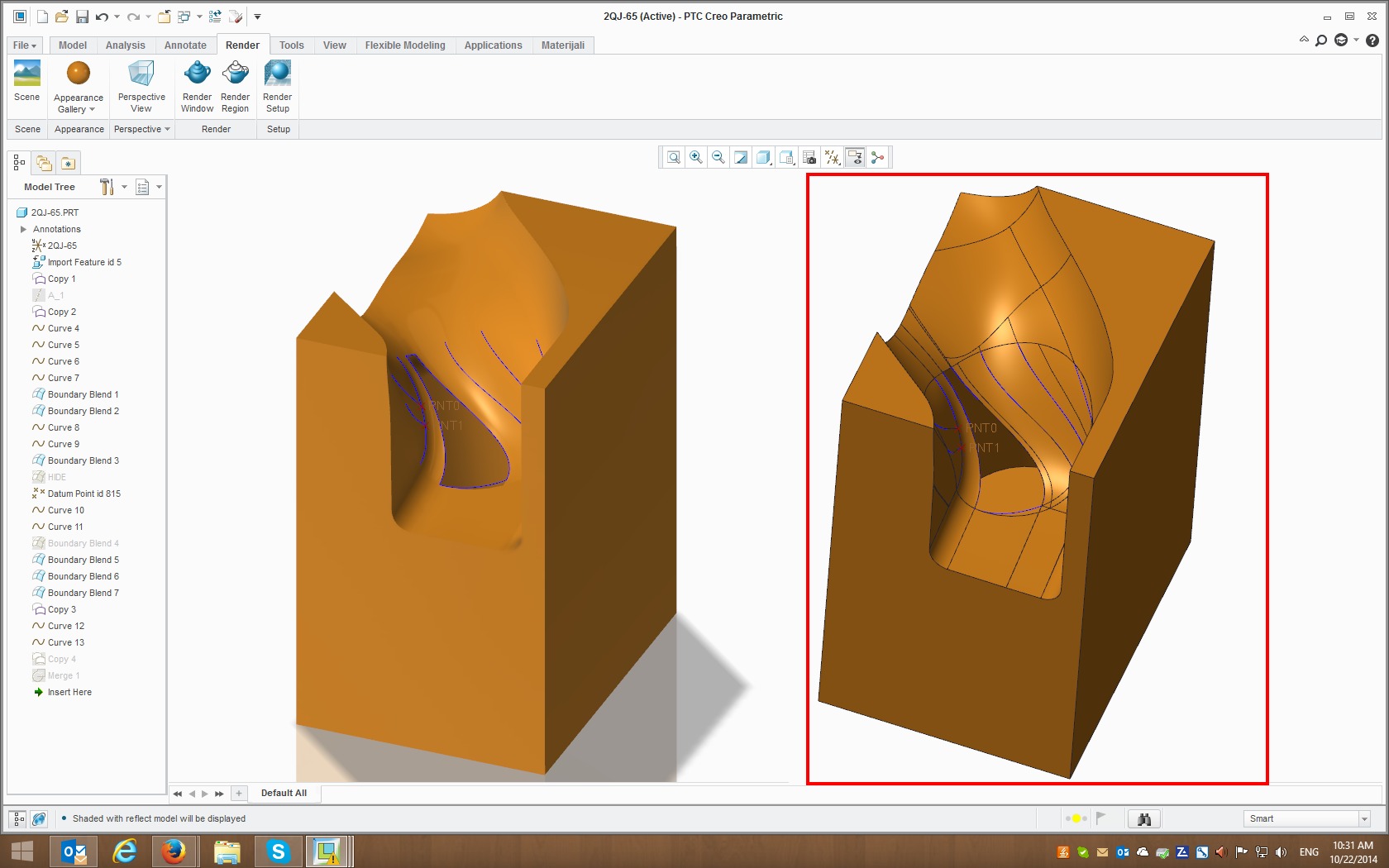

    My attempt.

    Meh, lost my nerve near the end so if you can finish it cool.

    Btw in Creo 3 we can fill holes when copying quilt but not that complex.

    NX fill is real nice but in this case still gives less then perfect fill.


    17-Peridot
    October 22, 2014

    I was trying to something similar but ran into problems knowing what connected to what.

    15-Moonstone
    October 23, 2014

    did you try the n sided patch option?

    12-Amethyst
    October 22, 2014

    NX seems to be great doing that. Hope some day have tools like that in Creo.

    bduncan17-PeridotAuthor
    17-Peridot
    October 23, 2014

    Hope Creo 4.0 will give us a big surprise It's time to enhance Creo surface capability, What are you waiting for,PTC?

    15-Moonstone
    October 24, 2014

    ok this is done in creo 2.0 student edition.....i have attached the step file also


    bduncan17-PeridotAuthor
    17-Peridot
    October 24, 2014

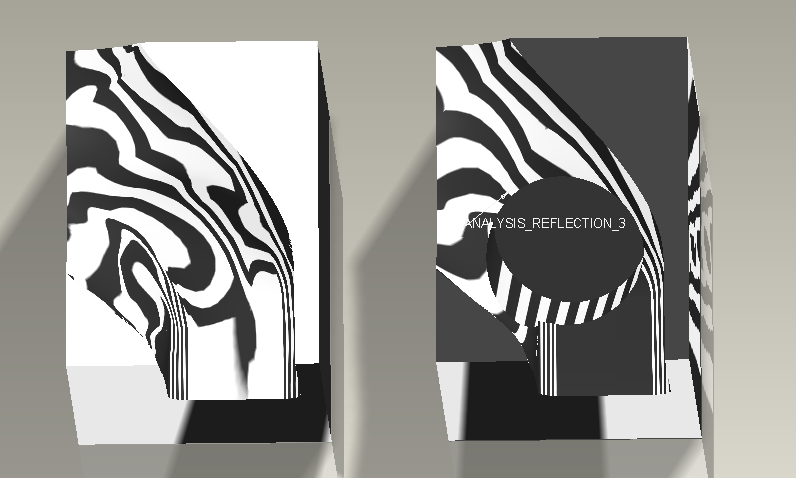

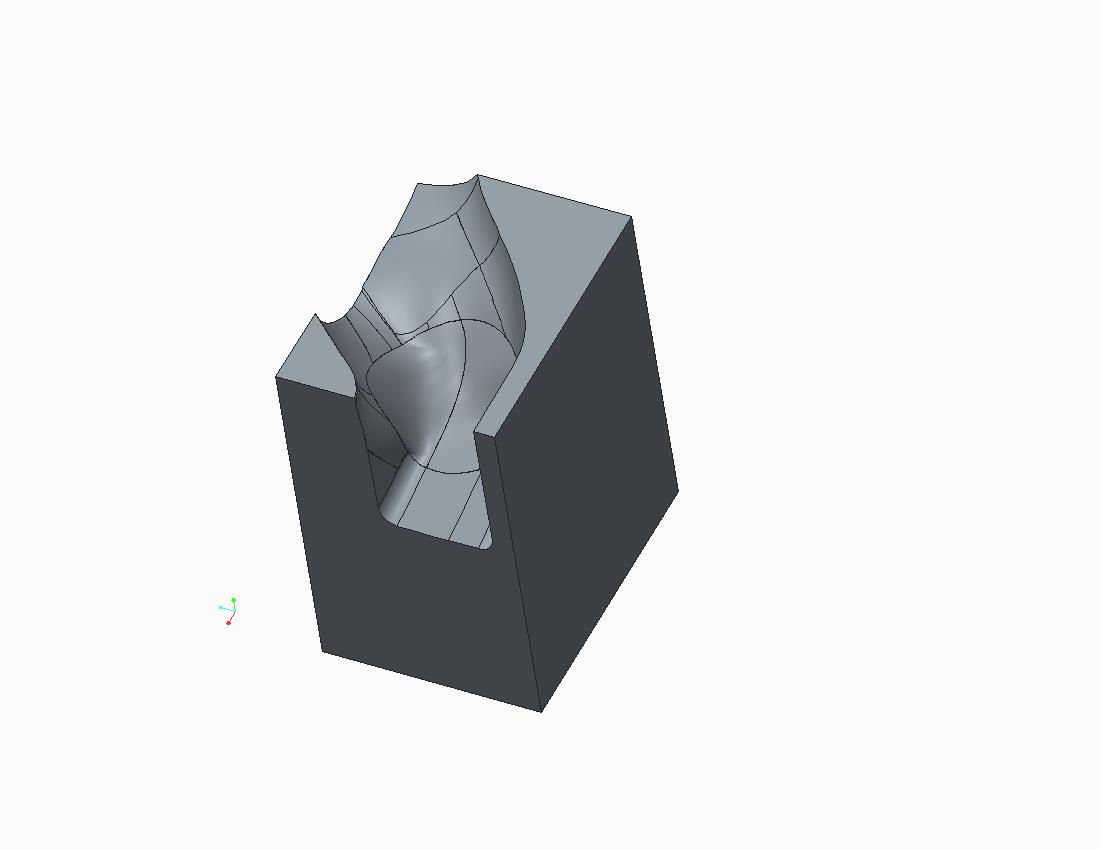

    But not tangentQQ%E5%9B%BE%E7%89%8720141024152531.jpgQQ%E5%9B%BE%E7%89%8720141024152609.jpg

    15-Moonstone
    October 24, 2014

    consider this as the first step...since creo does not have a specific tool like in nx..

    the good thing is..it took very less steps.

    1-Visitor
    October 26, 2014

    I have no excellent skills in ISDX module, but i reach a complete filling of entire surface with tangency continuity. I rebuild surfaces. Expecially near the hole, geometry was very poor. IDD isn't a perfect solution. I think that for guys of reverse enginering filling this hole is a joke. Sure it's not a 2 click work as in other software. I attach Creo2 and STEP file. There are little distorsions on my work, but i'm not a specialist.


    12-Amethyst
    October 29, 2014

    Solidworks and NX both use Parasolid Kernel, maybe this is a limitation of Granite?

    bduncan17-PeridotAuthor
    17-Peridot
    October 30, 2014

    I don't think so,In advanced surface,Creo is weak compared with NX.Creo just provide IDD TOOL to fix input data(igs/step).It's a limited capabilities tool. From Proe to Creo ,do you see the advanced surface be enhanced?

    1-Visitor
    October 30, 2014

    I understand what you are getting at. People should not use Creo and should use NX or Solidworks because those programs are better in every way.

    1-Visitor
    October 30, 2014

    I see this thread as a way to show that some competitors of PTC are doing better productivity wise in this particular example.

    I certainly don't doubt Creo more than I did before reading this thread.

    One thing that I always tell my colleagues is if you only know one CAD software then you will become a toast one day.

    1-Visitor
    October 30, 2014

    Seeing how other software functions is interesting.

    This case is a test of the ability of software to handle an unusual case where the geometry has been purposely damaged, but the user doesn't have enough information to recreate the part independently. A few people might have this happen as part of their work, but I would not want an expensive software development effort to fix a problem few people have when there are more universal enhancements to be made.**

    If someone brought a metal mold with this complex curvy channel into a machine shop and then bored a big hole in the middle, what would the expectation be of repairing it?

    This question boils down to - can software make a surface the user could not create on their own? I think it is interesting that other programs may be able to handle this problem, but it's not a problem Creo Parametric was designed to fix.

    I note, for example, that Creo Parametric doesn't handle draped fabric very well and it doesn't have a Compositor for video or a non-linear video editor. All of these come free with Blender, but it is unlikely for PTC to build all these features into Creo Parametric.

    It's good to know that using NX or Solidworks is an alternative when managing damaged surfaces. It's not good to complain as if there is no cost to developing a means to resolve this or that it is a software sales driver. Maybe there's a lot of demand for repairing overly-patched surfaces, but I think it is as much as there is repairing brutally damaged molds.

    **Yet again, recent post about needing to control part color. First raised before Rev 14, and still not dealt with in a direct manner. The number of items that get different paint colors for different part numbers has got to be more than the number of defective geometry imports that need to be fixed in 2 steps or less, even if the desparation felt by users in the two groups isn't.

    15-Moonstone
    November 6, 2014

    CATIA too does it successfully...

    Step geometry comes in much better
