Solved: Vizualization with no geometry

PetrP · ‎Jan 29, 2020

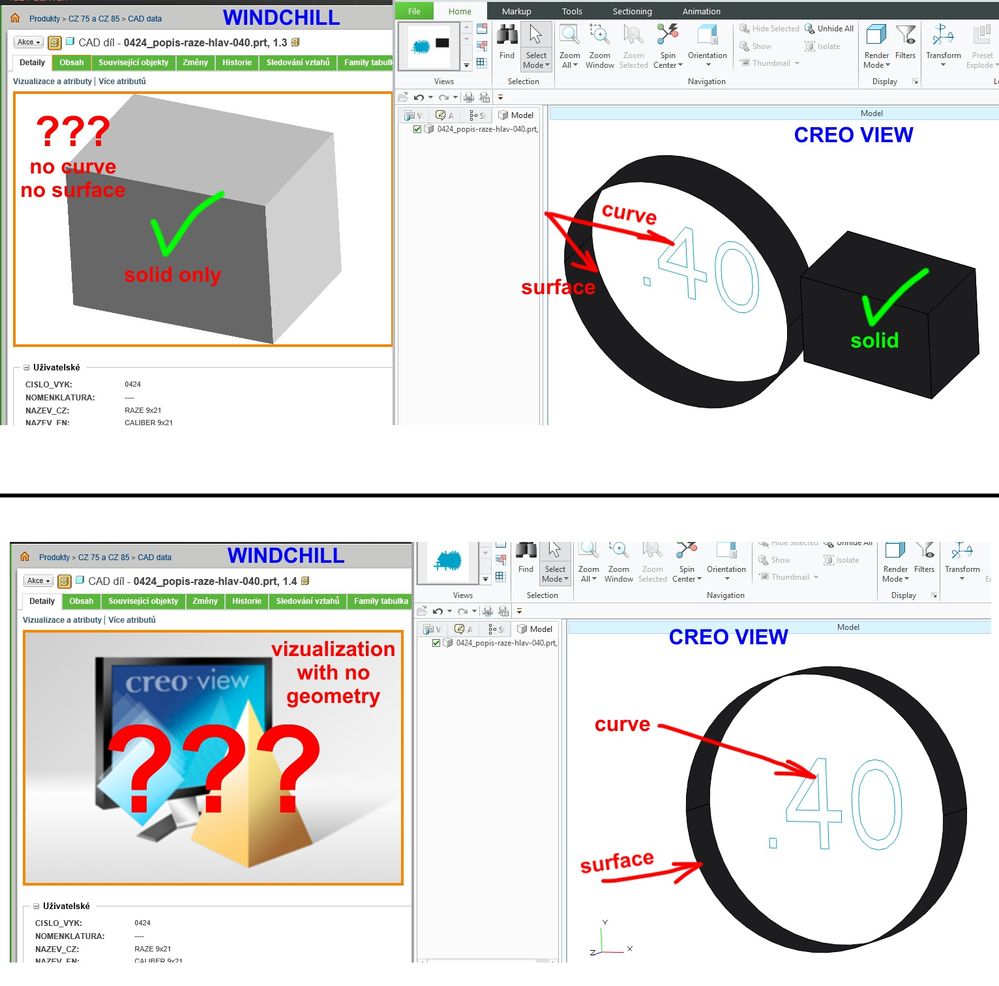

Hola, why unable to see surface or curves on WCH detail page even Creo View can open vizualization OK?

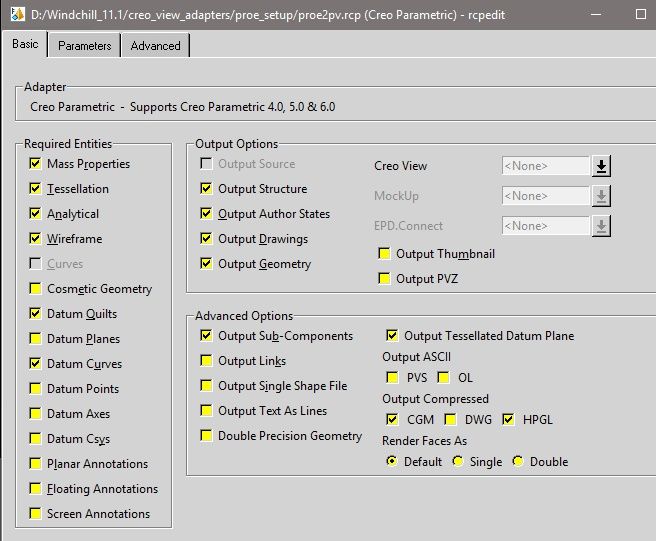

This is my RCP setting on the server (curves and quilts allowed)

Think vizualization is OK so Creo View shows everything but why WCH refusing to show it as well?

vdegaonkar · ‎Feb 04, 2020

Hi

What you view on Windchill Detail page is 2D or 3D thumbnails. For both 2D & 3D thumbnails:

2D geometries (Sketch, Cosmetic\ECAD sketch etc) are not support. they will not show up in thumbnail.
3D solids that are visible are displayed in thumbnails

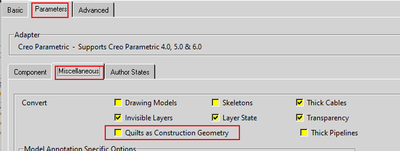

3D surfaces (Quilt geometries) by default get converted as datum entities from Adapter for Creo Parametric (PROE Worker). Datum\Construction geometries are are also not supported for thumbnail generation. One can convert 3D surfaces are quilt geometry by un-checking "Quilts as Construction Geometry"option:

Hope this helps.

View solution in original post

vdegaonkar · ‎Feb 04, 2020

Hi

What you view on Windchill Detail page is 2D or 3D thumbnails. For both 2D & 3D thumbnails:

2D geometries (Sketch, Cosmetic\ECAD sketch etc) are not support. they will not show up in thumbnail.
3D solids that are visible are displayed in thumbnails
3D surfaces (Quilt geometries) by default get converted as datum entities from Adapter for Creo Parametric (PROE Worker). Datum\Construction geometries are are also not supported for thumbnail generation. One can convert 3D surfaces are quilt geometry by un-checking "Quilts as Construction Geometry"option:

Hope this helps.

PetrP · ‎Feb 04, 2020

"Not supported" is not a solution. Think it would be easy to implement when CreoView is able to show it so why not WCH... I have created new WCH idea here
