Export coordinates of multiple coordinate systems

Hello,

I am trying to get a list with the X,Y,Z, and yaw, pitch, roll for coordinate systems that I have patterened across a curved surface. I have not even been able to figure out how to pull the location data for just 1 coordinate system. Can anyone help me on this?

    ysinitsinAnswer
    1-Visitor
    Jun 18, 2013 3:59 PM UTC

    I think, my advice about Excel is not useful in your case.

    Export to text-based file it is more interesting solution. Thanks to Antonius.

    Take a look at Neutral (.neu) file.

    3 id 57613

    3 name CS2

    3 e1 [3]

    4 e1 2*0.,1.

    3 e2 [3]

    4 e2 0.,1.,0.

    3 e3 [3]

    4 e3 -1.,2*0.

    3 origin [3]

    4 origin 0.,1.75,0.707106781186547

    2 coord_systems ->

    e1, e2, e3 - coordinates of the axes (a vectors from the origin).

    You can check this by placing Point - Offset Coordinate System and make the Analysis (Geometry Report - Point)

    I think, "e1 2*0., 1." this is "e1 0., 0., 1."

    View in thread

    10 replies

    TomD.inPDX17-Peridot
    17-Peridot
    Jun 18, 2013 12:56 AM UTC

    Have you tried exporting to various ascii-based formats to see what the data looks like?

    If you wanted to share the file, we could look at it.

    If you can get the data, or at least a subset of it, what did you want to do with it?

    Translate
    ptc-25021201-VisitorAuthor
    1-Visitor
    Jun 18, 2013 12:38 PM UTC

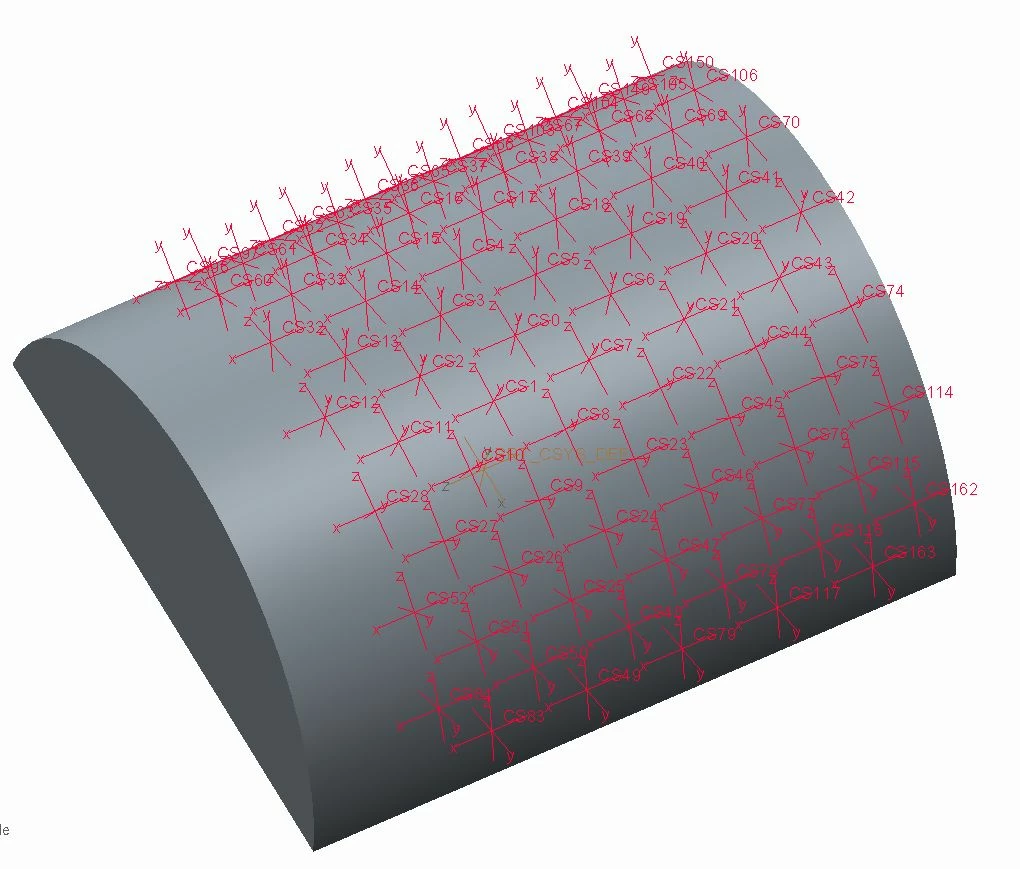

    Here is the part file. I have started with a super simple shape, and I know once I have the location of the first 2 rows, the rest are easy. But eventualy this would be a more complex curve.
