Hole Note Refinement

[wbottis]

Hi Folks,

Using Creo 7.0.8.0

In the 'Shape' sub-tab of the 'hole' modeling feature ribbon, I recall the graphic used to show the tap-drill depth. I don't see this anymore. Nonetheless, is there a way to add drill depth to the note callout properly? This is omitted and only tap-depth is shown. Thank you.

 

 

[BenLoosli]

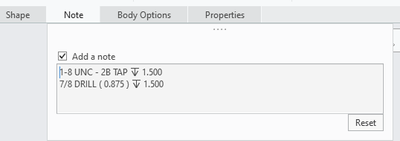

Creo 9.0.9.0 shows what you want for the note, but not graphically.

[pausob]

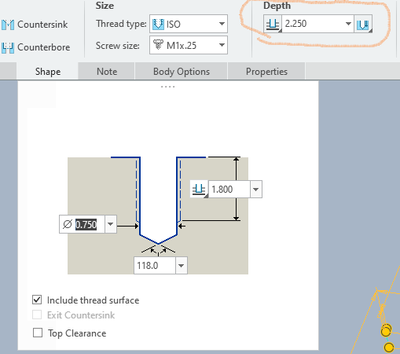

At some point, the GUI changed and now the tap drill depth is specified elsewhere:

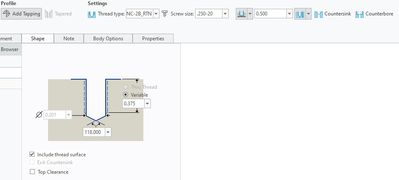

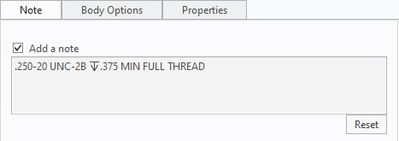

It seems the reason your note doesn't show it is because you are using a custom hole table (UNC-2B_RTN ?) that has a callout definitions that do not display the dap drill depth...

[anursingh]

Hi @wbottis,

I wanted to see if you got the help you needed.

If so, please mark the appropriate reply as the Accepted Solution. It will help other members who may have the same question.
Of course, if you have more to share on your issue, please pursue the conversation.

Thanks,
Anurag
