Toggle Chamfer On/Off with family table

  • September 8, 2014
  • 2 replies
  • 2263 views

I have a part that has some holes that are laser cut by a supplier and then internally to the company, have a chamfer added.

Is there a way in the Hole Tool to toggle on and off the chamfer through family tables so that I can have a vendor supplied part and then a finished part?

Currently, it has been on the same drawing with a note, but scheduling/recieveing is asking for it to be broken out.

Thanks, Dale



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by dgschaefer

I don't think you can toggle a part of a feature on and off. I'd suggest making the holes without the chamfer and adding the chamfer separately with the chamfer feature and toggling that on and off.

Alternately, you could have two hole features, one with and one without the chamfer and switch between them. That would require some careful management to make sure they remain the same if the hole size changed.

2 replies

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald IIIAuthor
23-Emerald III
September 8, 2014

I have found a work around, but would still be interested to know if you can just toggle off the chamfer.

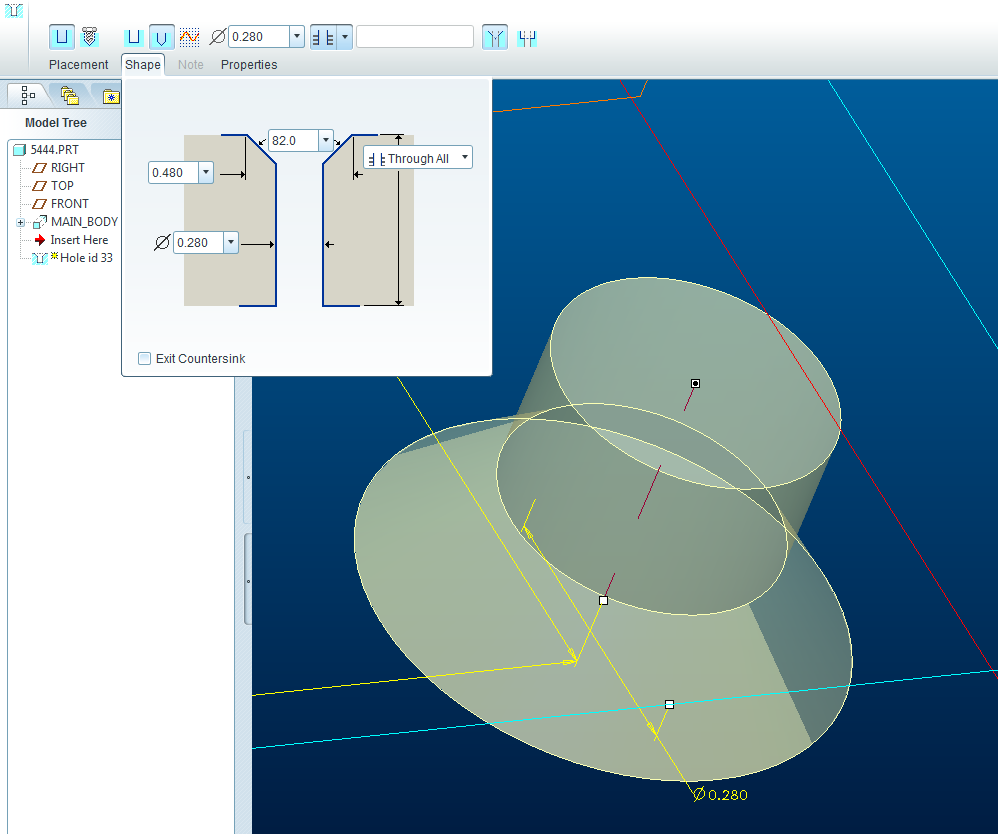

In the family table, I added the dimensions .480 Diameter and 82 degree chamfer. I changed them to .281 diameter and 1 degree chamfer so they are not really noticable. But I'll have to do this for six holes.


D
dgschaefer21-Topaz IIAnswer
21-Topaz II
September 8, 2014

I don't think you can toggle a part of a feature on and off. I'd suggest making the holes without the chamfer and adding the chamfer separately with the chamfer feature and toggling that on and off.

Alternately, you could have two hole features, one with and one without the chamfer and switch between them. That would require some careful management to make sure they remain the same if the hole size changed.

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald IIIAuthor
23-Emerald III
September 8, 2014

Your first suggestion was what I was sort of thinking, but was just check to see if it was possible. The second idea leaves to much to be updated if the feature changes - myself or those that come behind me would have to remember to change both and for that, there is no gaurantee.

D
dgschaefer21-Topaz II
21-Topaz II
September 8, 2014

Yeah, that was my thinking too, but if company standards or something required that it all be in the hole feature, that'd be an option.
