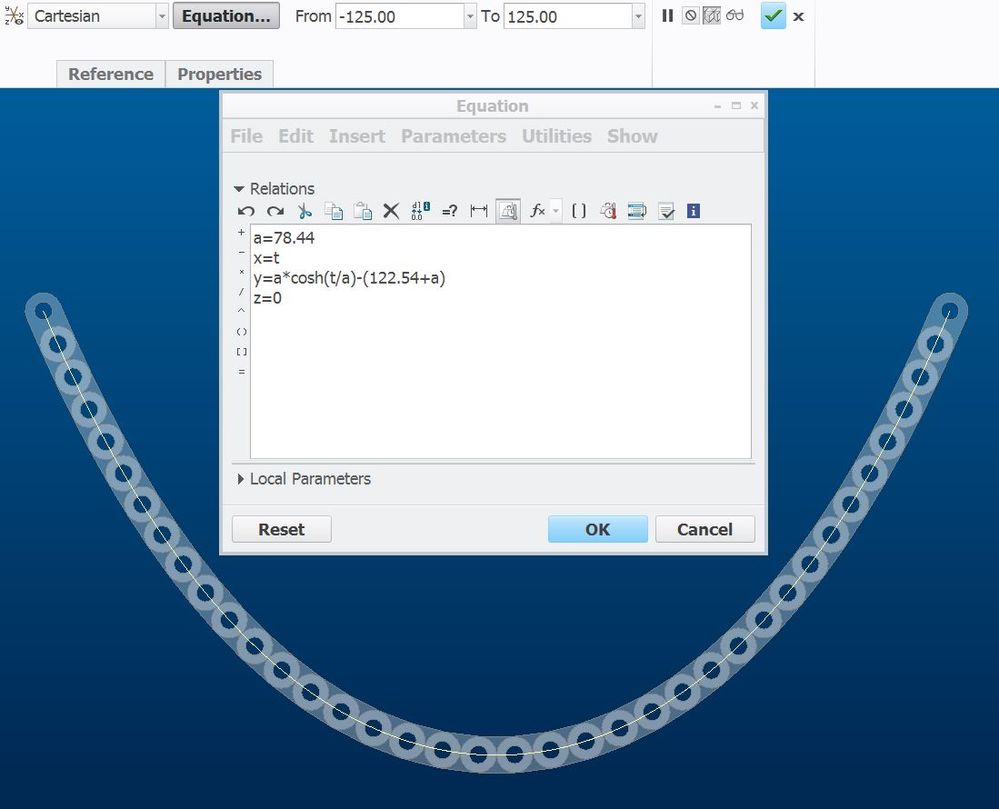

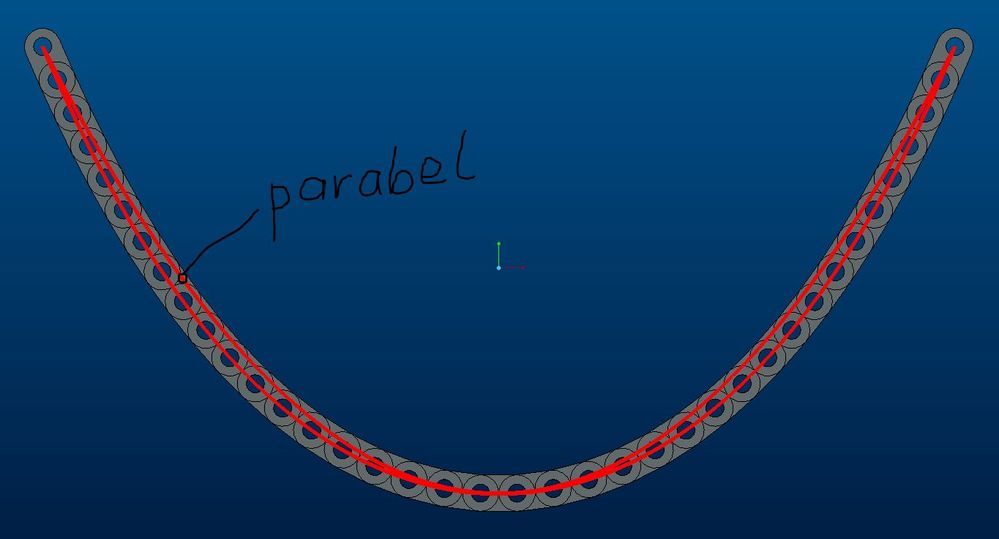

Did you know? Catenary

skunks
18-Opal

Did you know? Catenary

4 REPLIES 4



check in mcp

Suggested assembly technique for chains, cables (modeled with small cable segments with two orthogonal pin joints. use small spring K and damping on joints for cable stiffness)













For sure, I have more going on in this model than shown, but cables and chains can be modeled.
