Simulation of a lifting CE

Hello,

To calculate a hoist as in the attached image, how do you define the crane attachment point at the top and the motor attachment point at the bottom.

In Simulate you can not leave two parts free.

Blocking for example the point of the crane will give a false representation of the deformation.

Cordially.

Denis.

27 REPLIES 27

Apr 16, 2018
03:10 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 16, 2018
03:10 PM

Simulate __can__ leave two parts free. (some degrees of freedom (d.o.f.) free)

IF you have applied all loads from a Free Body Diagram (FBD) and determinate Static case.

This means you are in static equilibrium.

Then turn on inertia relief check box at static Analysis Definition. (this resolves any numerical rounding errors that make the part move and not be static)

Probably best load type is BEARING Load. for hoist pin and mass pin (motor)

Another way may be cut in half and use planar symmetry since the hoist rig appears symmetric from top to bottom. Again inertia relief.

Another way instead of inertia relief for any case is to hold some area where stress is insignificant in the missing DOF. If FBD and loads are accurate then the stress will not be very much. There is a specific technique from PTC on constraining parts in static equilibrium. I could not find it in their knowledge base so it is attached here.

I found a related article at PTC support.

Article - CS59477

And here is the static equilibrium technique. It was redone for a thermal study but it is the same method.

Apr 17, 2018
12:49 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 17, 2018
12:49 PM

Hello,

Thank you for these explanations.

I will try to apply them.

Cordially.

Denis

Apr 26, 2018
09:31 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 26, 2018
01:46 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 26, 2018
01:46 PM

Hello,

Thank you for your model.

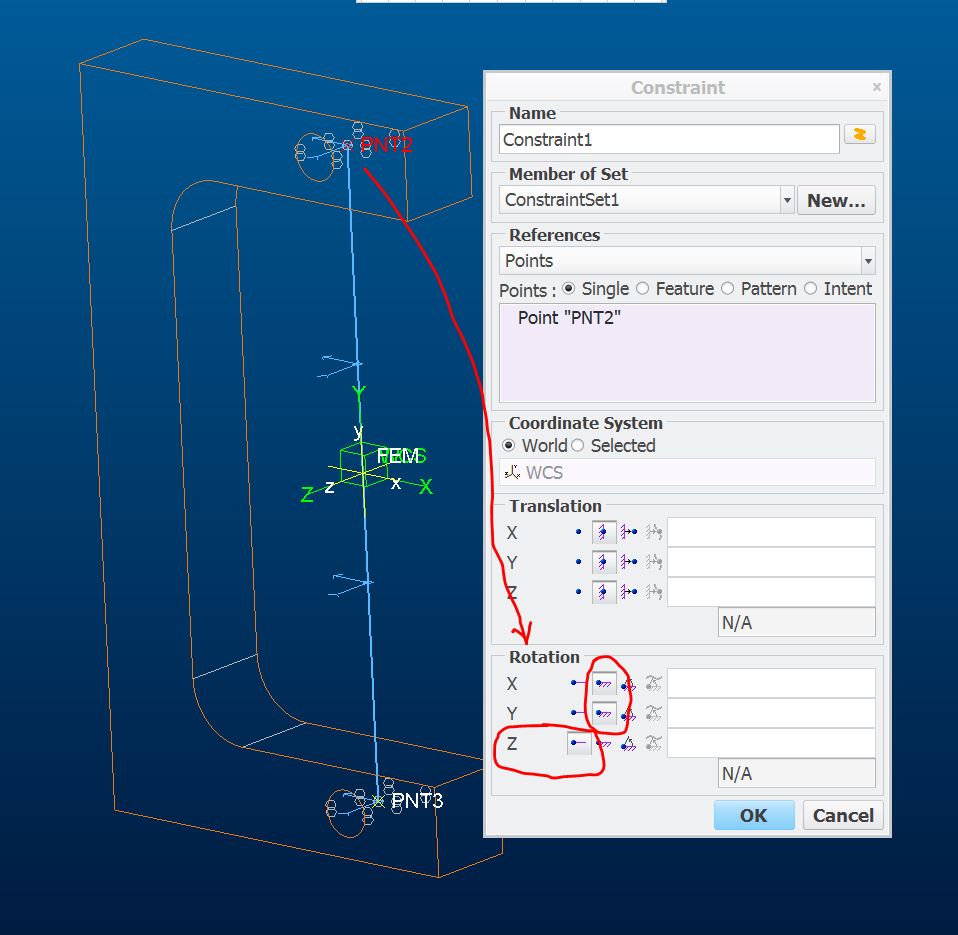

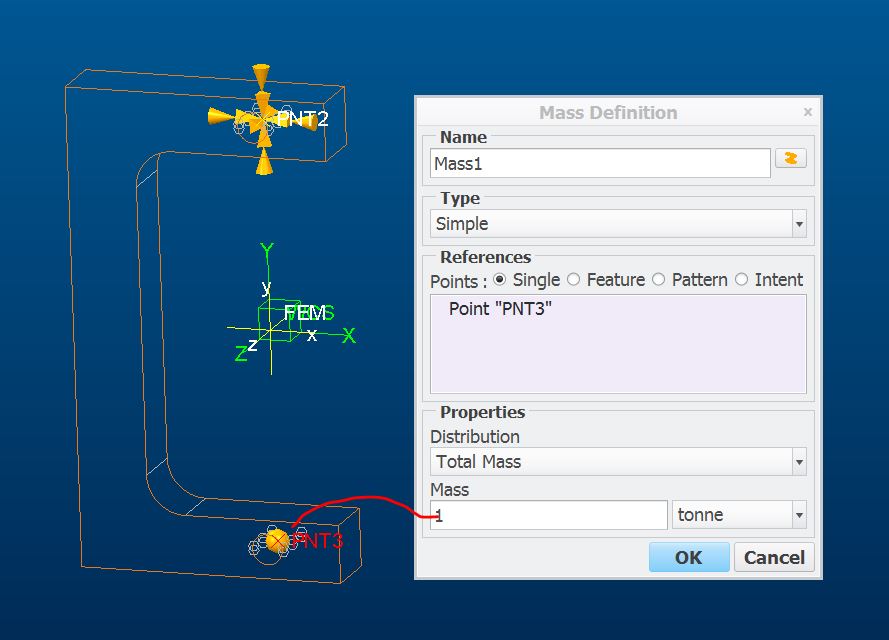

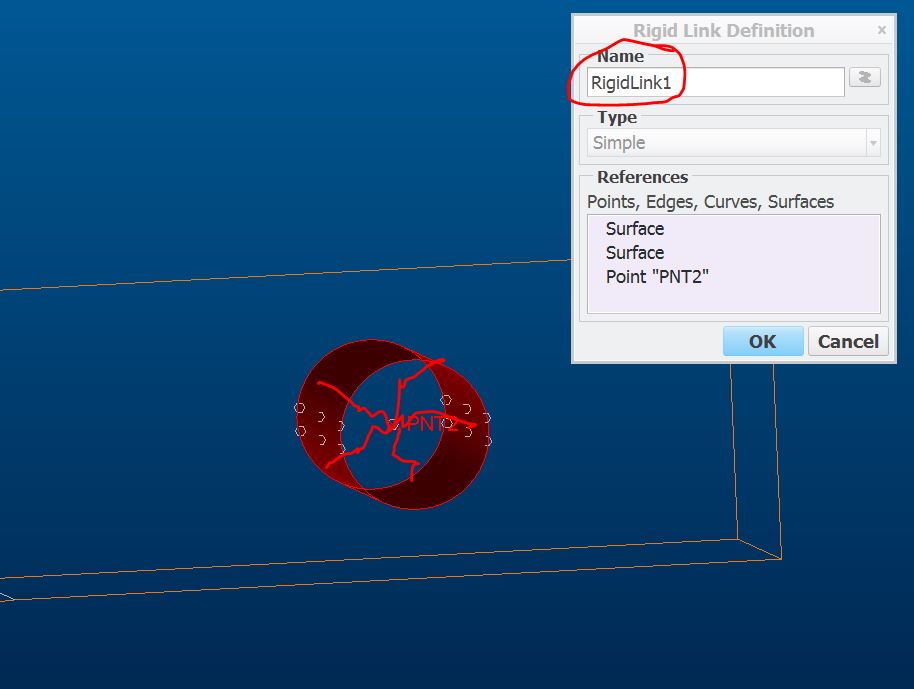

But in the case of my Cé, the fixation is in a circle, how can I put points there to fix the degrees of freedom as on your bridge?

Cordially.

Denis.

Apr 26, 2018
04:17 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 27, 2018
03:06 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 27, 2018
04:07 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 27, 2018
08:31 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 28, 2018
01:24 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 28, 2018
01:24 PM

Hello,

I thank you for your very detailed explanations and your models.

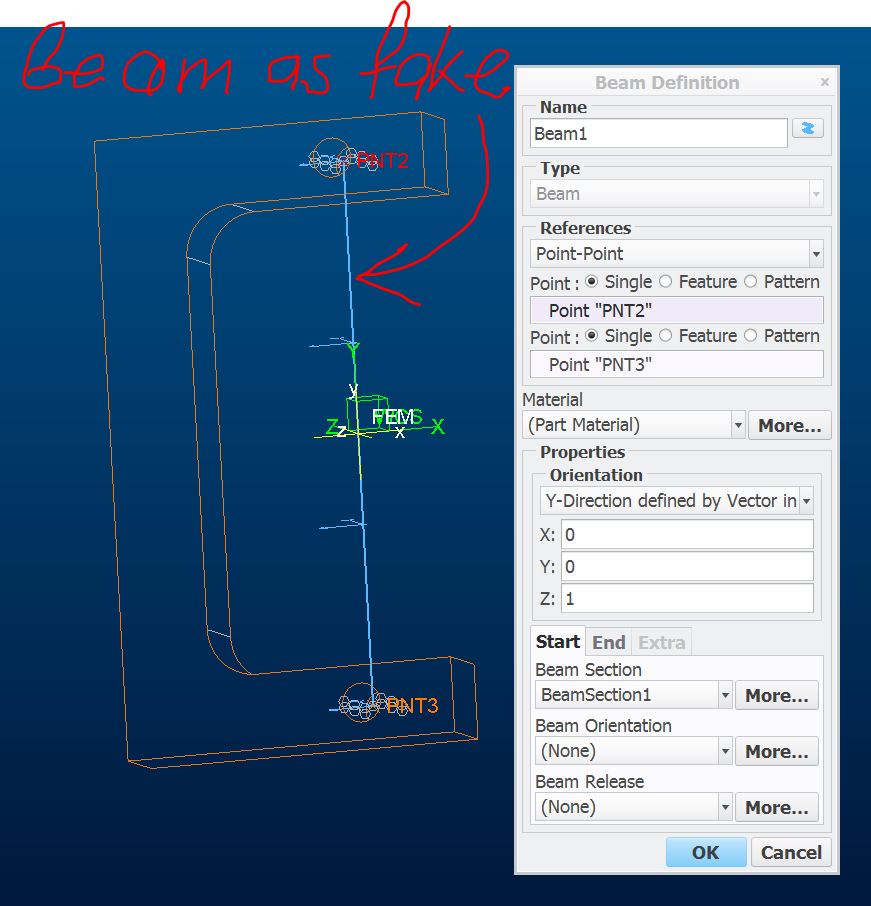

On the other hand I did not understand the utility of the spring in the model test_d_new.

(Can not read the video)

Cordially.

Denis

Apr 30, 2018
01:49 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 30, 2018
01:52 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 30, 2018
01:52 AM

Apr 30, 2018
01:56 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 30, 2018
09:52 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Apr 30, 2018
09:52 AM

Hello Skunks.

Magnificent.

Thank you for these explanations.

I will look at all your explanations.

Cordially.

Denis

May 02, 2018
11:41 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 02, 2018
11:41 AM

Good morning,

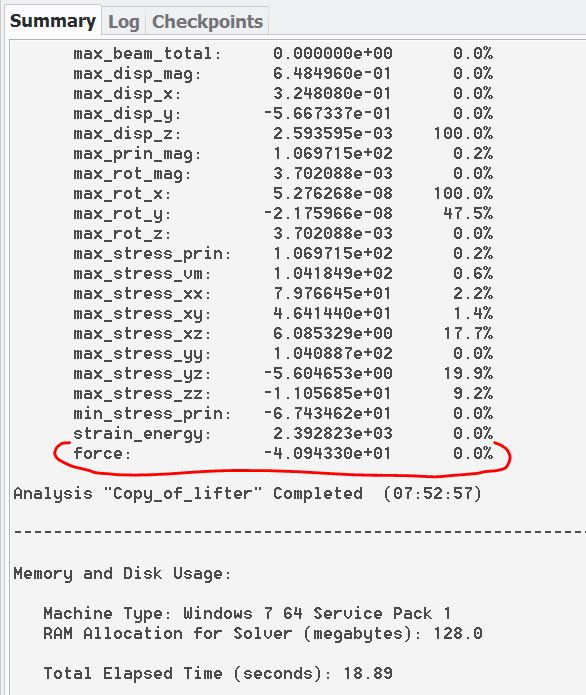

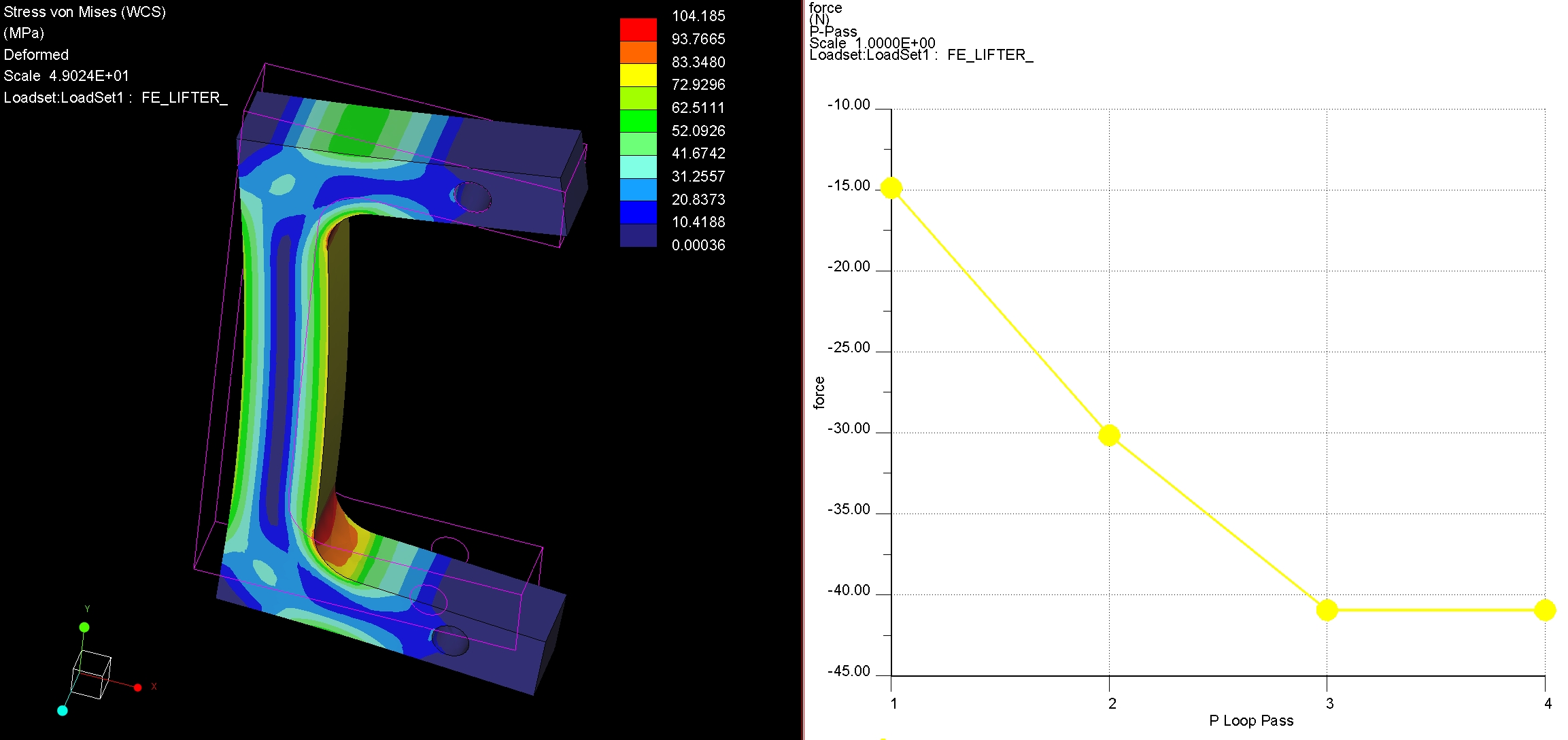

I put a force measurement on the spring by choosing spring.

But for simulation the measurement does not appear in User defined?

Sincerely.

Denis

May 03, 2018
01:57 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 04, 2018
02:15 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 04, 2018
02:15 AM

May 04, 2018
11:35 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 04, 2018
11:35 AM

Thank you for your answer, which was always very detailed and colourful.

I'll go study the solution.

Sincerely.

May 04, 2018
01:45 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 04, 2018
01:45 PM

Now it's my fault, I didn't orient the axes correctly for the spring.

That's why it didn't appear in Measure.

To have the Measurements in the calculations it is not necessary to use the Measure function to load them?.

It seems to me that the Measurements are taken automatically in the calculations?.

May 08, 2018
10:18 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 08, 2018
01:16 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 08, 2018
01:16 PM

Hello Skunks,

Thank you for this new model and explanations.

I'll look into it right now.

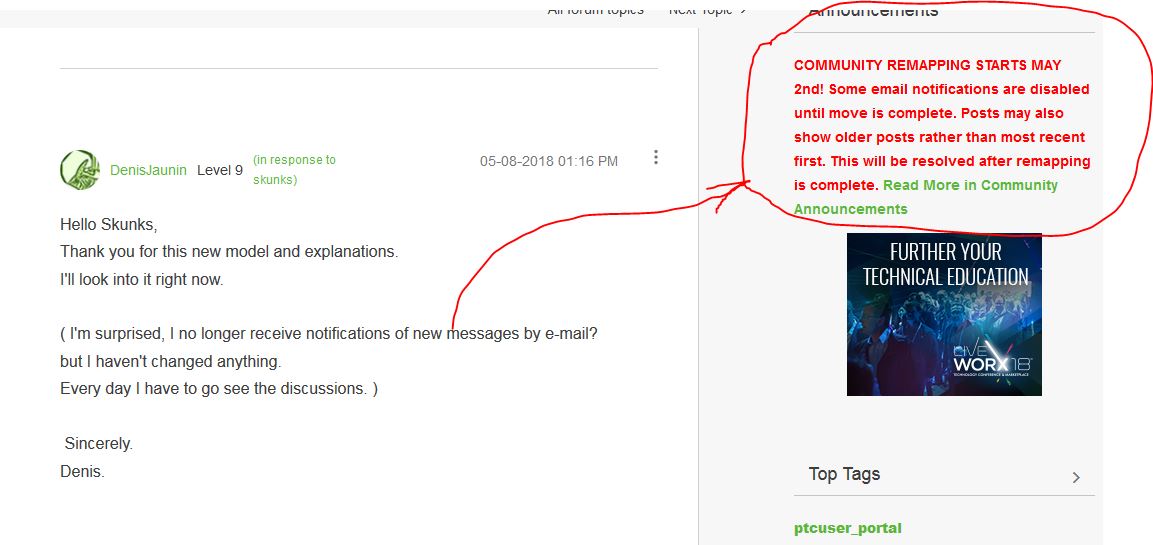

( I'm surprised, I no longer receive notifications of new messages by e-mail? but I haven't changed anything.

Every day I have to go see the discussions. )

Sincerely.

Denis.

May 08, 2018
05:20 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 08, 2018
05:20 PM

May 09, 2018
11:33 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 09, 2018
11:33 AM

Good morning,

Oops, I had the explanation right in front of me.

But unfortunately I don't read English. (neither speaks nor writes it).

Thanks for the highlight.

Sincerely.

Denis.

May 10, 2018
11:13 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 10, 2018
11:13 AM

Good morning,

The principle of "spring" is still very obscure for me.

In your different examples it is placed in different places.

Can we find a document that explains the procedure to follow for using the "spring"?

Sincerely.

Denis

May 16, 2018
02:25 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 16, 2018
08:27 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 16, 2018
08:27 AM

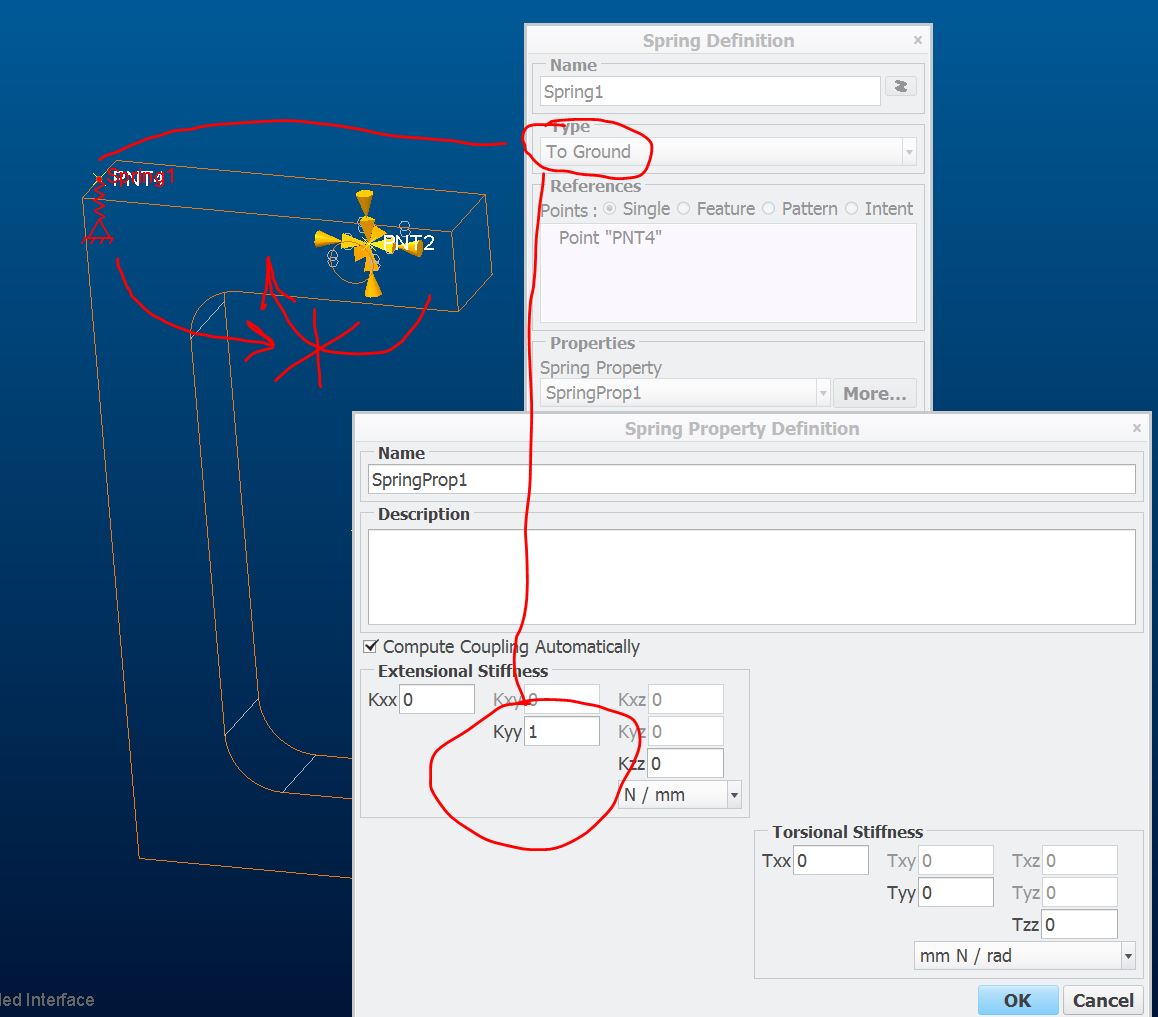

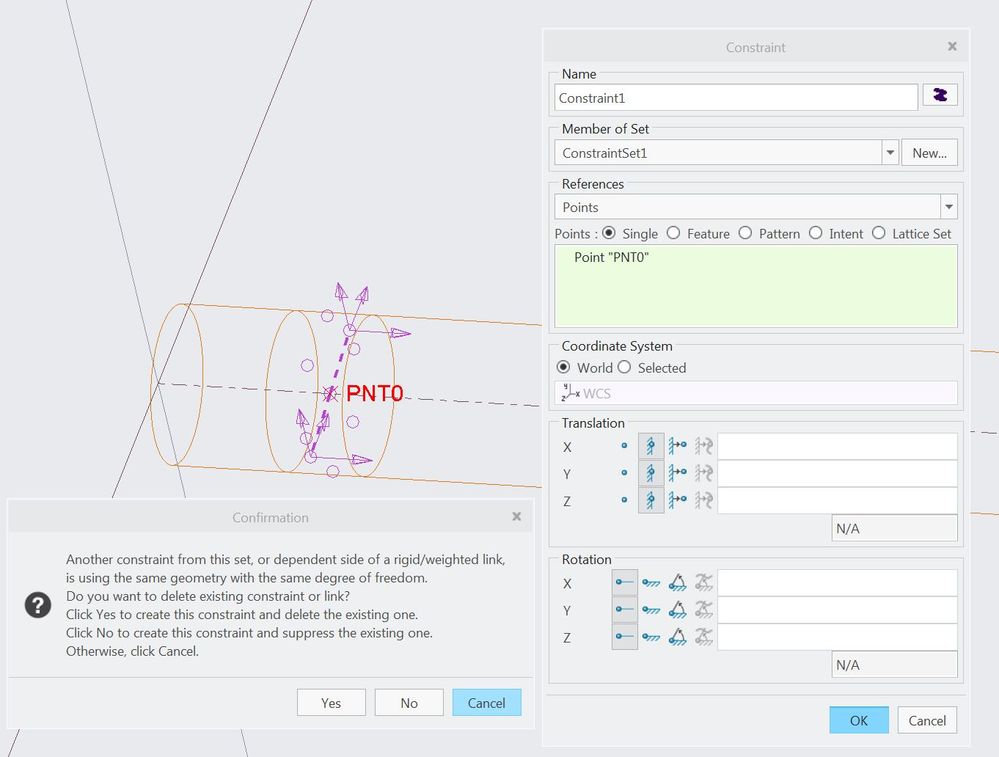

In this case use a spring because constraint on the weighted link dependent node is not allowed.

The general spring replicates the desired constraint because it has stiffness settings for all 6 d.o.f.

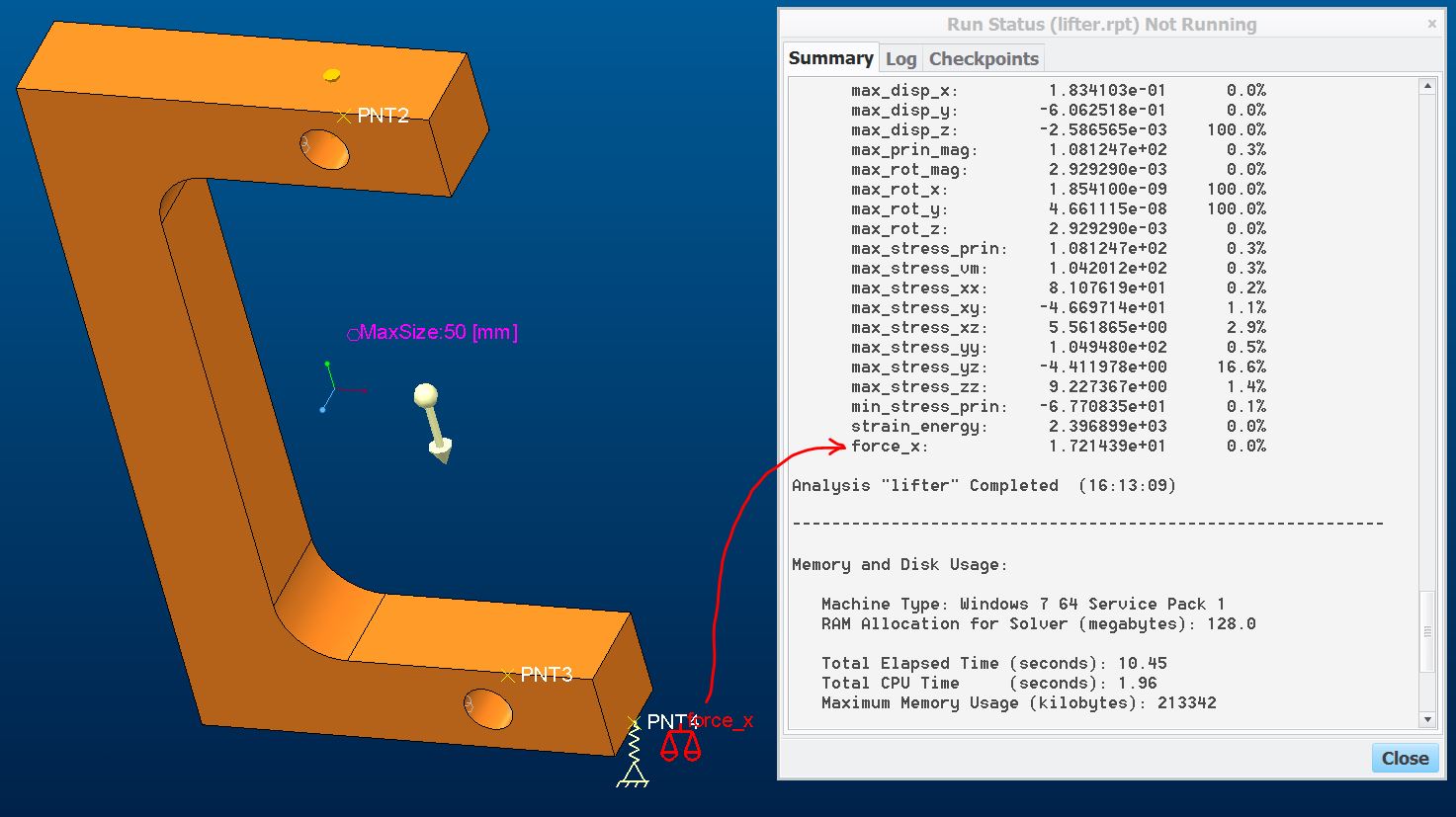

see image.

__Some__ of the ways springs are used:

To constrain a model so it is a static case. (eliminate d.o.f.)

To model some component stiffness as a simplification.

To model bearing/joint stiffness less than rigid. (skunks example is held at a bearing area)

To stabilize the solving for a component held only by contact friction. (use a low stiffness spring)

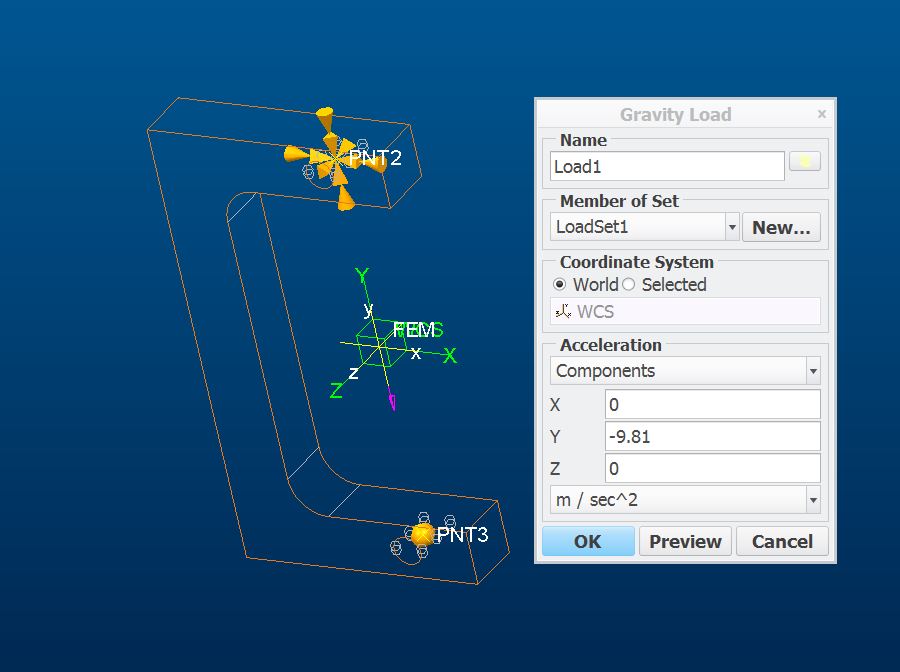

The option *inertia relief* also constrains any free d.o.f. And in the case of the unbalanced load mass of weight at the bottom joint vs mass of weight plus mass of lifting rig at the top joint, the inertia relief applies __gravity__ to the model until the load is balanced and all d.o.f are held = static case. That is why I did not have to include gravity in the unbalanced model because inertia relief is a type of gravity load. Inertia relief is why no spring is needed for adding constraint on free d.o.f.

Inertia relief is a powerful tool because it allows the engineer to use a free body diagram with only loads applied and no constraints. Of course the free body diagram must be force and moment balanced as usual but there are small numerical errors that the inertia relief can "fix". In the case of any free body diagram with a gravity load, the gravity load is omitted when doing the FEA with inertia relief because the inertia relief will apply the gravity automatically to re-balance the forces.

May 16, 2018
09:03 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

May 16, 2018
09:03 AM

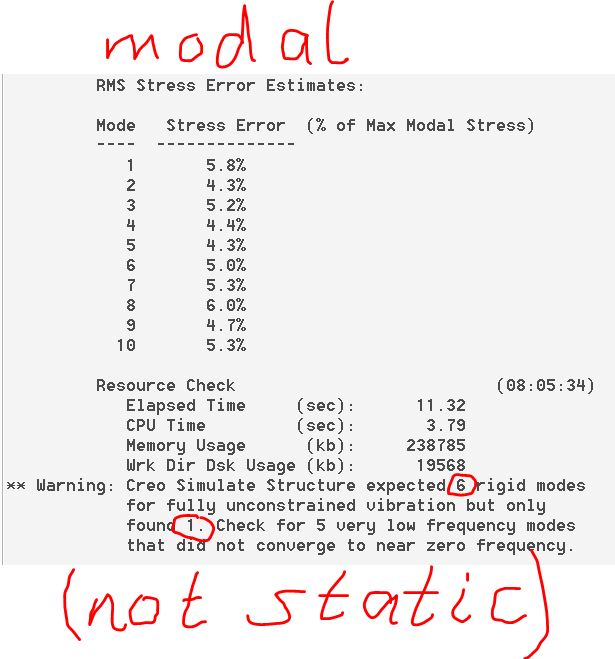

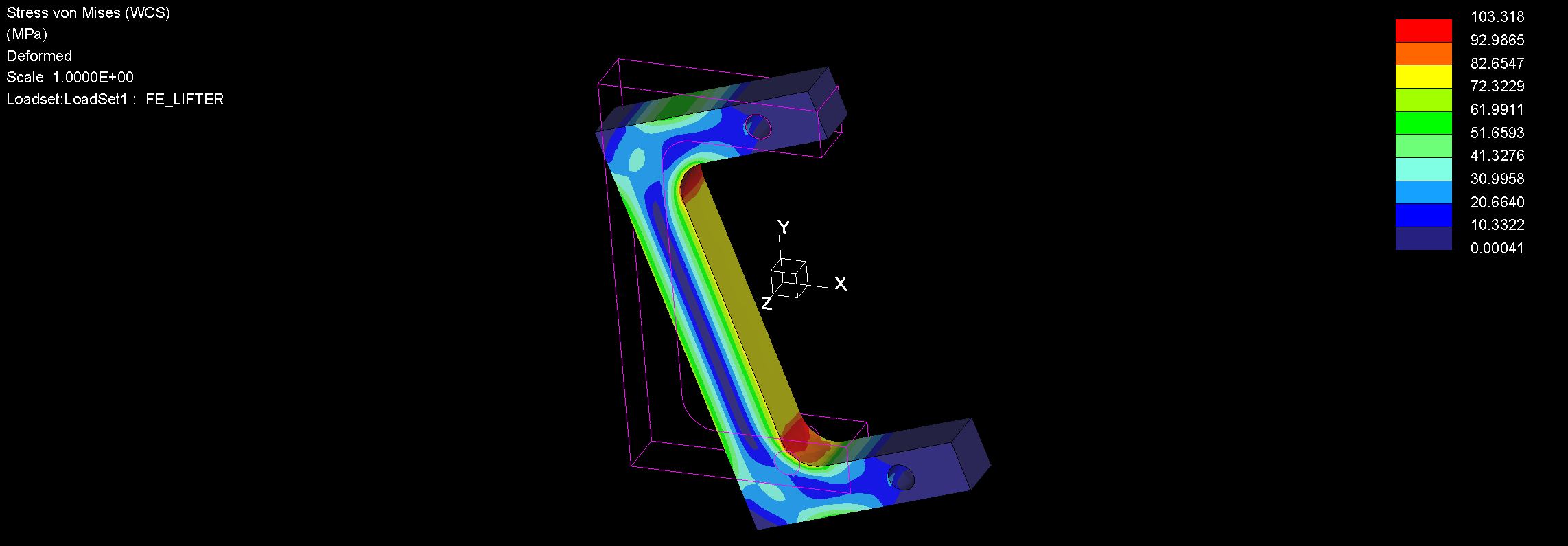

it's not static model
