SheetMetal: Reliefless bending

jyuen
7-Bedrock

SheetMetal: Reliefless bending

Hi~

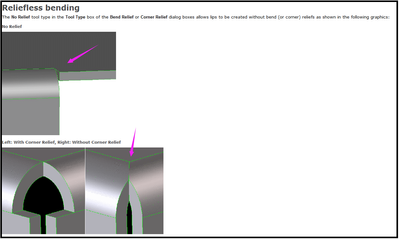

I want to do reliefless bending as shown in the figure in CED 19.0 sheet metal module.


I tried many times, but I could n’t achieve it.

Anybody could help me.



Thanks.

1 REPLY 1
jkramer
9-Granite
(To:jyuen)

Hi,



this is done by choosing the Corner Relief option "No Relief".

For example, when you create a box by selecting all 4 side edges of a rectangular plate, at the bottom of the Lip dialog, in the "Connection" chapter, you can press the Buttons Left and Right, and fill in "No Relief" in te Type box.

Regards,

Jaap
