Data not showing in properties of Label chart (i have to select display field and X axis field)

VaibhavShinde
16-Pearl

Data not showing in properties of Label chart (i have to select display field and X axis field)

Hi ,



i have bound the infotable data (All data) to Label chart but unable to see infotable fields in Properties of Chart.

as i have to select specific field as x axis and display field. using  TWX  8.5.0.



Thanks

1 ACCEPTED SOLUTION

Accepted Solutions

Yes! In fact, in your code you should create infotables using data shape name, like that:

var result = Resources["InfoTableFunctions"].CreateInfoTableFromDataShape({ dataShapeName: "MyDataShape" });
result.AddRow({ name: 'a', value: 1 });
result.AddRow({ name: 'b', value: 2 });
...

This will protect you from some of those typos.



/ Constantine

View solution in original post

9 REPLIES 9
ankur
6-Contributor
(To:VaibhavShinde)

Hi Vaibhav,



You must bound the infotable to the Data property of the chart. After that you will get list option for x-axisfield and y-axis field  choose according to your use case.



Must define datashape for the infotable.



Thanks

Ankur










Hi ,

Thanks for reply,

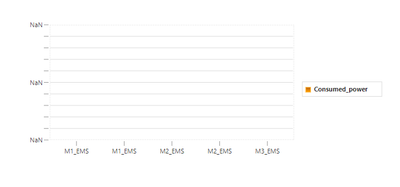

I am getting data now but unable to see in Chart, its showing value as 'NaN' at Y-axis. i have attached snap please check it. and i am able to see all data/fields as result of service. why its showing NaN?





Thank you

Hello @VaibhavShinde,



You need to select correct DataFieldX properties as well.



/ Constantine

Hi @Constantine ,



Please check below snap what i am doing..

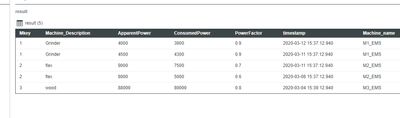

This is infotable i am getting after running individual service which i am binding to Label Chart.

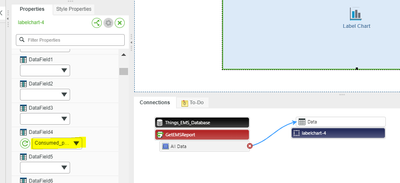

Consumed_power field is at no.4 in infotable same i selected in properties of chart.




This is DatafieldX  as per infotable..

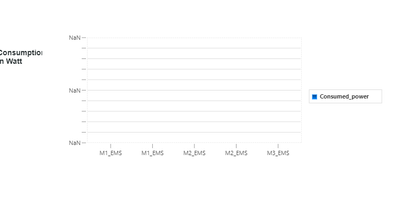

 and the result--


Thanks

Can you also show the Data Shape definition for this infotable?

this is the Datashape..


Thanks

Looks like you renamed your data shape fields! You have "ConsumedPower" on one screenshot and "Consumed_power" on the others. Make sure they are all aligned and it will work.



/ Constantine

@Constantine ,



thanks for quick reply, what i understood here is, both Datashape and infotable field name's should be same right?

correct me if i am wrong.



Thanks





Yes! In fact, in your code you should create infotables using data shape name, like that:

var result = Resources["InfoTableFunctions"].CreateInfoTableFromDataShape({ dataShapeName: "MyDataShape" });
result.AddRow({ name: 'a', value: 1 });
result.AddRow({ name: 'b', value: 2 });
...

This will protect you from some of those typos.



/ Constantine
