Time Series Chart X-Axis size and Y-Axis size

leokeinsfeld
14-Alexandrite

Time Series Chart X-Axis size and Y-Axis size

Hi everyone,



My environment:



ThingWorx 8.5



Custom Chart 3.0.3 - Time Series Chart V2



Is there any way to change the x-axis size and y-axis size?



I have tried looking for Properties and Style Properties but I did not find anything.

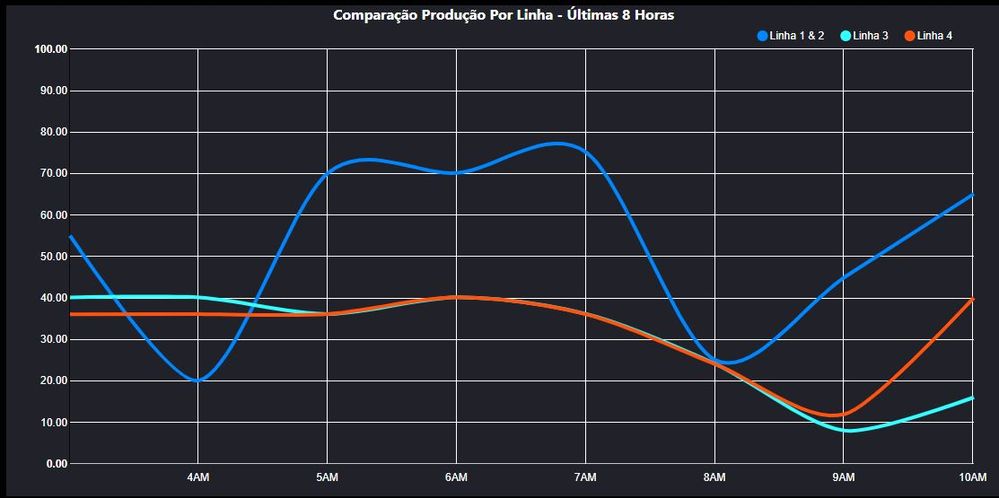

Line Chart History.JPG



Regards,

Leonardo.



ACCEPTED SOLUTION

Accepted Solutions

@leokeinsfeld



Use custom CSS.  I think these have worked for me before:



.nvd3 text{
font-size: 12px;
font-style: normal;
}

.nvd3 .nv-axis .nv-axisMaxMin text{
font-weight: normal;
}

View solution in original post

6 REPLIES 6

Hi, for the X, Y axis size, are you referring to

1. The font size of the labels, make the 4AM to look bigger

2. The intervel of each label marker, 30-40-50-60 to 30-45-60

3. The outer range size of the chart, like in your other question, the widget is not responsive?

leokeinsfeld
14-Alexandrite
(To:zyuan1)

Hi @zyuan1



I need:



1. The font size of the labels, make the 4AM to look bigger

@leokeinsfeld



Use custom CSS.  I think these have worked for me before:



.nvd3 text{
font-size: 12px;
font-style: normal;
}

.nvd3 .nv-axis .nv-axisMaxMin text{
font-weight: normal;
}

leokeinsfeld
14-Alexandrite
(To:nmilleson)

Hi @nmilleson



It has worked to me.



Thank you very much.



Regards,

Leonardo

leokeinsfeld
14-Alexandrite
(To:nmilleson)

@nmilleson



Do you know if is possible to change the decimal places from Y-axis?

@leokeinsfeld

It is possible but you have to modify the actual widget code.



In timeSeriesChartV2.runtime.js, there is a line of code:



chart.yAxis
.showMaxMin(!!thisWidget.yAxisMinMaxVisible)
.axisLabel(thisWidget.showAxisLabels ? thisWidget.yAxisLabel : '')
//.tickFormat(d3.format('.02f')) //floating point/money 'd' for integers
.tickFormat(d3.format('.02f'))
.tickSize(6); //EAC MOD



Note the .tickFormat(d3.format('.02f')



Just change the '.02f' to your preferred d3 format.  (https://github.com/d3/d3-format)
