How to view the position matrix in an assembly?

Go to solution
AP_10483126
13-Aquamarine
13-Aquamarine
‎Dec 05, 2024 04:27 PM
‎Dec 05, 2024 04:27 PM

How to view the position matrix in an assembly?

Version: Windchill 12.1



Use Case: The position matrix of a assembly created in Creo needs to be viewed in windchill UI.


Description:

There are no columns available in windchill UI for the transformation matrix / Position Matrix in the structure tab of an assembly. How to enable this ?

0 Kudos
Notify Moderator
ACCEPTED SOLUTION

Accepted Solutions
Fadel
23-Emerald I
23-Emerald I
(To:AP_10483126)
‎Dec 09, 2024 04:12 AM
‎Dec 09, 2024 04:12 AM

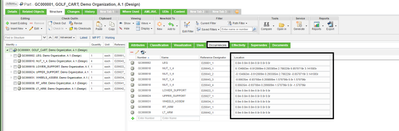

you mean this :




Fede

View solution in original post

Notify Moderator
2 REPLIES 2
Fadel
23-Emerald I
23-Emerald I
(To:AP_10483126)
‎Dec 09, 2024 04:12 AM
‎Dec 09, 2024 04:12 AM

you mean this :




Fede
Notify Moderator
AP_10483126
13-Aquamarine
13-Aquamarine
(To:Fadel)
‎Dec 18, 2024 06:17 AM
‎Dec 18, 2024 06:17 AM

Thats correct. Thank You!
