Question
BOM pagination major problem
- May 1, 2014
- 2 replies
- 2470 views
Creo 2.0-m090
The BOM on my drawing is too big to fit fully on a E-size sheet. So I set the extents and added another segment.
When I plot or switch sheets, it loses the second segment of the BOM. I have to clear the extents and add the segment again.

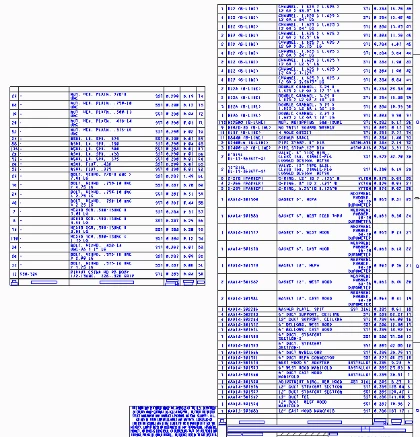

Way it's supposed to look:
[cid:image001.png@01CF6533.82423BF0]

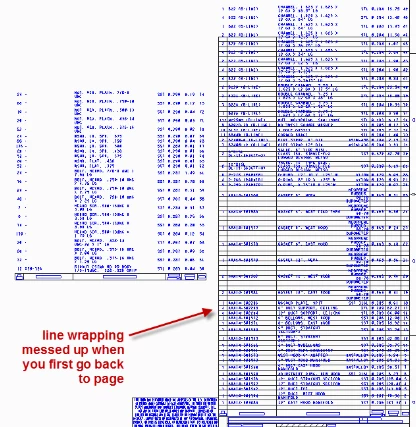

After switching sheets or plotting:
[cid:image002.png@01CF6533.82423BF0]

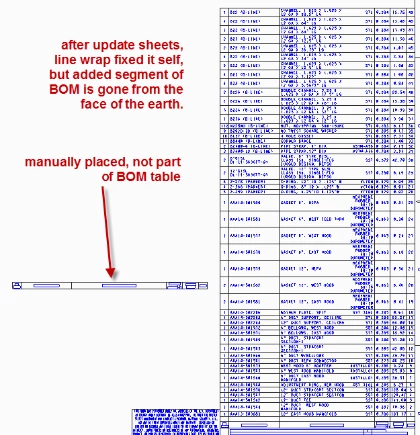

After updating sheets:
[cid:image003.png@01CF6533.82423BF0]
