Question

Creating smooth blends

  • November 2, 2014
  • 2 replies
  • 6195 views

I want to design a channel that have a rectangular shape in the start and circular section at the end with a complex trajectory and some geometrical constraint (e.g. bolt boss). I used swept blend command with 6 sections and a trajectory. Then I used round command to remove sharp edges .The problem is that the channel is not smooth and the round command created extra sections which is not suitable for flow analysis software.

How I can have a better geometry without extra edges and also smooth shape?

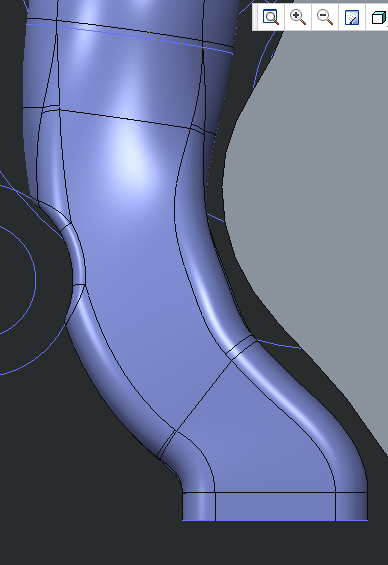

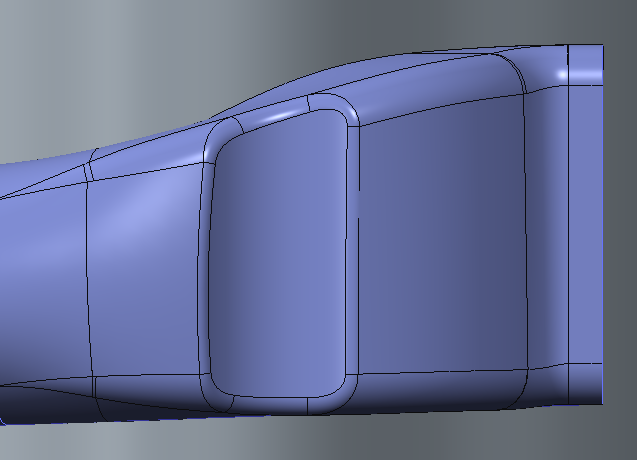

channel1_front_view.png channel2_top_view.png


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

M
MauroStefanovic1-Visitor
1-Visitor
November 2, 2014

To better understand question and try to create an alternative geometry could you post part of model?

M
MohaSharifi10-MarbleAuthor
10-Marble
November 5, 2014

I added the model as a document to my stuff(chnnel.prt)

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald III
23-Emerald III
November 5, 2014

Here's the link to your model (for others):

http://communities.ptc.com/docs/DOC-6463

Thanks, Dale

T
TomD.inPDX17-Peridot
17-Peridot
November 2, 2014

Rounds have a tendency to do that because they need to make true rounds and match tangency. 1st suggestion would be to create the rounds in the blended sweep sections. The section where the rounds quit can be done with a boundary blends between two segments.

These are always a challenge. Rounds in particular prefer to be curvature continuous for most ID people, but that can cause other issues in the software. It all comes down to a gentle art of persuasion in the software.

You're on the right track. And in general, those mismatches on the radii are not an issue in manufacturing. If this causes a problem in your analysis software, you might forward your model to their customer service group to see what they cannot handle what is quite basic geometry.
