degrees minutes seconds and decimal places

  • September 3, 2010
  • 4 replies
  • 5267 views
So we have switched from using decimals degrees to using degree-minutes-seconds. Seems like a relatively easy switch.

I change the config setting for ang_units to ang_sec. It works fine, BUT...there's always a big but around somewhere.

I'm trying to show 23±0.5 degrees as a limit dimension. So, I get [cid:image001.jpg@01CB4B52.D5B37320] when I have the decimal set to 1 place, but I don't want the trailing zero, so i set the decimal to zero and get[cid:image005.jpg@01CB4B52.D5B37320]. I can't seem to get it to show 30 minutes without having 1 decimal place.

Okay, so I understand that 1 decimal place is required for .5 degrees, but come on, I can't exchange decimal degrees for decimal minutes.

Anyone have the amazing solution to my problem or am I out of luck because I asked on a friday before a long weekend holiday.



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

4 replies

B
BobFrindt1-Visitor
1-Visitor
September 3, 2010

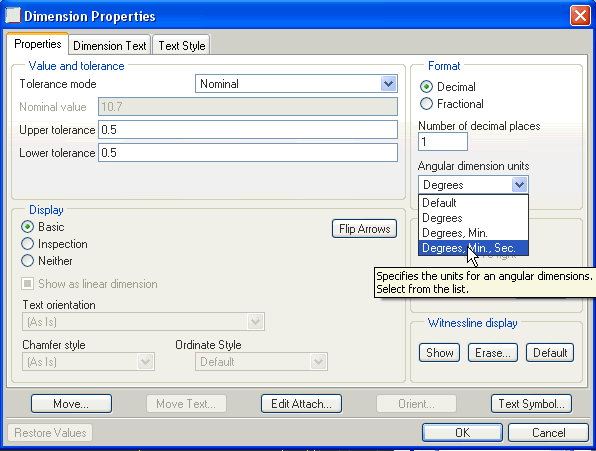

You've gotta pick this

to get this



Bob Frindt
Sr. Designer
Parker Hannifin Corporation
Parker Aerospace
Gas Turbine Fuel Systems Division
8940 Tyler Boulevard
Mentor, OH 44060 USA
direct (440) 266-2359
cell: (216) 990-8711
fax: (440) 266-2311
-
www.parker.com



"Williams, Stephen C. (WLY)" <->
09/03/2010 11:29 AM
Please respond to
"Williams, Stephen C. (WLY)" <->


To
"-" <->
cc

Subject
[proecad] - degrees minutes seconds and decimal places






So we have switched from using decimals degrees to using
degree-minutes-seconds. Seems like a relatively easy switch.

I change the config setting for ang_units to ang_sec. It works fine,
BUT...there's always a big but around somewhere.

I'm trying to show 23±0.5 degrees as a limit dimension. So, I get when I
have the decimal set to 1 place, but I don't want the trailing zero, so i
set the decimal to zero and get. I can't seem to get it to show 30
minutes without having 1 decimal place.

Okay, so I understand that 1 decimal place is required for .5 degrees, but
come on, I can't exchange decimal degrees for decimal minutes.

Anyone have the amazing solution to my problem or am I out of luck because
I asked on a friday before a long weekend holiday.


S
23-Emerald III
StephenW23-Emerald IIIAuthor
23-Emerald III
September 3, 2010
Except now I get the trailing seconds and I don't think that will fly either.

[cid:image001.jpg@01CB4B54.D3A0ADD0]
S
23-Emerald III
StephenW23-Emerald IIIAuthor
23-Emerald III
September 3, 2010
Thanks Wayne, that was what I had missed.
S
23-Emerald III
StephenW23-Emerald IIIAuthor
23-Emerald III
September 3, 2010

Okay, so in summary, between Bob and Wayne there was an "easy" fix.

For completeness, here is everything (I think) I changed to get from decimal degrees to degrees-minutes-seconds...

In the CONFIG.PRO I added ANG_UNITS ANG_SEC.

In the drawing setup file, I set the following:

draw_ang_unit_trail_zeros no

In the drawing, I edited the properties of the dimension and set it to DEGREES,MIN,SEC

I think that is all I did to make the switch for this draiwng.

Thanks again for the quick responses,

Steve
