Drawing: Dimensioning a 3D view. [WF4]

  • June 22, 2010
  • 1 reply
  • 5441 views

Imagine a simple cube 50mm x 50mm x 50mm.

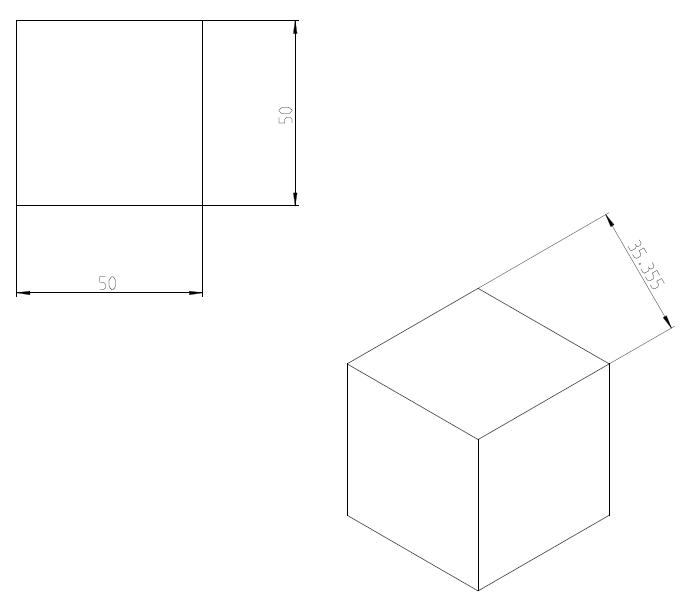

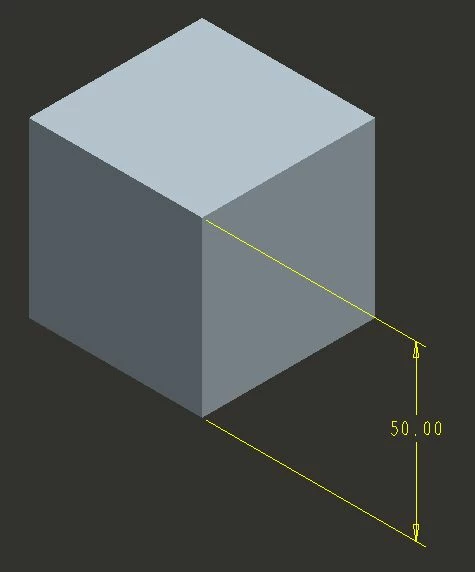

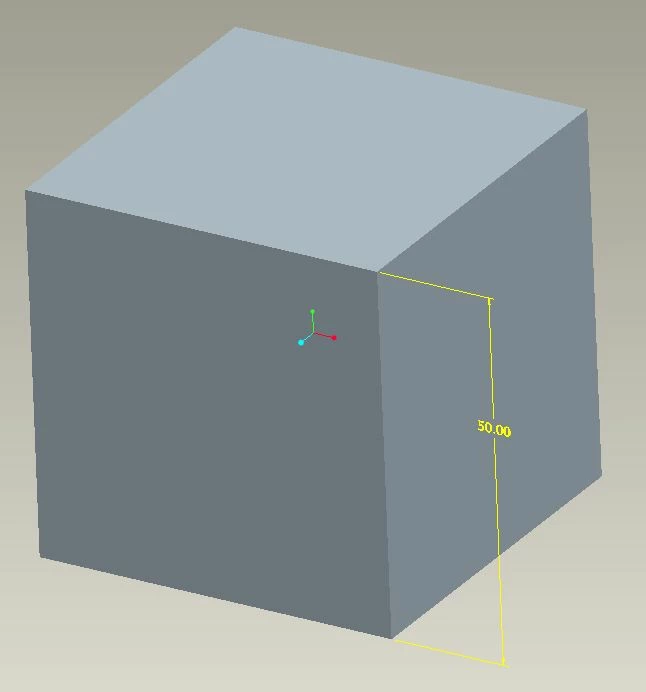

If I place a isometric view down on the sheet, how can I dimension that view accurately? Simple dimension creation seems to project the dimension lines flat to the page which gives an false dimension. Showing the dimension doesn't work either, See picture:


Regards.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

K
Kevin1-Visitor
1-Visitor
June 22, 2010

Use Show/Erase to show a model dimension or create an annotation dimension and show that that in the 3D view.

I
IanEdwards1-VisitorAuthor
1-Visitor
June 22, 2010

Showing the dimension will not work. Can you be more specific on creating annotation dimensions and displaying them in a drawing?

K
Kevin1-Visitor
1-Visitor
June 22, 2010

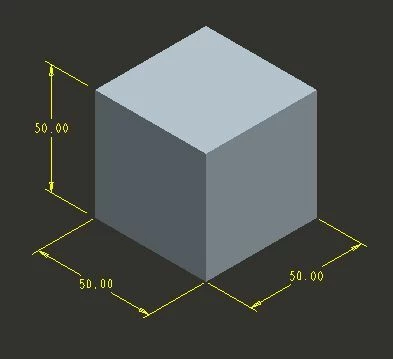

If it's not working check your drawing options *.dtl for the option allow_3d_dimensions and set to yes. These are shown model dimensions. You can also create annotion features in the model that will do the same.
