Error with DXF Export for Laser Cutting

  • January 6, 2016
  • 2 replies
  • 7385 views

Hi,



I'm using Creo Parametric 3.0 (have used Pro/Engineer for a long time previously) at work but am having trouble exporting DXFs for use in other programs.



We need to laser cut some simple components and the only way we've managed to do this is through a DXF export from Creo to CorelDraw and then to Laserwork. Unfortunately the CorelDraw application is on a personal computer which we don't have access to anymore. Do have Illustrator in the office and my DXFs won't open on these machines either.



Anyone had similar issues? My settings for the DXF are just the default and I've basically reduced the simplicity down to just a few radii/holes/lines.



Have attached the simple DXF we're trying to use, presume I'm doing something wrong here.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

R
RaphMORIN16-Pearl
16-Pearl
January 6, 2016

Just tried to open it with draftsight, it's ok.

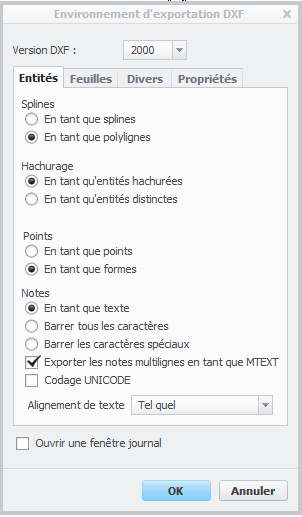

I often export dxf for our punching machine and also for a milling machine using the settings below.

And in my config.pro :

B
bknight1-VisitorAuthor
1-Visitor
January 14, 2016

Tried changing the settings but no avail, can reopen the dxf in PTC Creo but still can't get it open in RDWorks or Adobe Illustrator (have to convert to CGM for Illustrator).

Strange as it's worked in the past and I don't think I've changed any settings in particular.

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
January 14, 2016

I too was able to open the DXF file in Creo but it failed in AutoCAD. I typically use 2004 output and haven't had any problems.

Would an IGES output work for you?

B
bknight1-VisitorAuthor
1-Visitor
January 18, 2016

So have found a work around that suits me for now after countless trys getting the dxfs to export properly.

Workflow now:

1) Export to IGES.

2) Open with FreeCAD.

3) Save as DXF.

Whilst it doesn't appear to be the quickest route it does allow me to do it all from my machine pretty quickly without wasting other designers time converting files.

Thanks all for the suggestions though.
