Question

How to set same layer status in drawing as model ?

  • December 23, 2015
  • 1 reply
  • 1784 views

Hi..



We have created drawing from model and need same layer status in drawing as model.

Right now if we hide any layer in model then in drawing it need to hide again manually. but we need it should replicate from model.

So please can we know is there any option or anything else to make same layer status.

e.g.

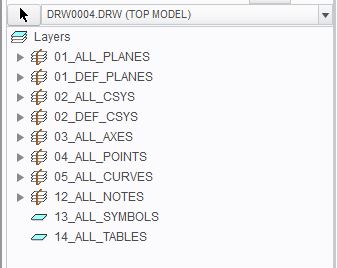

currently drawing have below layer status

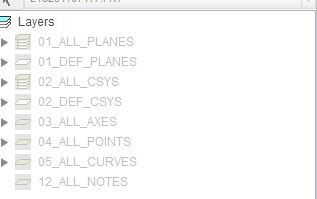

and model having below layer status




Thanks,

Prashant Pandarkar


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

M
MartinHanak24-Ruby III
24-Ruby III
December 23, 2015

Hi,

experiment with the following drawing options (File > Prepare > Drawing Properties > Detail Options > change😞

draw_layer_overrides_model

ignore_model_layer_status

Probably your drawing contains ignore_model_layer_status yes option.

MH

P
ppandarkar-2_18353115-MoonstoneAuthor
15-Moonstone
December 23, 2015

Yes it works.

Thank you.
