Question

I am HAving Problem Of Section In Drawing file i.e. While Detailling.

  • March 17, 2016
  • 2 replies
  • 2725 views

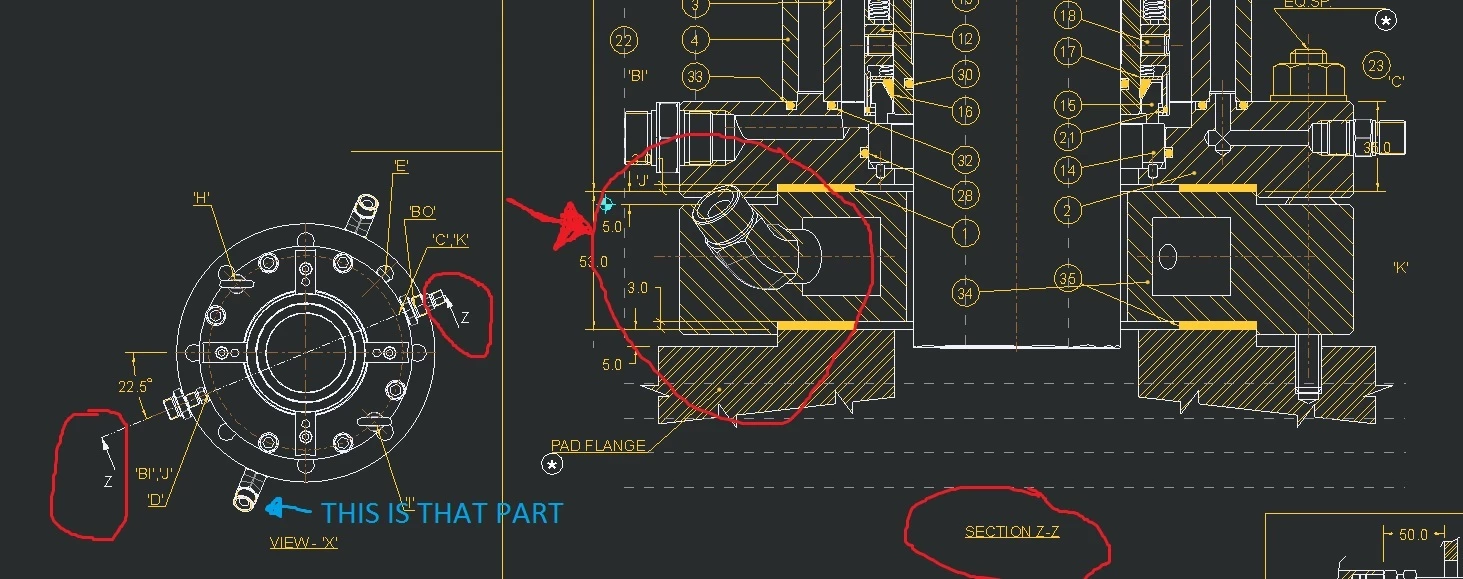

I Am Facing A problem In Section While Detailing In drawing File. The Problem Is That, When I took A section Of My Assembly in drawing mode; then 'The Part Behind My Section' Appears In Between My Section View (drawing view). Which Part Should Not Be Seen in this Section. Which Means This Part Is Invisible In 3D Assembly File When I Activate A particular section.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

D
DavorGranic16-Pearl
16-Pearl
March 17, 2016

Is nozzle perhaps a surface part ei. no solid?

R
rmore4-ParticipantAuthor
4-Participant
March 17, 2016

it is solid part.

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
March 17, 2016

Is there a quilt in the part?  Models from suppliers sometimes come as a solid with a quilt depending on how the made the IGES or STEP.

There is always more to learn.
D
DavorGranic16-Pearl
16-Pearl
March 18, 2016

Ok I finaly managed to recreate your problem on my test model.

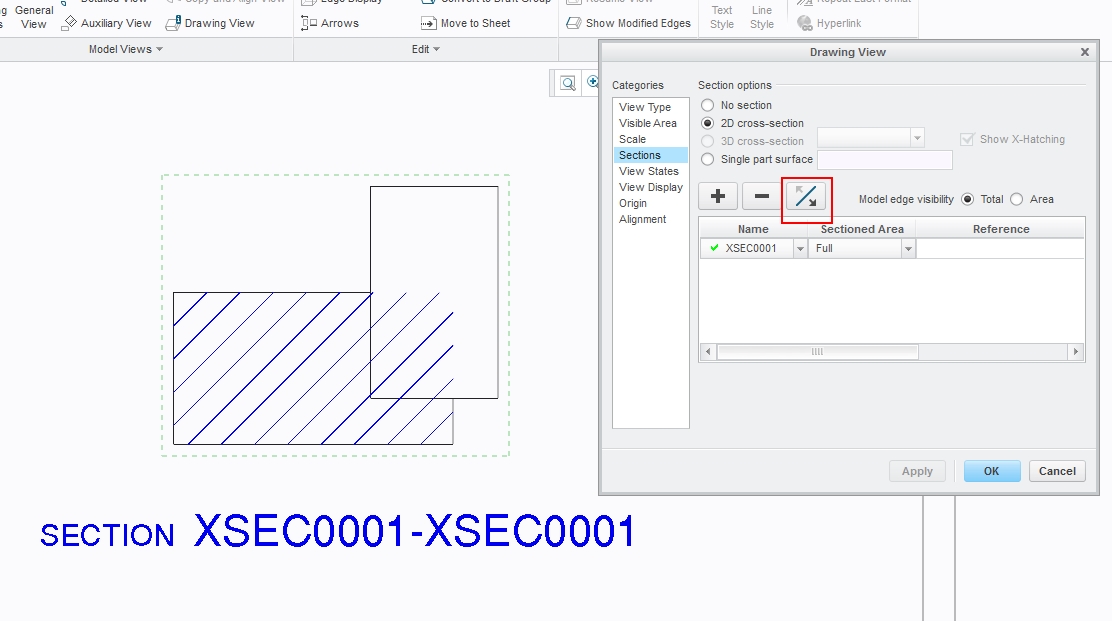

You probably made xsection of view in drawing and then clicked "flip material removal side without re-orienting".

You can choose xsection to show area not total that will remove nozzle or flip removal side again.


R
rmore4-ParticipantAuthor
4-Participant
March 18, 2016

Thanks Mr. Davor,

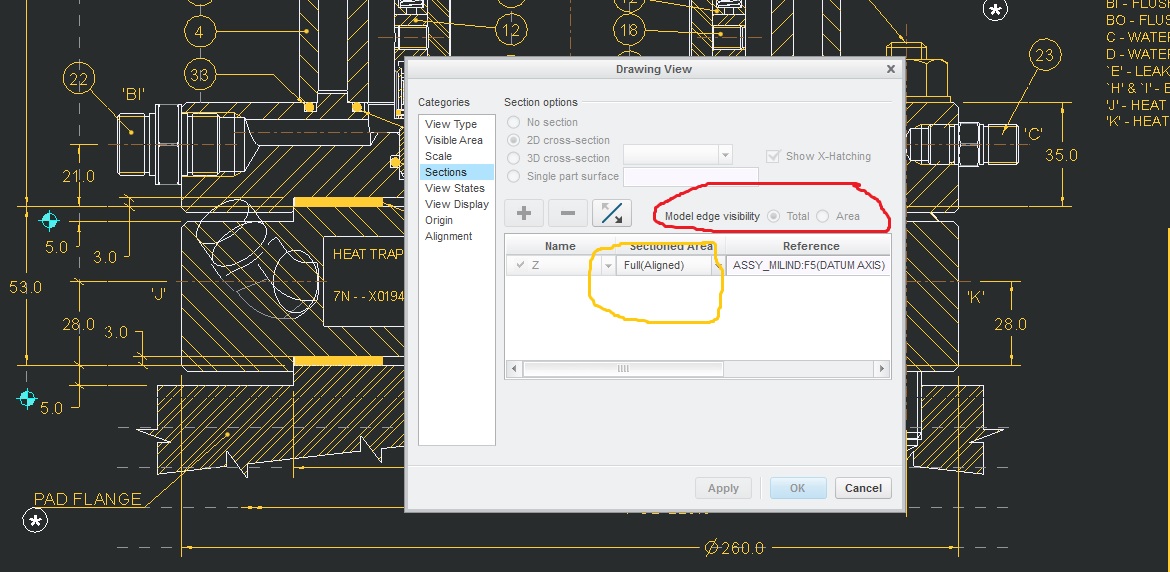

But Actually I am Using This Section With Full(Aligned) Option. And While Using This section 'Model Edge Visibility' IS Locked for use.
