Hi,



I would like to measure the total distance between multiple points (vertex) that I select. How do I do that or is it not possible?

For example, I have an assembly that I would like to protect by covering it with a big sheet of plastic. To find out what dimensions to cut the plastic to I would like to click along the perimiter of the assembly and have the measure tool add up the distances between the clicked points. Right now I have to measure one length at a time and add them manually.



If not, are there any suggestions to a different way of doing this?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
March 18, 2013

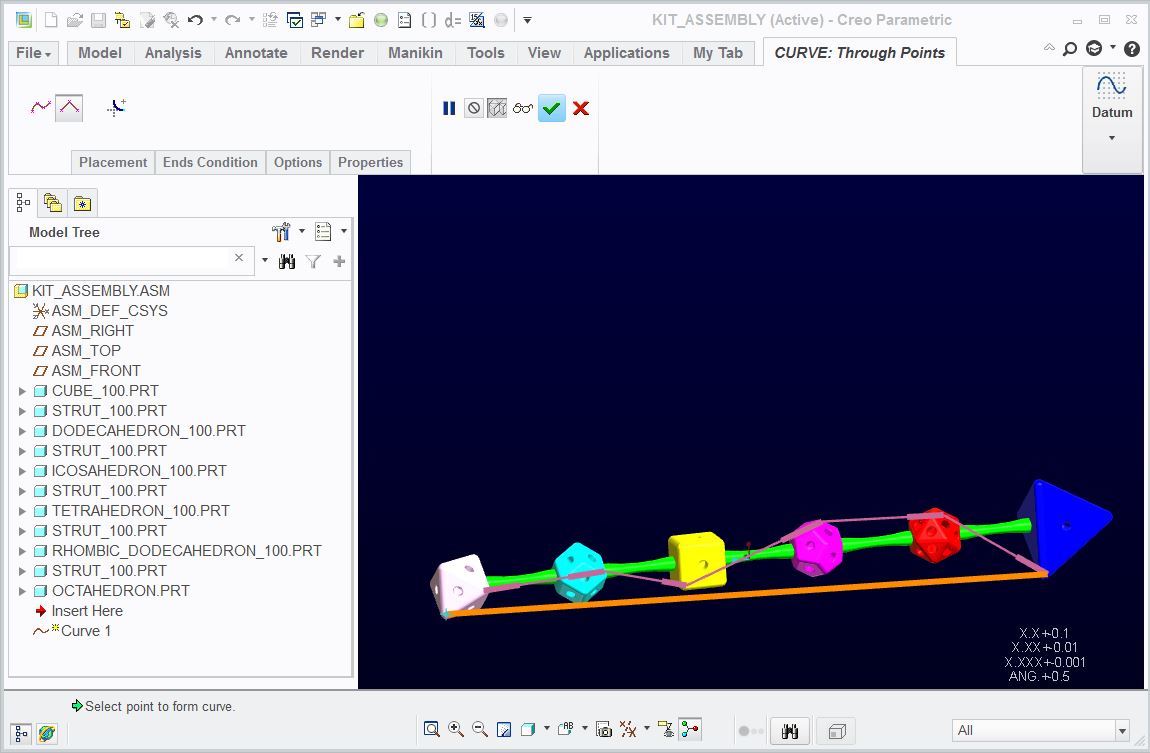

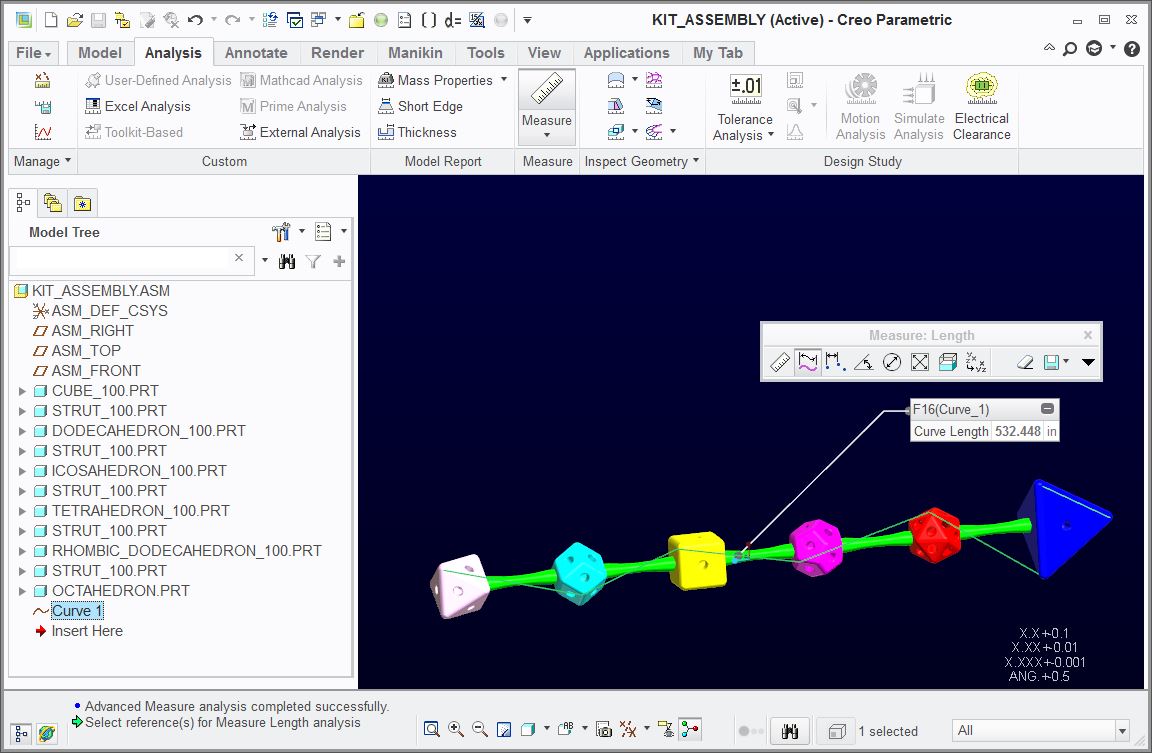

Try creating a datum curve through the vertices and set the type to "straight". Then you can measure the "length" of the curve feature. Tip, after the first 2 points, select the line type before picking additional points or they will all be curvature segments.



E
ErikClacey14-AlexandriteAuthor
14-Alexandrite
March 19, 2013

Thanks. Good tip. I guess then that there is no real way of using the measuring tool only. Ie without adding new elements to the assembly.

T
TomD.inPDX17-Peridot
17-Peridot
March 19, 2013

There is another way but it too is very manual.

You can save each measurement results (point to point). This creates a measure-feature You can then create a relation that adds them all together. You could even show this sum on the screen. These values will remain dynamic.
