Exclude part(s) from 3d & 2d section view in Creo Parametric 7.0

[Prakash_P]

Dear Team,

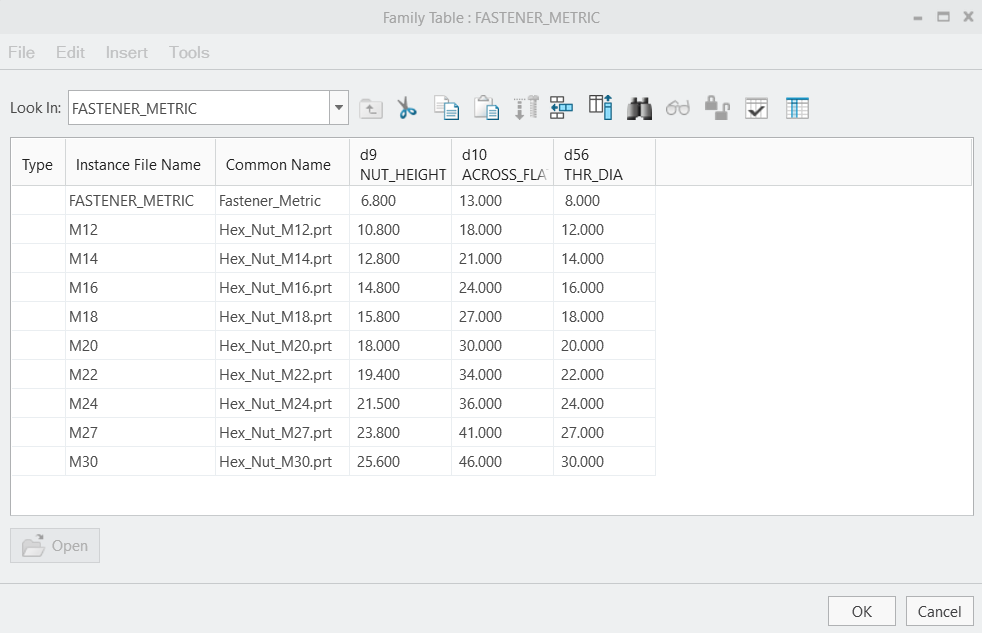

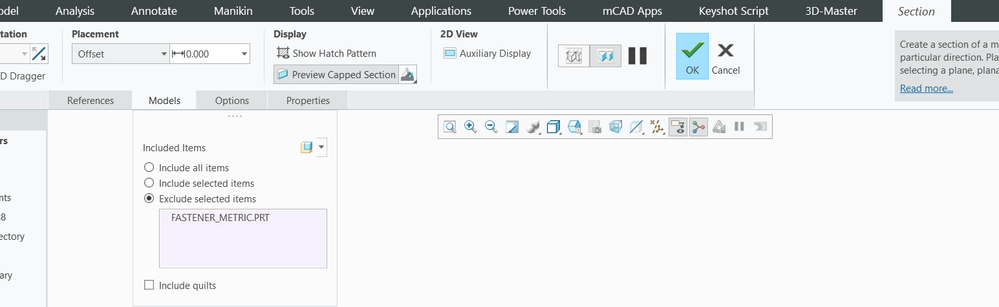

We are using ‘Creo Parametric 7.0’. We have an assembly with the fastener 'Fastener_Metric.prt'. Since it is a standard component, it is controlled using the family table(Refer;'creo_family_table.png'). I would like to exclude ‘Fastener_Metric.prt’ from the section in both 3D and 2D. I excluded ‘Fastener_Metric.prt’ once(refer:'creo_exclude part.png'), but upon changing its instances, it was included in the 2d section. Is there an option to always exclude Fastener_Metric.prt and its instances from the 3D and 2D drawing sections?. Note: Instances will be changed by external configuration software based on user input.

Thanks in advance.

Prakash.P

[Catalina]

Hi @Prakash_P,

Thank you for your question!

Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant.

Best regards,
