Need to build repetitive curve in a sketch

I am needing to build a sketch that the curve needs to follow an exact pattern. I have attached a sketch that shows the basic curvature. (As it is freehand the shape is not exact however)

The pattern of curvature needs to follow a point placement like this. The initial point is at X=0 and Y=+.06. The second point on the curve would be X=+.5 and Y=-.06. The 3rd point on the curve would be X=1 and Y=.06. Etc...

I want to build a curve where I don't have to manually enter the dimensions as the size will extend for close to 50 inches.

My initial thought would be that Relations might be the way to go, but I have no experience with this and don't know if it would be capable of what I am looking to do.

Solved! Go to Solution.

1 ACCEPTED SOLUTION

Accepted Solutions

Jun 04, 2019
02:51 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 04, 2019
02:51 PM

I'll try again tomorrow. Trying to remember the formula just now.

X= 40*(t*720)

Y= 4*sin*(t*360)

Z=0

In this case 40 is the wavelength.

720 is 2 cycles

I think 4 is amplitude for y

Z is zero because it's in a single plane.

Difficult when not in front of a car screen to check.

X= 40*(t*720)

Y= 4*sin*(t*360)

Z=0

In this case 40 is the wavelength.

720 is 2 cycles

I think 4 is amplitude for y

Z is zero because it's in a single plane.

Difficult when not in front of a car screen to check.

10 REPLIES 10

Jun 04, 2019
10:45 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 04, 2019
10:45 AM

Still looking this over online. I haven't pieced this together but I am now wondering whether this can be done as a relation at all within a sketch.

I am seeing examples how using a variable section sweep can influence different shapes but haven't seen a simple straight line oscillating curve that would result in the basic sweep shape of the curve on my initial post.

Jun 04, 2019
12:12 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 04, 2019
12:12 PM

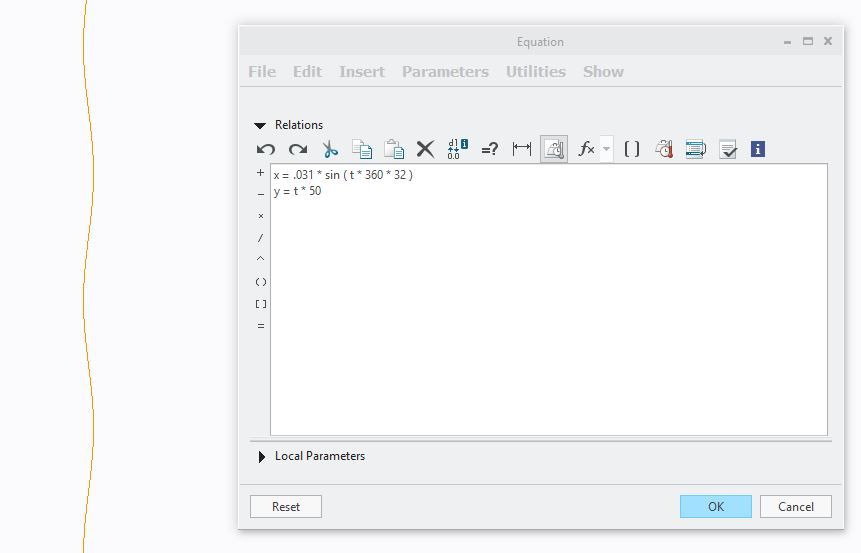

HI, Use curve from equation.

Datum\Curve\curve from equation. Example can be tailored from below.

Jun 04, 2019
12:27 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 04, 2019
12:27 PM

Rcrerar-2: The images you attached aren't showing. I will see if I can find the location you are suggesting but if there is an easy way to see these images it would be great.

Jun 04, 2019
02:51 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 04, 2019
02:51 PM

X= 40*(t*720)

Y= 4*sin*(t*360)

Z=0

In this case 40 is the wavelength.

720 is 2 cycles

I think 4 is amplitude for y

Z is zero because it's in a single plane.

Difficult when not in front of a car screen to check.

Jun 04, 2019
03:00 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 04, 2019
03:00 PM

This is excellent!

I just did find a video that showed roughly what I needed and proved this out.

I will check to see how your numbers differentiate.

This is a little fudgy so it may be that your numbers are closer in line than the formula I was using.

Jun 05, 2019
04:03 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 05, 2019
04:03 AM

Just Checked the formula I used.

x=50*t

y= 4*sin(t*720)

z=0

curve would be 50 units long and total height is 8 units crest to crest. This produces 2 cycles if you want more then each cycle is multiple of 360.

If it is not a sin curve then the maths needs working out.

Have fun.

Jun 06, 2019
08:26 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 06, 2019
08:26 AM

Subsitute 'sin' for 'cos' in the formula & you get another variation of the curve.

Worth a mention.

Jun 06, 2019
08:59 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 06, 2019
08:59 AM

rcrerar: Here is the formula that I went with. This worked great.

I will be able to use this pattern in the straight stretches, but unfortunately I can not use this for twisting around a large radii in our die. With that I will be developing a different technique involving a pattern and some fillets.

When you extrude this feature it looks a lot like a sun chip. Unfortunately I can't bend this feature at a specific large radii while maintaining the tilt I will need.

John: I did for a while consider the cosine function for doing a bend, but in the end I knew it would be a bear to maintain a specific bend radii as well being unable to carry through the proper inclination.

In the end I know that I can still use this for the straight stretches in my die. It gives a beautiful result.

Jun 06, 2019
09:12 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 06, 2019
09:12 AM

"I will be able to use this pattern in the straight stretches, but unfortunately I can not use this for twisting around a large radii in our die. With that I will be developing a different technique involving a pattern and some fillets."

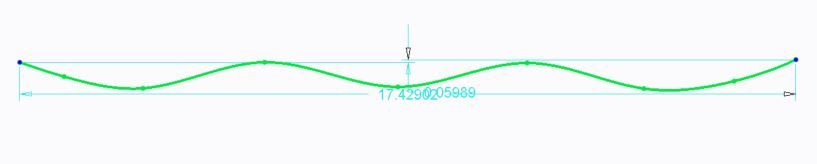

I am not sure what you mean exactly by your statement but would the attached image help?

Jun 06, 2019
01:03 PM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator

Jun 06, 2019
01:03 PM

John: Your example does place the general inclination of the curvature we are after. Unfortunately the inclination needed is not 90 degrees as in your example, but 72 degrees. The long linear portion that we would use gets tilted that amount through the tilted CSYS.
