Pattern Dimension

MaikTheBike
15-Moonstone

Pattern Dimension

Hi,





I've created a steel mast using a pattern of the inner tubes:

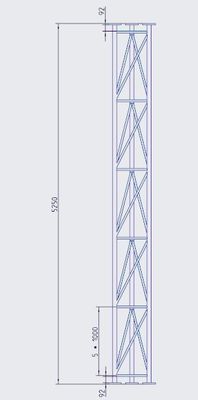

In the drawing I've dimensioned the first pattern like that:



&P343:3 * @D

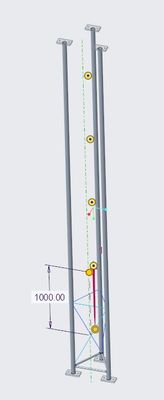

And it works perfectly:




But I also want dimensions to show up between the other Patterned tubes (1000mm, 1000mm, 1000mm, 1000mm). Maybe someone knows how I can create the other 4 dimensions ?

It should automatically update, when the number of the pattern (5 times) changes.



Thanks a lot,

Maik

1 REPLY 1

Dimension will associate to an ID and that will drive the pattern. When showing the dimension will display only one dimension .. for other dimensions you may create dimensions in drawing..
