UNRELATE HIDING COMPONENTS BETWEEN DRW AND 3D MODEL

MB_10508968
13-Aquamarine

UNRELATE HIDING COMPONENTS BETWEEN DRW AND 3D MODEL

Hi, I would to mantain the visibility of a component in all the drw views, during I am hiding the componet in 3D model.

How can I do this?



Best regards.



Michele Barile





ACCEPTED SOLUTION

Accepted Solutions
tbraxton
22-Sapphire I
(To:MB_10508968)

Simplified representations will enable this. Refer to the link below for some notes on how they work. You could also use layers to do this, but simplified reps would be the preferred solution.



https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/assembly/asm/About_Simplified_Representations.html

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric

View solution in original post

2 REPLIES 2
tbraxton
22-Sapphire I
(To:MB_10508968)

Simplified representations will enable this. Refer to the link below for some notes on how they work. You could also use layers to do this, but simplified reps would be the preferred solution.



https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/assembly/asm/About_Simplified_Representations.html

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric
llie
16-Pearl
(To:tbraxton)

MB,

You can select layers to turn on and off models and other information per each view. Follow the images in order.

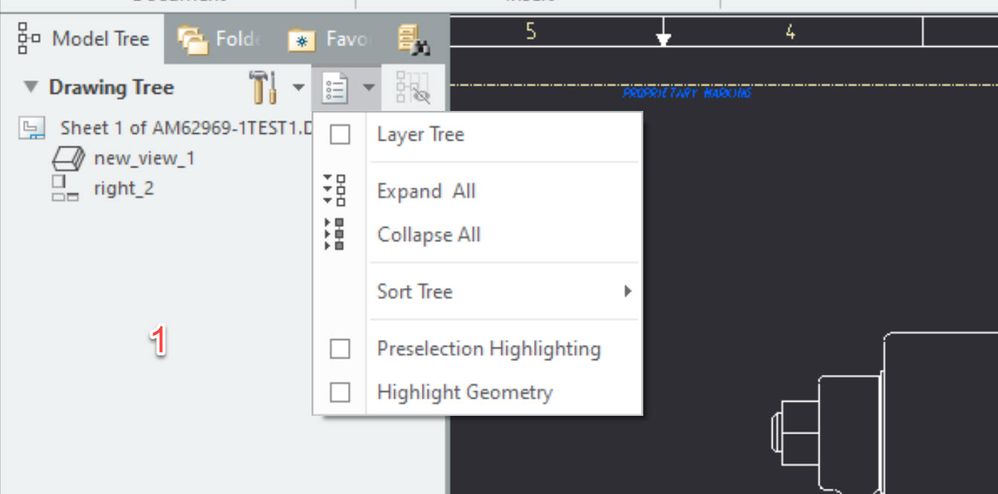

1. Pick layer tree

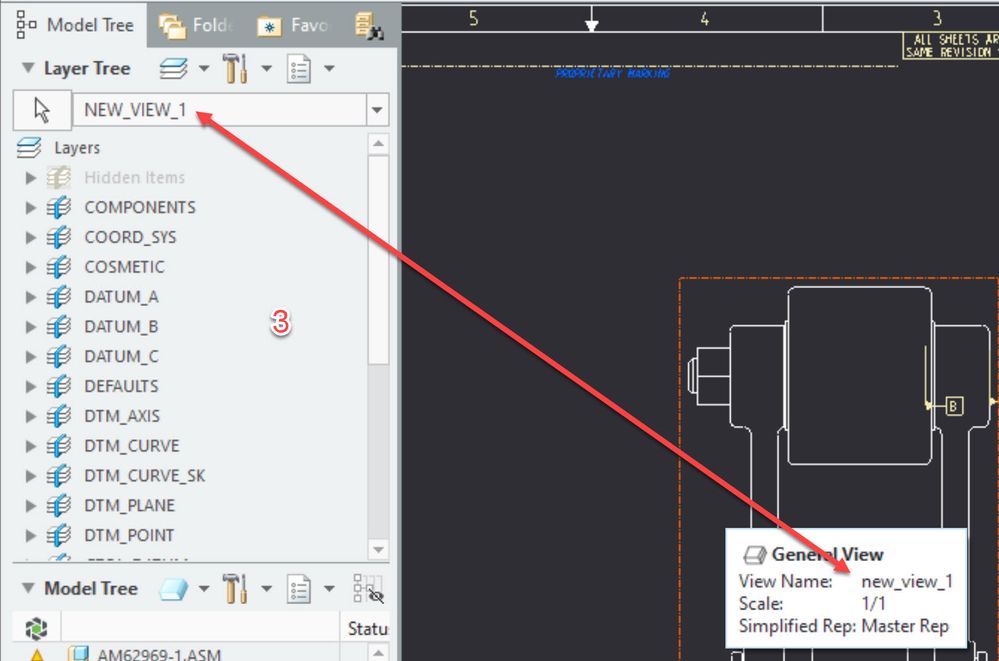

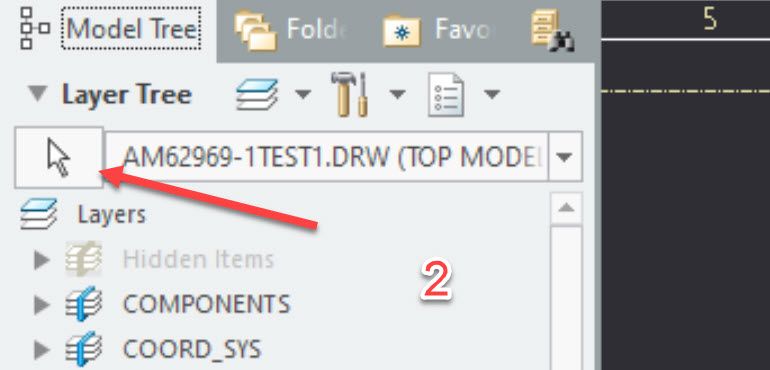

2. Use arrow to select the view

3. The view name is shown in the layer tree
