Exploded views

Hello,

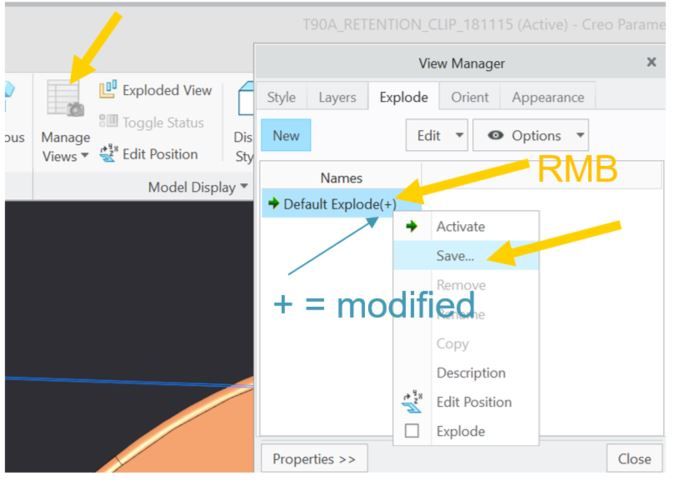

I don't undestand why Simulate don't save the exploded views...

What is the correct procedure to it?



Thank you

Labels:
Preview file
9 KB
0 Kudos
Notify Moderator
ACCEPTED SOLUTION

Accepted Solutions
SweetPeasHub
17-Peridot
17-Peridot
(To:fstopelli-2)
‎Nov 21, 2018 02:25 PM
‎Nov 21, 2018 02:25 PM


Only the active (green arrow) will show in simulate results viewing.  The exploded view must be saved and active before simulating.











View solution in original post

Notify Moderator
1 REPLY 1
SweetPeasHub
17-Peridot
17-Peridot
(To:fstopelli-2)
‎Nov 21, 2018 02:25 PM
‎Nov 21, 2018 02:25 PM


Only the active (green arrow) will show in simulate results viewing.  The exploded view must be saved and active before simulating.
