Measuring Volumes of Parts Listed in Excel

  • March 1, 2023
  • 3 replies
  • 1153 views

I have a list of ~500 part numbers in Microsoft Excel, which I need to document the volume of. Is there a way I can have Creo Parametric use the part number list in Excel to open the parts from Windchill, measure the volume and write the volume in the Excel file?





3 replies

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
March 1, 2023

You might be able to do something with trail files.  I know this can be done with SmartAsssembly (3rd party add-on).  Another option might be Nitro-BOM or Nitro-Cell.  Both of those are free and they connect Creo to Excel to do stuff.

http://simplifiedlogic.com/nitro-bom

M
MartinHanak24-Ruby III
24-Ruby III
March 1, 2023

Hi,

unfortunately there is no simple solution available OOTB.



Trail file method enables you to open ~500 parts and compute their mass properties. The results is ~500 files with .m_p extension.



3rd line in .m_p file contains requested information ... VOLUME = 1.2500000e+05 MM^3. You have to retrieve this information from ~500 .m_p files.

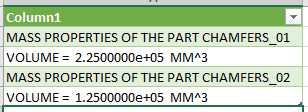

You can merge ~500 .m_p files into single file, import this file into Excel and use Excel functionality (PowerQuery) to retrieve requested information. For example:




S
SweetPeasHub17-Peridot
17-Peridot
March 2, 2023

If you can do Excel vba, I think this can be done with the vbapi toolkit that is included in the Creo installation file. I have not tried the Windchill retrieval but I remember seeing it in the documentation. There are several examples in the toolkit. I have attached my own variation and it includes a retrieval of mass properties. Once installed the documentation and examples are at a similar path to this. C:\Program Files\PTC\Creo 9.0.2.0\Common Files\vbapi. Be sure to follow all the steps getting it installed and configured.
