Drop down menu within drawing

  • October 8, 2018
  • 3 replies
  • 1769 views

Hello,



I am trying to create a drop down menu for a Parameter that pops up when you create a drawing using a Format.

I can create a drop down menu within the parameter window but not one that pops up when I create a drawing.



Any suggestions.



Thanks,

Sean

    3 replies

    B
    23-Emerald III
    BenLoosli23-Emerald III
    23-Emerald III
    October 9, 2018

    Restricted parameter text file can be used for drawing parameters.

    Or is this something else that is not explained?



    T
    23-Emerald IV
    TomU23-Emerald IV
    23-Emerald IV
    October 9, 2018

    If you're talking about this dialog, then I think you're out of luck.

    New Drawing - Enter Parameter Value.PNG

    The only places I've seen the drop down behavior work is on the parameters screen and in the model tree.

    Restricted Parameter.PNG

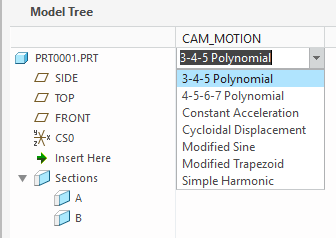

    Restricted Parameter - Model Tree.PNG

    They drop down does not work in drawing tables, notes, or prompts for a value (like in the first image.)

    B
    23-Emerald III
    BenLoosli23-Emerald III
    23-Emerald III
    October 9, 2018

    File an enhancement request that a drop down menu be available from a input parameter field when adding a template to a drawing utilizing values from an existing restricted_parameter.dat file.



    I would hate to see PTC create a new file for these drop-downs when usually the data to be populated is already in the restricted_parameter.dat file.
