Creating a pulse train out of fourier transform

  • March 4, 2021
  • 2 replies
  • 2591 views

Hey there,

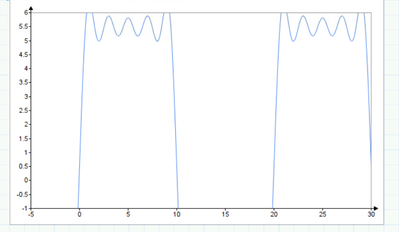

I am trying to create a pulse train of period 20 ms with a pulse width of 3ms. I am trying to use a fourier transform but I have the incorrect pulse width and I would only like to display the positive amplitude from 0 to A.




2 replies

L
LucMeekes23-Emerald IV
23-Emerald IV
March 4, 2021

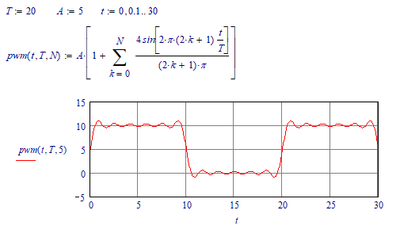

This should bring you a little bit closer to your goal:


Success!
Luc



J
JA_98033741-VisitorAuthor
1-Visitor
March 4, 2021

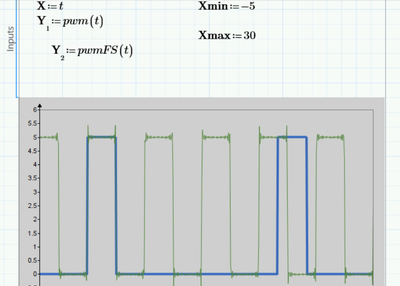

So I tried a different approach which I think is better than my first one. However, my period is wrong but the pulse width is right.

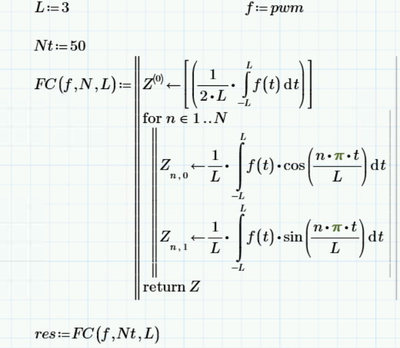

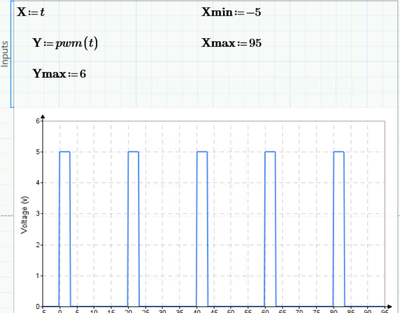

This is just a function to create a pulse signal normally using conditionals:


JA_9803374_2-1614900233125.pngJA_9803374_3-1614900275534.pngJA_9803374_4-1614900302988.png



W
Werner_E25-Diamond I
25-Diamond I
March 5, 2021

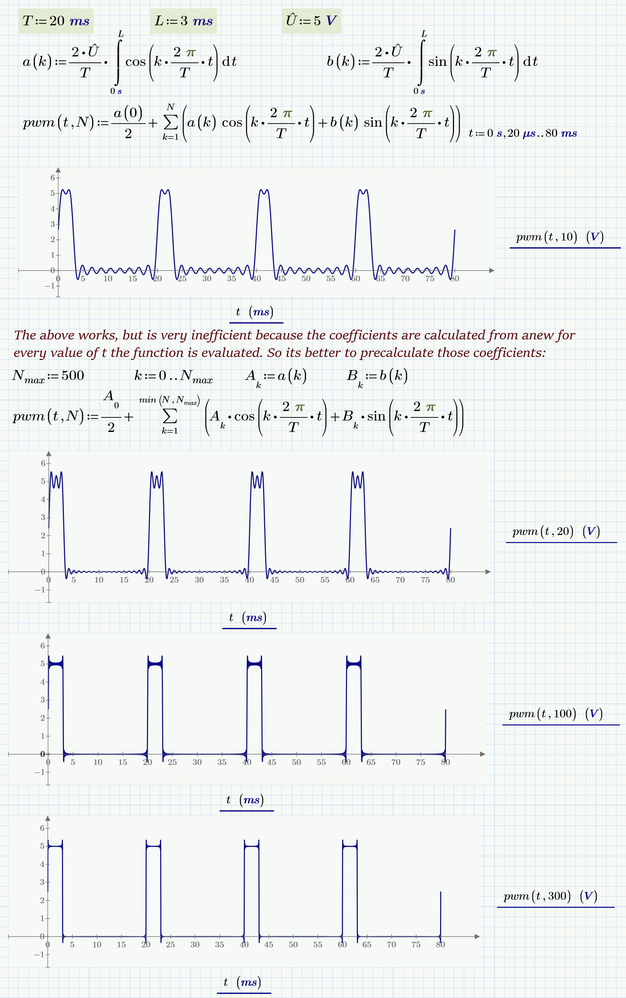

Looking for something like this?










    W
    Werner_E25-Diamond I
    25-Diamond I
    March 5, 2021

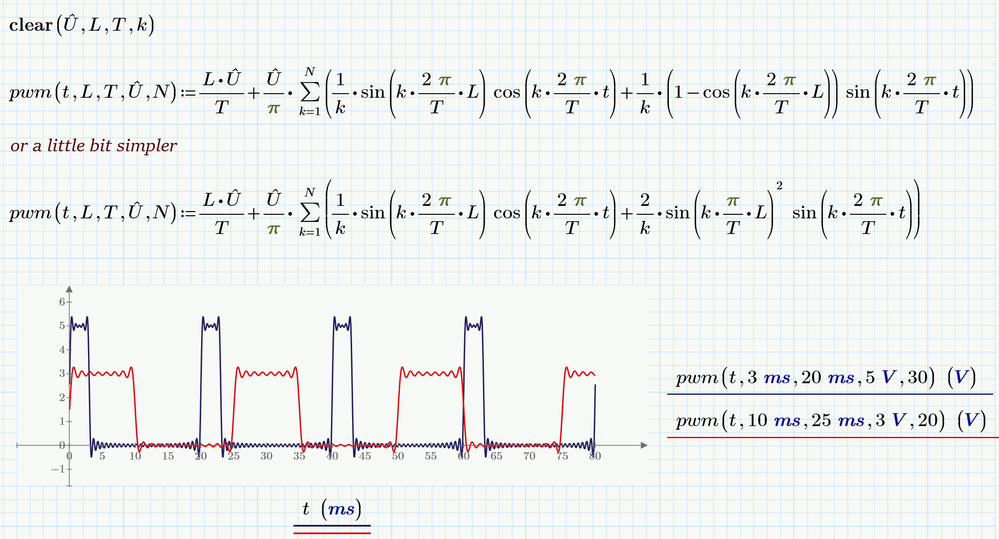

    Of course the coefficients could easily be calculated directly and so you may define a one-liner function with T, L and Û as additional arguments:
