Plot failing

Go to solution
FC_10037391
10-Marble
10-Marble
‎Sep 06, 2022 02:27 PM
‎Sep 06, 2022 02:27 PM

Plot failing

I am unable to plot with the function can somebody please help

Labels:
Function plot.mcdx
0 Kudos
Notify Moderator
ACCEPTED SOLUTION

Accepted Solutions
Werner_E
25-Diamond I
25-Diamond I
(To:FC_10037391)
‎Sep 06, 2022 02:52 PM
‎Sep 06, 2022 02:52 PM

quickplot only work with dimensionless variables.

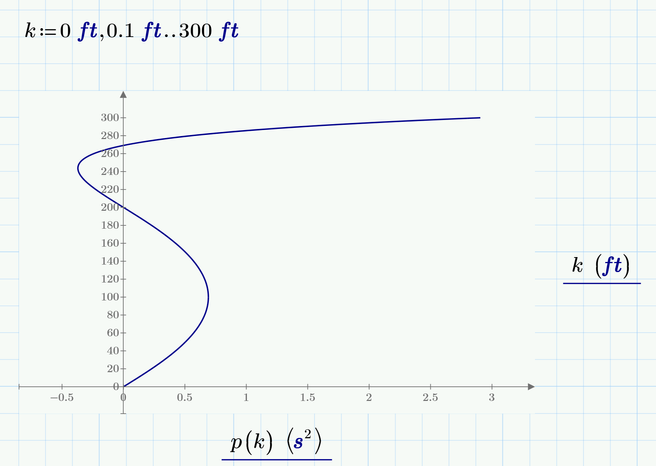

Your function argument k must be a length, so you have to define an appropriate range for k to make the plot work:




View solution in original post

0 Kudos
Notify Moderator
1 REPLY 1
Werner_E
25-Diamond I
25-Diamond I
(To:FC_10037391)
‎Sep 06, 2022 02:52 PM
‎Sep 06, 2022 02:52 PM

quickplot only work with dimensionless variables.

Your function argument k must be a length, so you have to define an appropriate range for k to make the plot work:




0 Kudos
