3D Gauge State-BasedFormatting not working

BhanuThapa
5-Regular Member

3D Gauge State-BasedFormatting not working

I tried setting 3D Gauge State-BasedFormatting but its not working. Following my observation:



1) For 2D label State-BasedFormatting on initial load image formatting is loading but at run-time if rule changes the another image not updating

2) For 3D label or Gauge State-BasedFormatting is not working. On browser console I see few error related to state code.





1 REPLY 1
BhanuThapa
5-Regular Member
(To:BhanuThapa)

Work Around



1) Created 2 images status_true.png and status_false.png

2) Added 3D Image in studio project

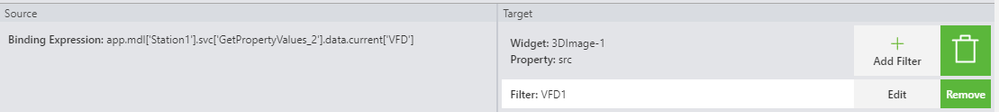

3) Mapped IoT Thing variable to Image Source


4) Added Filter VFD1

return value==0?"app/resources/Uploaded/status_false.png":"app/resources/Uploaded/status_true.png";



Result:




If someone know how to use State-BasedFormatting on 3D Gauge PTC way, please share.
