Uploading an image as a representation/visualization

N-Pyn
13-Aquamarine

Uploading an image as a representation/visualization

Hi all,



Is there any way to upload a .jpg or a .png from my computer as a representation to a WTPart or a CAD Document? We'd like to use a properly rendered product image as the visualization for our end items.



I found some old instructions which show a "Choose Input Source" tab in New Representation window, but I don't have that tab at all. Was it removed in some update? Our Windchill version is 12.0.2.4.

1 ACCEPTED SOLUTION

Accepted Solutions
HelesicPetr
21-Topaz II
(To:N-Pyn)

Hi @N-Pyn

Sure you can.



One important Condition has to be met !!!

The WTPart can not be linked to the CADDocument as a owner or an image link



Just go to the WTPart detail page add a own tab with Repesentation/Annotation



Create new Representation

Go to second wizard step and chose the UseLocalData and brows for JPG file.

Do not  care about CAD Type and CAD Name



just put there JPG file it will generate the Thubmnail.



my exapmle >D






 PetrH

View solution in original post

3 REPLIES 3
HelesicPetr
21-Topaz II
(To:N-Pyn)

Hi @N-Pyn

Sure you can.



One important Condition has to be met !!!

The WTPart can not be linked to the CADDocument as a owner or an image link



Just go to the WTPart detail page add a own tab with Repesentation/Annotation



Create new Representation

Go to second wizard step and chose the UseLocalData and brows for JPG file.

Do not  care about CAD Type and CAD Name



just put there JPG file it will generate the Thubmnail.



my exapmle >D






 PetrH

N-Pyn
13-Aquamarine
(To:HelesicPetr)

Oh that's why I didn't see that "Choose Input Source" step in new representation! All our WTParts are linked with owner link to the CAD Documents.

Thanks, we might be able to figure out some way to use some other link, or maybe add an additional item structure level to circumvent that restriction.

But is there any way to overwrite the representation of a CAD Document with an image?

HelesicPetr
21-Topaz II
(To:N-Pyn)

Hi @N-Pyn



Try the following article cs216138

Article describes how to customize and add a new wizard to create rep. from file.



I tried it and it solve the issue that can not use the OOTB wizard for JPG.

custom wizard has just input for files from local drive

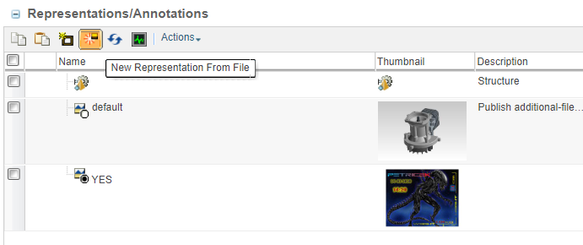

You can see an example with original visualization and new default jpg visualization




PetrH
