Embossed artwork on Cone shape?

  • March 9, 2015
  • 1 reply
  • 1254 views

I have imported artwork from AutoCAD as a feature in my model. I have projected the feature onto a revolved cone shape. I now need to show this is a raised feature on the surface. Any suggestions on the best method to accomplish this?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

P
psobejko1-Visitor
1-Visitor
March 9, 2015

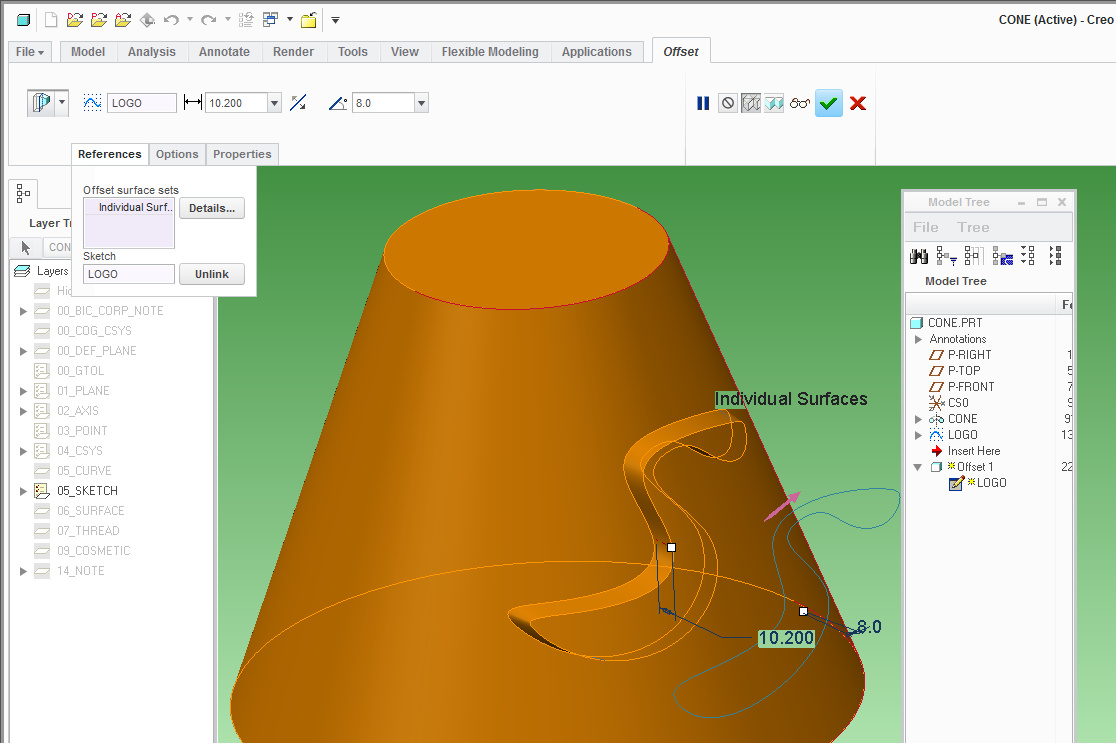

Use the "Offset" tool. Note that in the image below, the sketch "LOGO" is used as the reference. In your case, you'll use the sketch that you have projected onto the surface.

Also, I show here offset with draft in the direction of the sketch. There are many other variations available for you - experiment with type of offsets and their options.


See this thread for more info:Raised text on non-planar surfaces
