How to insert a reducing tee in SPEC DRIVEN piping mode

[ywchoi]

We want to use the Spec Driven piping module when they design. But The Spec Driven piping module have some problems.

For example,

  > Fittings in Spec Driven piping is also limited and some fitting are not supported

• SIZE ≠ NEW_SIZE
• SIZE ≠ NEW_SIZE ≠ BRANCH_SIZE
• BRANCH_SIZE > SIZE = NEW_SIZE
•

It is possible when SIZE is larger than BRANCH_SIZE(SIZE > SIZE_ BRANCH) but the opposite is not possible as BRANCH_SIZE is larger than SIZE(BRANCH_SIZE > SIZE).

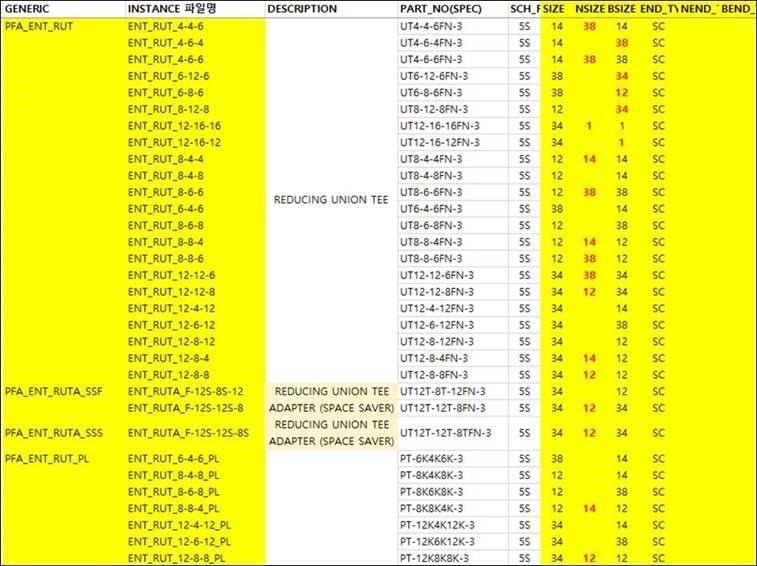

We use these fitting types (as below).

How to insert reducing tee? Please Let me know anything to do.

[jpiotrowski]

Hello,

I had opened a case for this issue (C13908562) and it's a known issue (CS273955). Unfortunately, Creo Parametric can only support a single reducing tee where the branch is different. In other words, SIZE must always equal NSIZE; only the BSIZE can be different. This is a commonly requested issue, the PTC product manager is aware of this and has scheduled this enhancement for a future release of Creo Parametric.

My company CadActive has a product, RsysConfig that makes Spec-Driven Piping easier using automation; this includes converting existing files to the new formats in Creo 4 and conforming your fittings to be "Spec-Driven" compliant. Please check out our website here for more information.

Cheers,

John Piotrowski

CadActive Technologies

Co-Founder & Product Manager
