PROBLEM IN CREATING INTERSECTION WITNESS LINE

Suri_Chevuturu
5-Regular Member

PROBLEM IN CREATING INTERSECTION WITNESS LINE

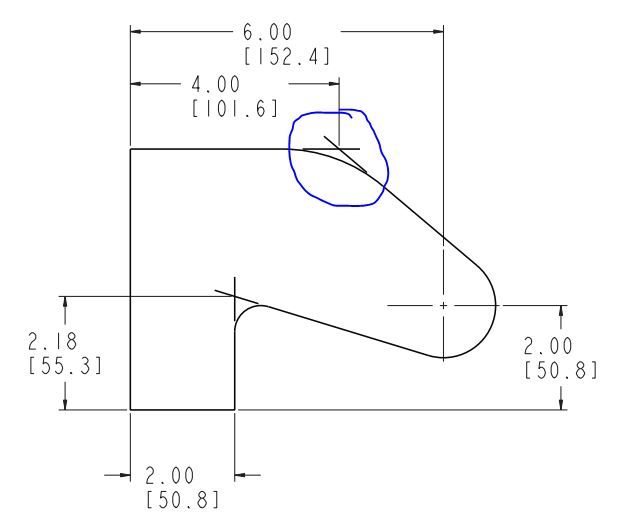

how to create this type of intersection witness lineext.JPG

1 REPLY 1

You can create intersection lines for dimensions created in the drawing.  Unfortunately you cannot do it for dimensions created in the model and then shown on the drawing.



For Creo 4.0:

  • select dimension
  • click "display" button
  • select "enable intersection witness lines" checkbox

For Creo 2.0:

  • select dimension
  • right click and select "properties"
  • select "display" tab
  • select "enable intersection witness lines" checkbox
