Where/what is the default pen lneweight settings when saving to a pdf without using a pentable?

  • March 25, 2019
  • 3 replies
  • 7917 views

I'm reconfiguring our practice of saving a drawing as a pdf.  I've set up a pentable which seems to be working ok.  I'd like to be able to see what the lineweight settings are for the pens when not using a pentable.  Is there a location or option for this in Creo 2.0?  I see that the config options for the pens (ex: pen1_line_weight) refers to an electrostatic plotter, which I take to be our ink plotter.  The only options I see and am using that refer to pdfs are pen_table_file and pdf_use_pentable.

Best answer by MartinHanak
@BriGuy wrote:

Is the idea of this to create a .plt file? If so, we have printer options which can create a .plt file.  I can also create a .ps file.  Either way, neither type of files give me any information regarding PW commands.

Hi,

yes when I create plt file, I can read line widths in it.

How to ...

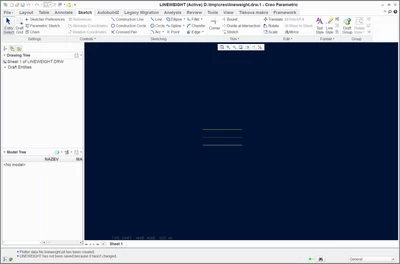

1.] open drawing

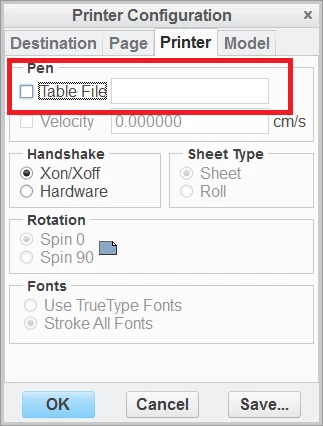

2.] File > Print




3.] open plot file in Notepad++

original file

%0BBPINCR;NP;WU0;SP1;LA1,1,2,5;IP-680,-199,11200,8200SC;PA;LT;LT;PW0.508
PC1,0,0,0;LT;UL6,60.0,40.0LT6,1.8,1;PW0.254PC1,0,0,0;PUPA3320,4200PDPA
5320,4200LT;PW0.127PC1,0,0,0;PUPA3320,4600PDPA5320,4600PW0.508PC1,0,0,0;PUPA
3320,3800PDPA5320,3800RO;IW;SP0;PG;

modified file



%0BBPINCR;NP;WU0;SP1;LA1,1,2,5;IP-680,-199,11200,8200SC;PA;LT;LT;PW0.508
PC1,0,0,0;LT;UL6,60.0,40.0LT6,1.8,1;

PW0.254PC1,0,0,0;PUPA3320,4200PDPA5320,4200LT; ... hidden color ... 0.254 mm

PW0.127PC1,0,0,0;PUPA3320,4600PDPA5320,4600 ... letter color ... 0.127 mm

PW0.508PC1,0,0,0;PUPA3320,3800PDPA5320,3800 ... geometry color ... 0.508 mm

RO;IW;SP0;PG;





3 replies

M
MartinHanak24-Ruby III
24-Ruby III
March 26, 2019

Hi,

pen_table_file and pdf_use_pentable are the only options I know.

See also http://support.ptc.com/help/creo/creo_pma/usascii/#page/data_exchange%2Finterface%2FDefault_Pro_ENGINEER_System_Colors.html, you can find there names of colors you can use in pentable file.

See http://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/fundamentals/fundamentals/fund_two_sub/Example_table_pnt_File.html

B
BriGuy12-AmethystAuthor
12-Amethyst
March 26, 2019

Thanks Martin.  Yeah, I've looked at those already.  Just can't find what Creo has for a default value for the pens when not using a pen table.

M
MartinHanak24-Ruby III
24-Ruby III
March 26, 2019
@BriGuy wrote:

Thanks Martin.  Yeah, I've looked at those already.  Just can't find what Creo has for a default value for the pens when not using a pen table.

Hi,

if you are interested in finding default pen widths then I suggest you following procedure:

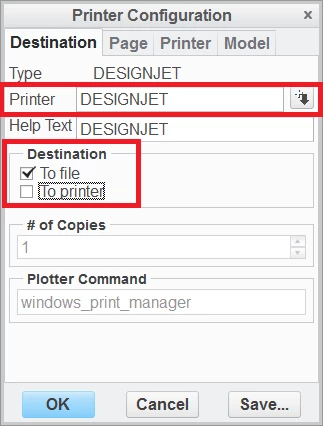

  • set DESIGNJET plotter as output device
  • export drawing into plot file
  • open plot file in Notepad
  • look for PW commands (eg. PW.025 means 0.25 mm width)



T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
March 26, 2019

Probably not super precise, but measuring a PDF containing lines of each pen type shows three line widths in use:

  • 0.125 mm (.005 in)
  • 0.375 mm (.015 in)
  • 0.500 mm (.020 in)

See attached PDF.

Note:

  • This PDF was created with Creo Parametric 6.0
  • Even though the PDF refers to 8 pens, the config option 'use_8_plotter_pens' was set to 'no' when this PDF was created.
B
BriGuy12-AmethystAuthor
12-Amethyst
March 26, 2019

A couple of questions.  How did you create this pdf?? Also, do you have a pen table assigned or is pdf_use_pentable set to No.

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
March 26, 2019

I have a format built with all this stuff on it for testing pen table settings.  When generating this PDF no pen table was used or present and 'pdf_use_pentable' was set to 'no'.

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
March 29, 2019

I did some more testing.  Here is what I'm seeing in Creo Parametric 6.0:

  • If line width is set to zero (default), then pen table values will be used.
  • If no pen table is present, Creo default values will be used.

Default Pen Table Values (inches)

Default Pen Table Values.PNG

Default Pen Assignments

Default Pen Assignments.PNG

Note:  The use of 4 or 8 pens is controlled by the config option use_8_plotter_pens.
