Laminate Layup and Simulate Results

ptc-387617
3-Visitor

Laminate Layup and Simulate Results

We have found problems when analyzing FEM results of laminate layups. The problems occur when you have forces in normal direction of a laminate layup. I will show a simplified model below to show you the problem and then I hope you can guide me to a solution.

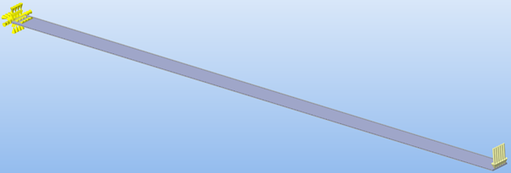

Model: Composite beam. Fully constrained at one side and a normal force of 10 N at the other side. A surface of 20 mm width x 600 mm long is creating the test object. This surface is simplified as a shell with a composite laminate attached to it.

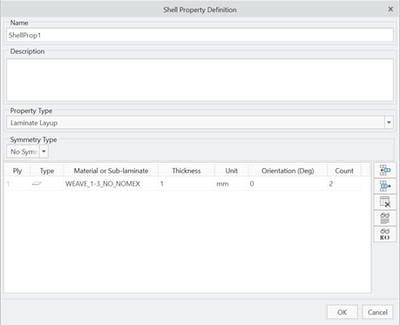

The laminate consists of two 1 mm layer.

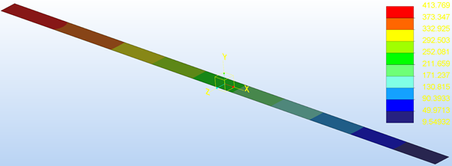

Results according to von Mises shows:


Same stresses as hand calculations are obtained (225 MPa at the middle of the beam). No problems so long.



Now to the problem. When you are running a composite analyze you want to analyze the results in failure-index, not von Mises. Failure-index compares tensile and compressive stresses against specified limits in the material data.

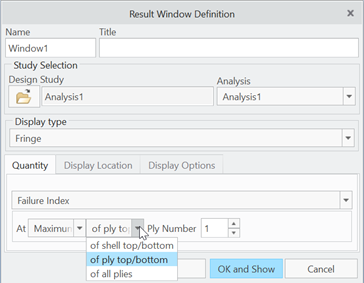

Following is obtained when showing maximum failure-index results at all plies:

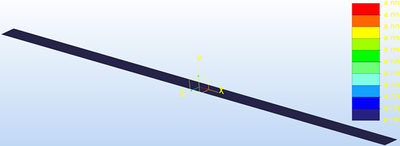

Failure index = 0 at the hole beam.



Following is obtained when showing maximum failure-index results at ply 1:

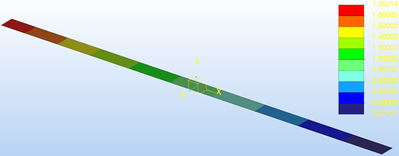

Failure index = 0.9 at the center of the beam. Correct value in compression (225/250 = 0.9).

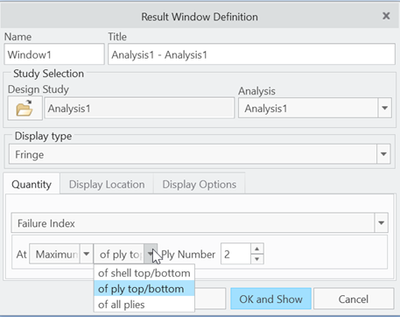

Following is obtained when showing maximum failure-index results at ply 2:



Failure index = 0 at the hole beam.



Changed force direction:

If I change the direction of the force, to opposite direction, following results are obtained.

  • Same results when looking at all plies.
  • Ply 1 is changed from compression to tensile. A new Failure Index is generated of 0.45 (225/500), at the middle of the beam. The value is correct according to tensile limit.
  • Same results when looking at ply 2.

Conclusion:

  • Failure Index – Maximum – of all plies: do not find the highest Failure index.
  • Failure Index – Maximum – of ply top/bottom – Ply Number 2: is not analyzing both sides of the ply, even when it says “of ply top/bottom”. It should give a Failure Index of 0.45 (225/500).
  • Different results when flipping force direction. From compressive to tensile.

Question:

Does anyone understand why Creo is generating these results? We really hope we can find a logical explanation to be able to rely on future results. We really appreciate all the help we can get!
