Universal Joint analysis in MDO

XDN
13-Aquamarine
13-Aquamarine

Universal Joint analysis in MDO

Hello

I try to analysis universal joint (Cardan's joint) in MDO

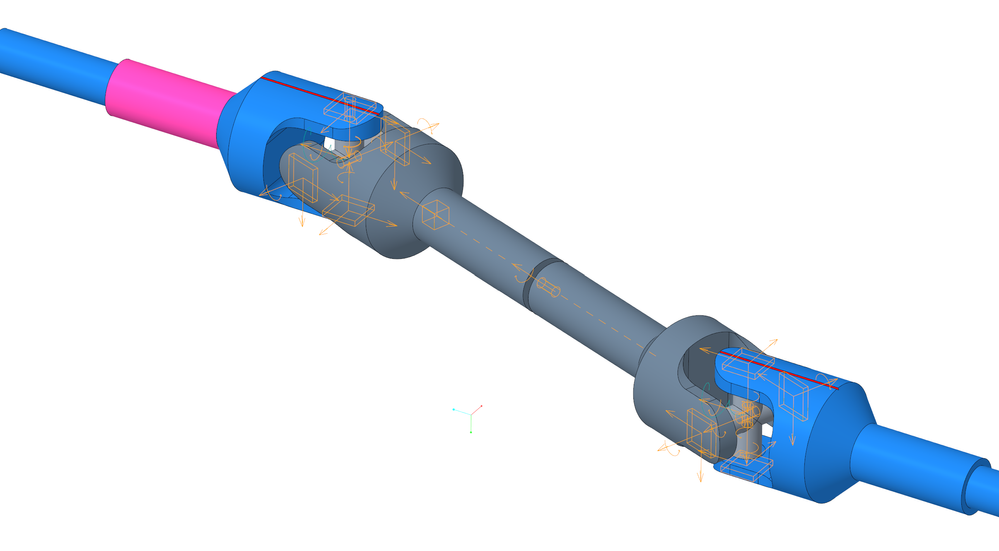

the mechanism is composed with 2 universal joint, i have a slide between U joint.

on enter shaft, i use a speed servomotor

on exit shat, i use a torque servomoteur

It'OK,  a speed and torque values are consistent



But, for design the bearing betwenn cross and fork, i need to calculate the forces on cross

of course, this force is torque/ fork radius (tangential force)

I would like to find this result with the Creo's measures, but i can't do it!








2 REPLIES 2
XDN
13-Aquamarine
13-Aquamarine
(To:XDN)

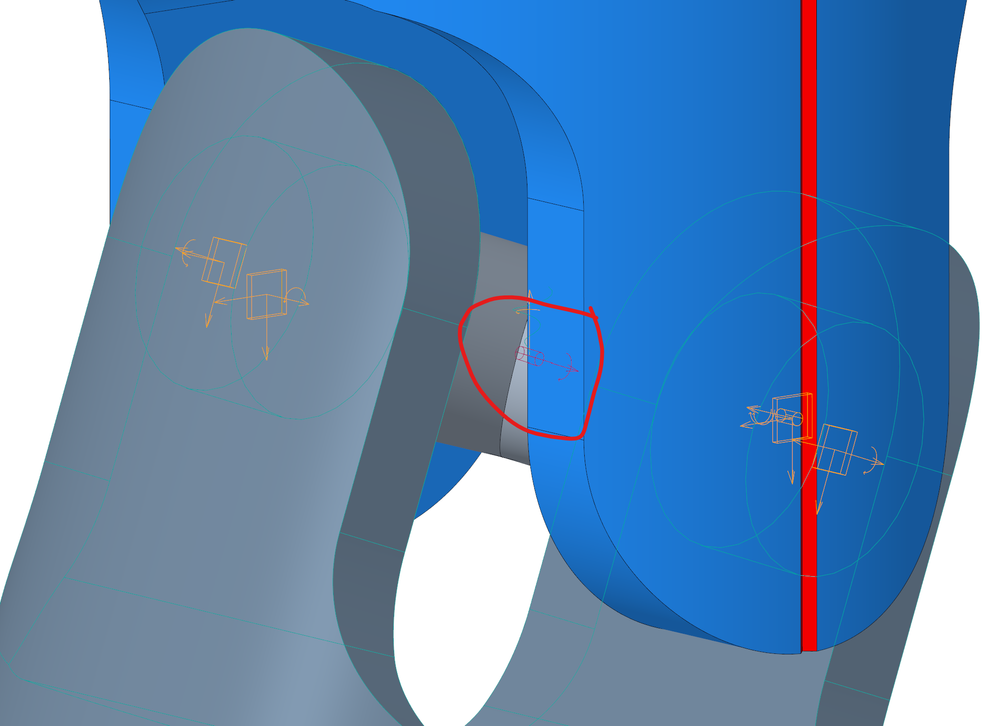

in pivot link (red circle) link betwen fork and cross

Creo fin a right torque value, if i ask a radial torque of this link.

logically, if i ask a radial force of this link ( axial is not possible with my link) he has to give me 3600N approximately.

But it's wrong! Creo return 0.05N

someone has an idea??



For this step, i don't use external load







and he give me

XDN
13-Aquamarine
13-Aquamarine
(To:XDN)

I don't find my error !!

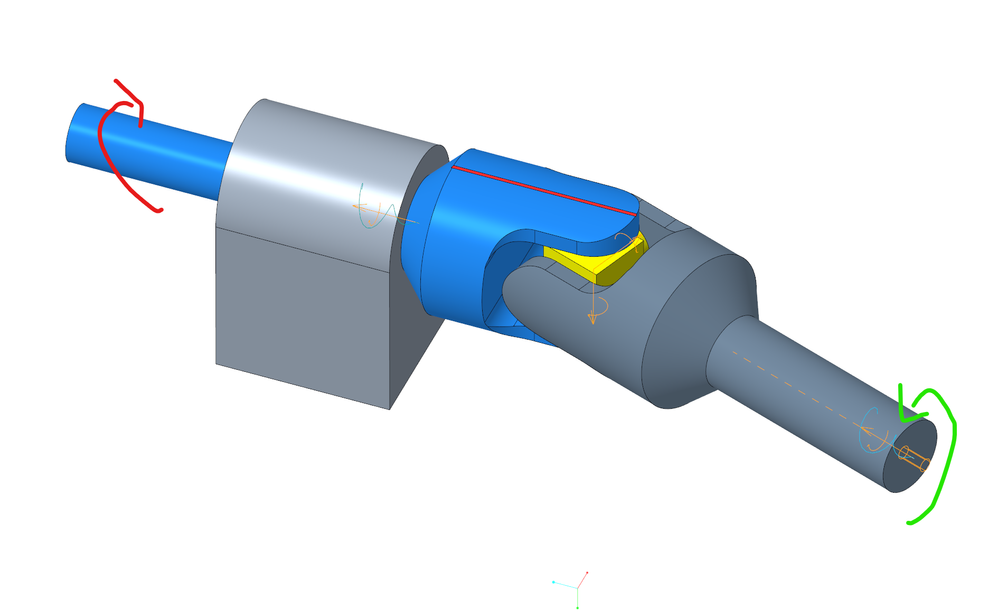

now, i create a simplified model.

I use 1 universal joint

red arrow = servomotor constant speed

green arrow = servomotor constant torque

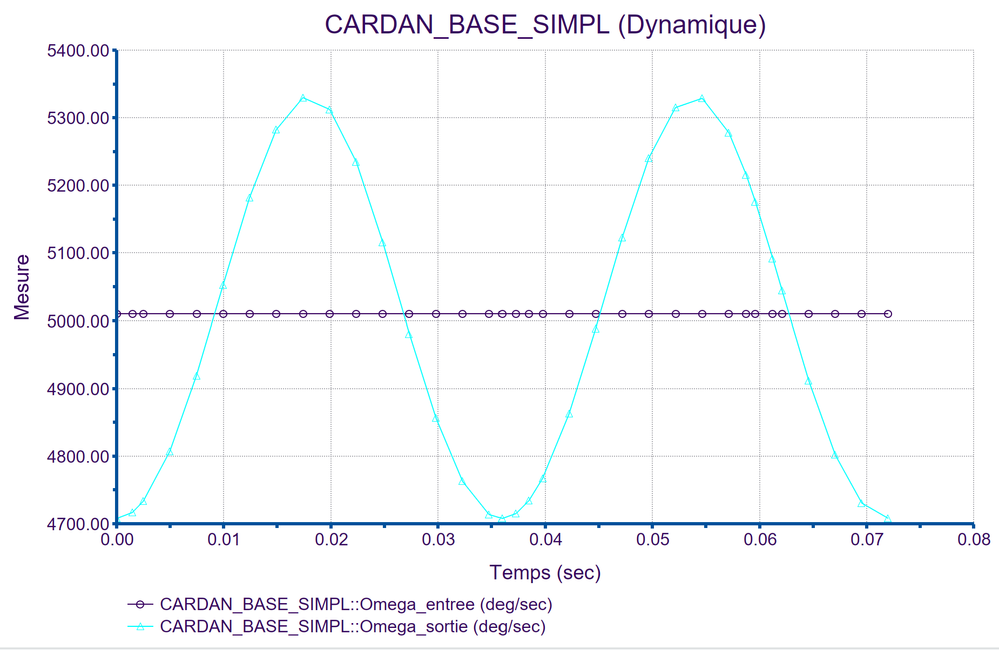

when i run simulation i find speed and torque oscillate. of course it's OK because this joint are not

homokinetics in single use.

now my problem, i want to calculate tangentiel load on yellow cross (for design ball bearing for yellow cross)
the only way i find is to create a personnal measure.
first : Creo calculate a radial torque
second, my measure divides the radial torque with radius of application point

i don't understand how to use Creo for calculate this with reaction restriction....
