How to make @S DIMENSION AS BASIC DIMENSION?

SOLVED
Highlighted
Participant

How to make @S DIMENSION AS BASIC DIMENSION?

OVERRITED.jpg NEED TO CREATE BASIC @S DIMENSION. HOW TO DO SAME.

ALSO SUGGEST FOR @O BASIC DIMENSION.

Creo

1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

For a dimension set to @S, you should be able to just click the basic radio button in the display tab for the dimension properties.


For @O you can add @[ and @] before and after your text like this:

@O@[YOUR TEXT GOES HERE@]

View solution in original post

15 REPLIES 15
Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

For a dimension set to @S, you should be able to just click the basic radio button in the display tab for the dimension properties.


For @O you can add @[ and @] before and after your text like this:

@O@[YOUR TEXT GOES HERE@]

View solution in original post

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

Hello Chris

Thanks for reply;

For @s its only taking whatever mention in name it wont allow spaces.

I need to mention DIM C so I am mention Name as C & in description I am writing DIM @S

It results DIM BASIC C not BASIC DIM C.

Please try with same . I am forcing @S because it will not give any error while running MODELCHECK regenerate.

For @O it is showing : Owerrited dimension as a warning

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

I think it is ASME Y14.5 that controls this (although I could be wrong). This behavior is intentional to comply with a standard. Only the dimension gets boxed. If you want something else you need to use the @[ and @]

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

Thanks Chris;

It helps me a lot

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

If you add "dim" to the prefix box, it puts it inside the basic box.

OR

use the coding mentioned by Chris

@[DIM @S@]

to get the desired result without using the basic toggle


Steve Williams
Pro/E Version 15/16 (Circa 1995/1996)
Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

Thanks Stephen;

Helps me a lot

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

If either of those we correct. Go ahead and mark it as correct, for those who may search on this topic and find this thread.

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

Hi,



is it possible to show both the @S and the @D?

That is, let's say I have a dimension named d71 which values 750 mm, could make it displayed like "d71 = 750" ?



Thanks

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

I don't think you can show both, it's always one or the other.

If you was doing it, I might add a drawing dimension to use as the value in shown dimension (using the @s)

@s=&ad### where &ad### is the symbol of the created dimension. I think that might work.


Steve Williams
Pro/E Version 15/16 (Circa 1995/1996)
Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

It is not possible to show both @S and @D you can however add a relation to set the value equal to a parameter or to set another dimension equal to the same and then show the parameter or second dimension.

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

Thanks Stephen and Chris.



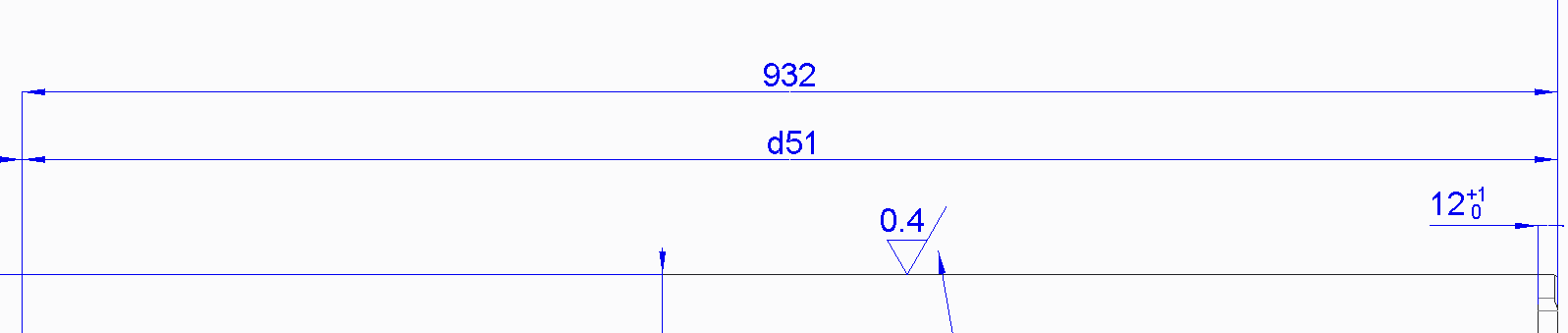

I have put the two parameters in two different dimensions, like this:






Is this what you were meaning?

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

This is what I was refering to with respect to a created dimension.

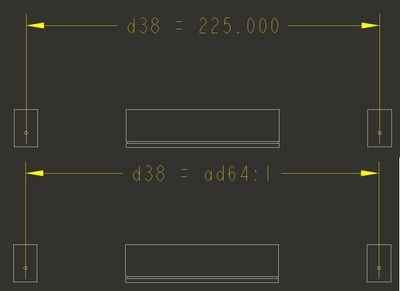

The @S ("shown " dimension) is d38  and the created dimension is ad64

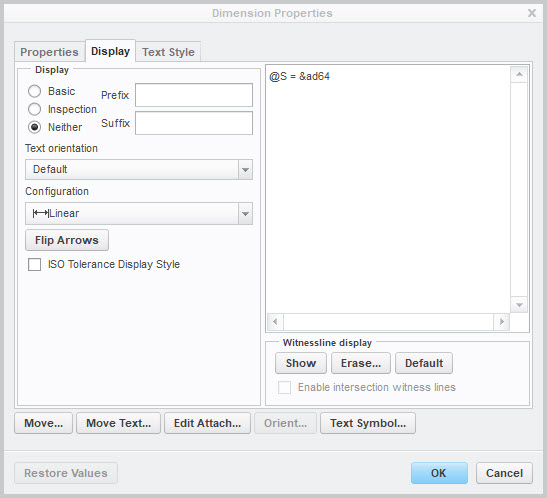

In the properties of the shown dimension, @s = &ad64

dim and symbol.jpg





Steve Williams
Pro/E Version 15/16 (Circa 1995/1996)
Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

Hi Stepehen,



ok now I got what you mean, thanks. So I should keep the ad64 dimension in order to display the other d38=225.

I was wondering whether it was possible to have just one dim displaying d38=225.



bye

Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

You can't show both the symbol and the dimension without some other trick. Chris' method of createding a parameter that is equal to the dimension and adding that to the text would work well too.



You don't have to display the created dimension, just don't delete it. You can erase it.


Steve Williams
Pro/E Version 15/16 (Circa 1995/1996)
Highlighted

Re: How to make @S DIMENSION AS BASIC DIMENSION?

Hi Stephen,



yes indeed I could erase it, I didn't think about this option.

I was thinking more to the dimension referencing its own value (and not an external one).



Thanks
