Plot with 2 axes - help please!

ValeryOchkov
24-Ruby IV

Plot with 2 axes - help please!

Why I cannot create the plot with second axis?


1 ACCEPTED SOLUTION

Accepted Solutions

5 REPLIES 5

The file you provide does not work


Hmmm!

All is ok by me!

Try please one more!

Have tried a couple of times - always the same error.



Try to create a simplified worksheet without your "cloud" functions which also shows the plot error.

We must do so:

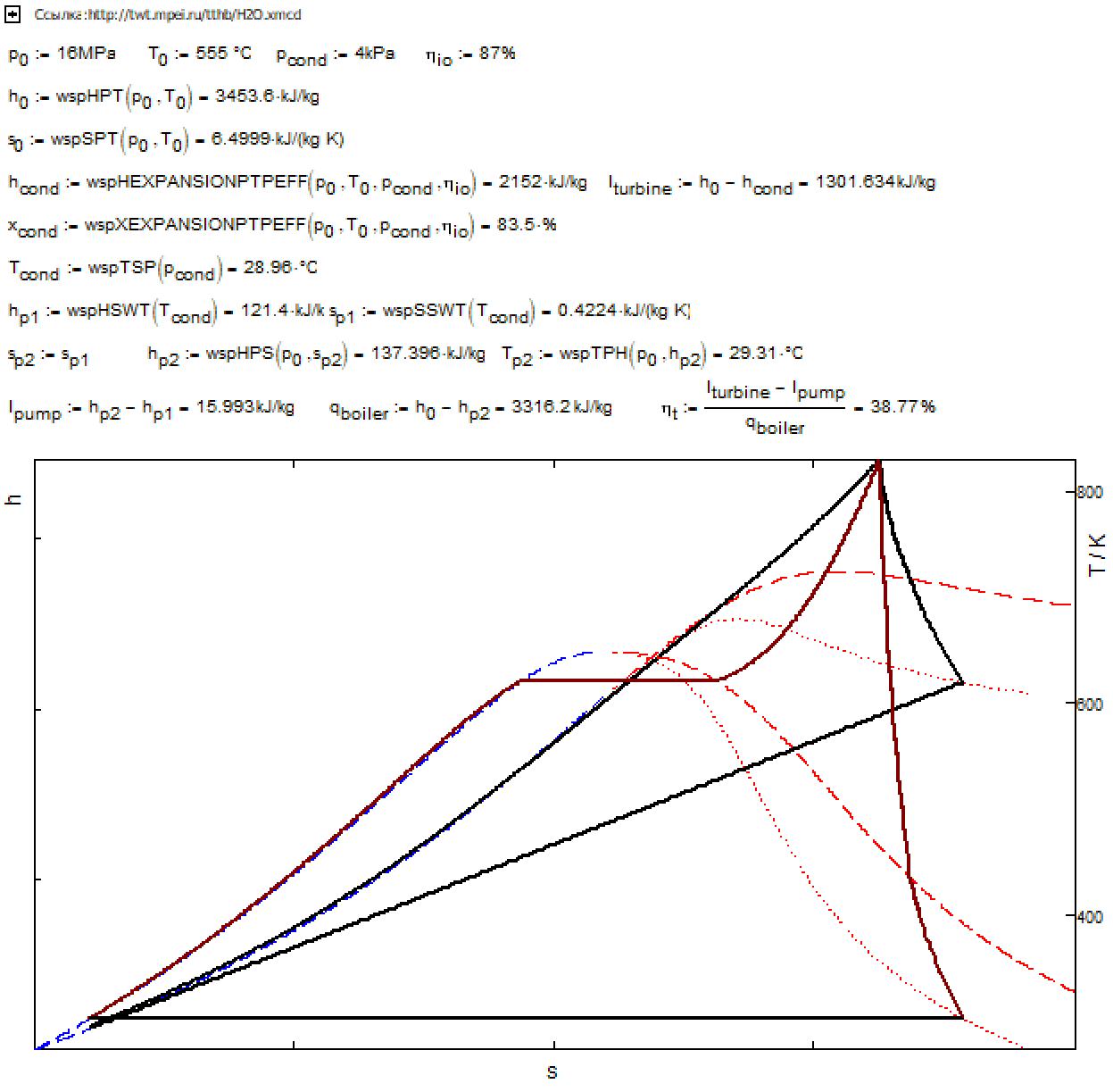

There are a h-s (Mollier) and T-s diagrams of Thermal cycles!

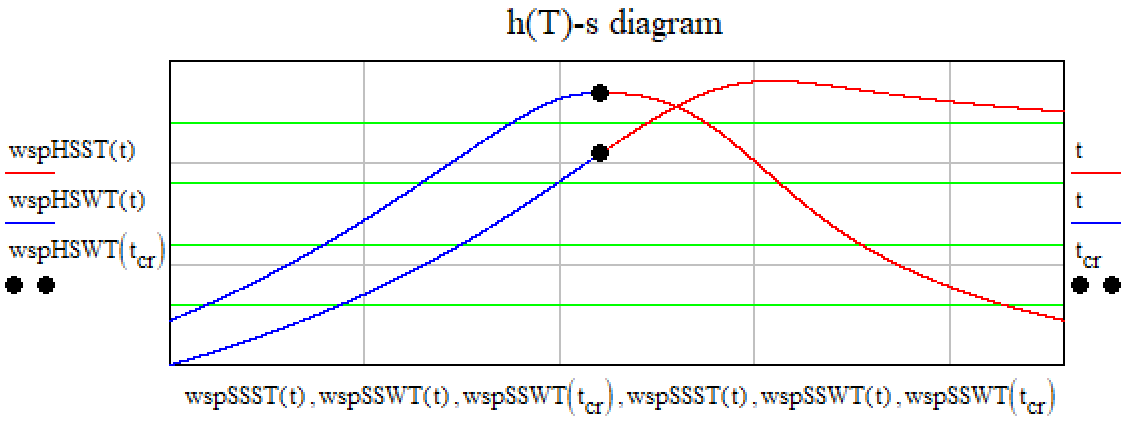

We can use also a h-T-s diagram in Mathcad 15
