Solve diagonal resistance of resistor mesh.

SOLVED
ttokoro
17-Peridot

Solve diagonal resistance of resistor mesh.

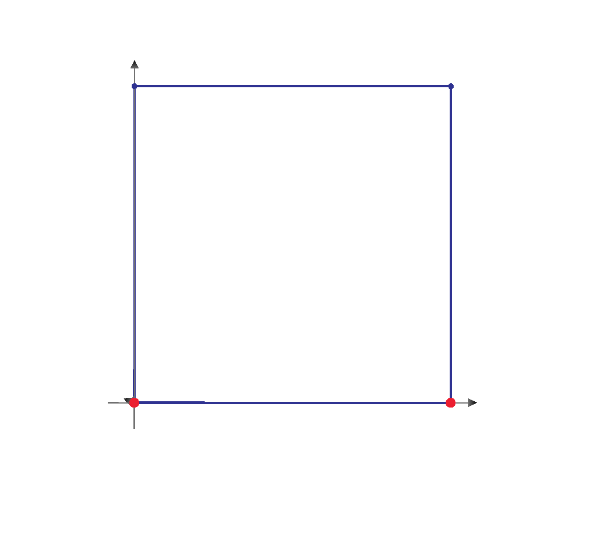

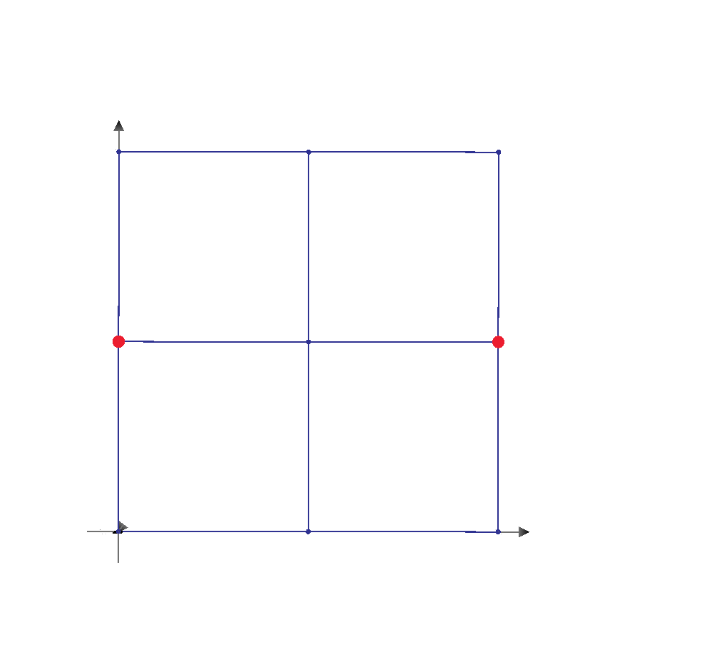

R(1*1)=1, R(2*2)=3/2. How about R(3*3),R(4*4) and R(5*5)?

1 ACCEPTED SOLUTION

Accepted Solutions

Approximate expression of diagonal resistance of x*x resistor mesh by Mathcad Prime 6.0.



View solution in original post

24 REPLIES 24

May be it will help you!May be it will help you!

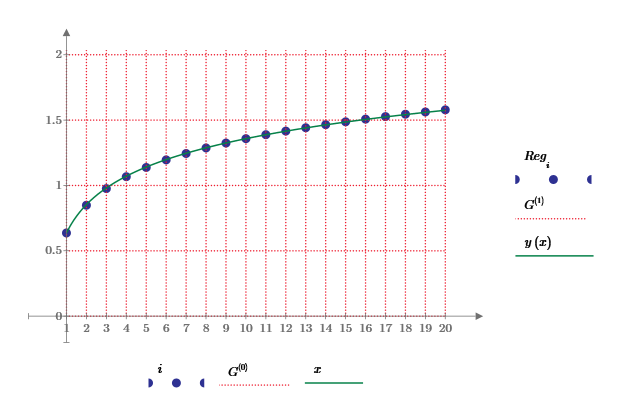

Approximate expression of diagonal resistance of x*x resistor mesh by Mathcad Prime 6.0.



View solution in original post

ttokoro
17-Peridot
(To:ttokoro)

Approximate expression of diagonal resistance of (0,0)-(x,x) of infinity resistor mesh by Mathcad.


ttokoro
17-Peridot
(To:ttokoro)

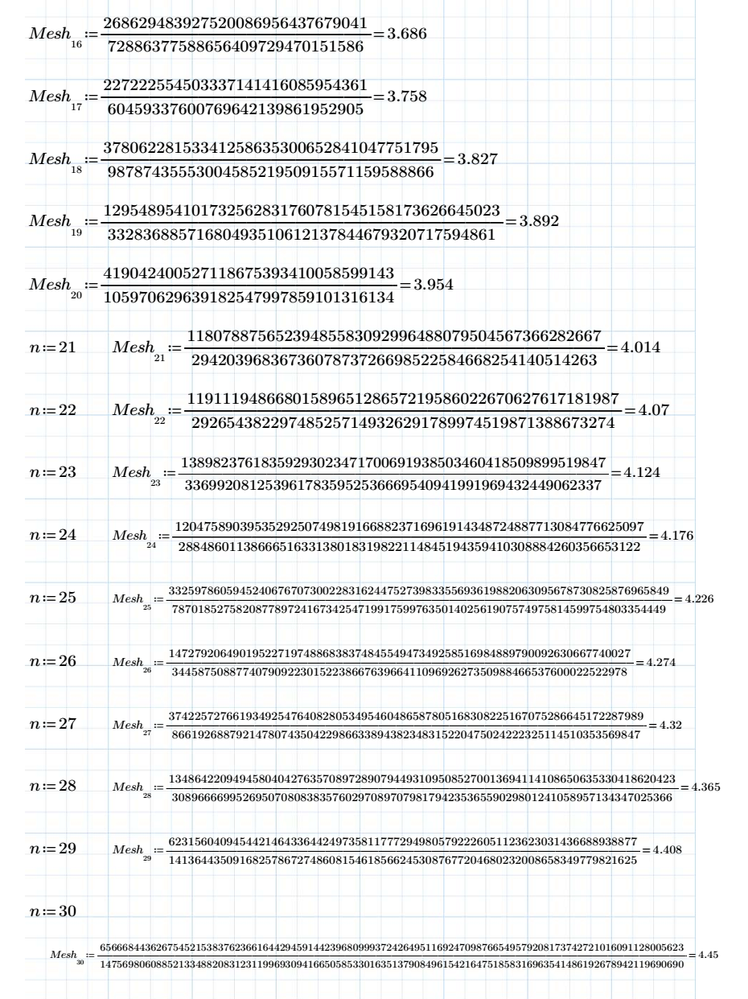

The answers from 16x16 mesh to 30x30 mesh.


ttokoro
17-Peridot
(To:ttokoro)


ttokoro
17-Peridot
(To:ttokoro)

4*4,5*5,6*6,7*7,8*8=


ttokoro
17-Peridot
(To:ttokoro)

ttokoro
17-Peridot
(To:ttokoro)

Resistor mesh of 50x50


ttokoro
17-Peridot
(To:ttokoro)

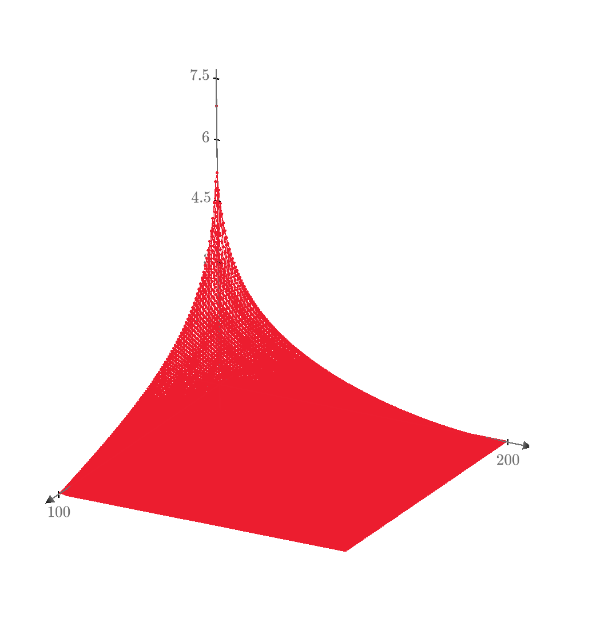

Resistor mesh of 200x200. This is my limit of evaluation of Mathcad Prime 6.


ttokoro
17-Peridot
(To:ttokoro)

250x250





ttokoro
17-Peridot
(To:ttokoro)

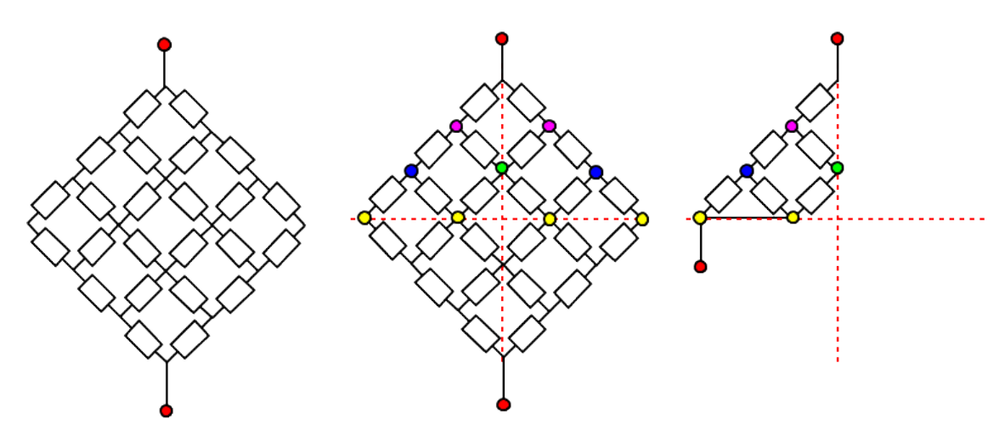

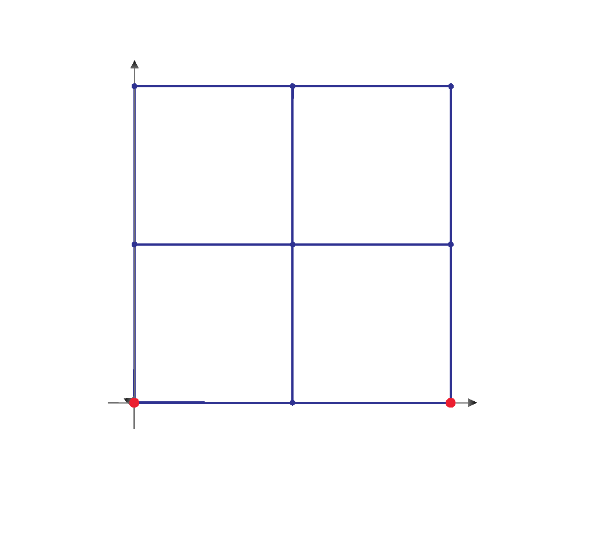

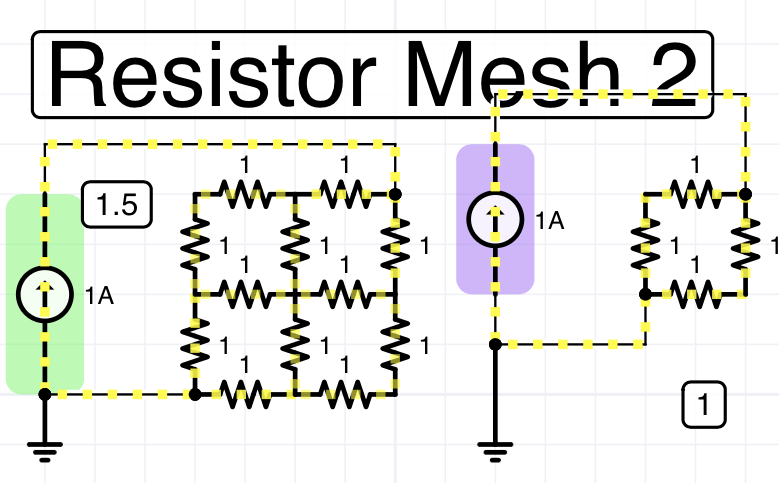

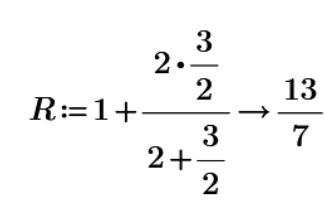

Solve diagonal resistance of resistor 2*3 mesh. This is good question for university students.


ttokoro
17-Peridot
(To:ttokoro)




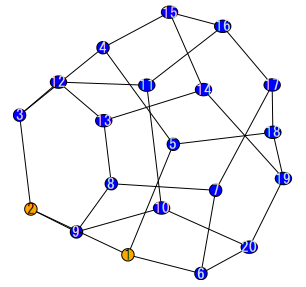

ttokoro
17-Peridot
(To:ttokoro)


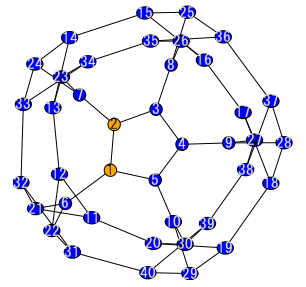

ttokoro
17-Peridot
(To:ttokoro)


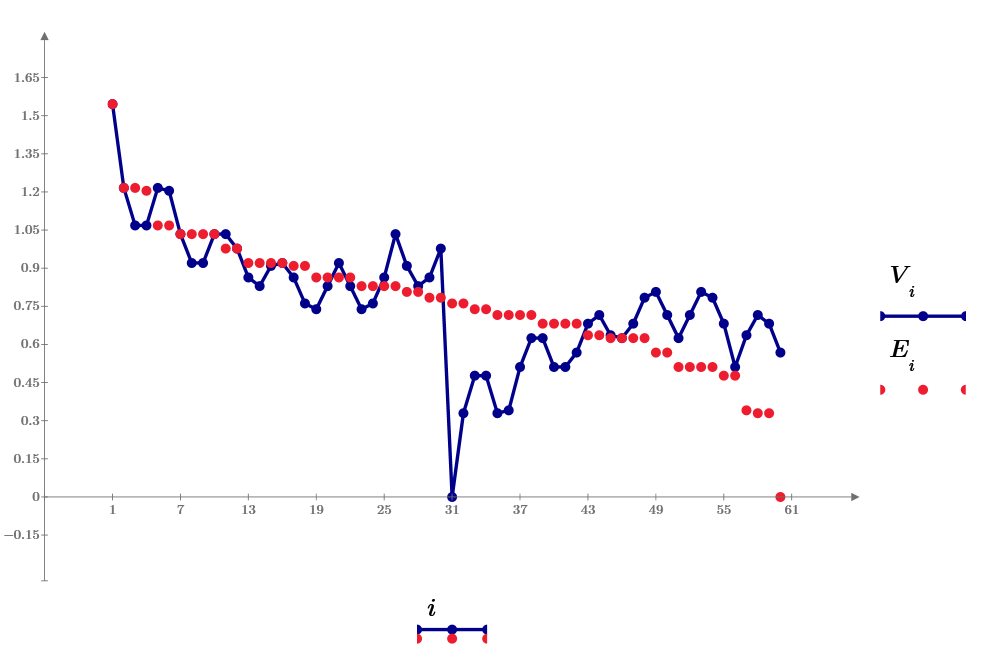

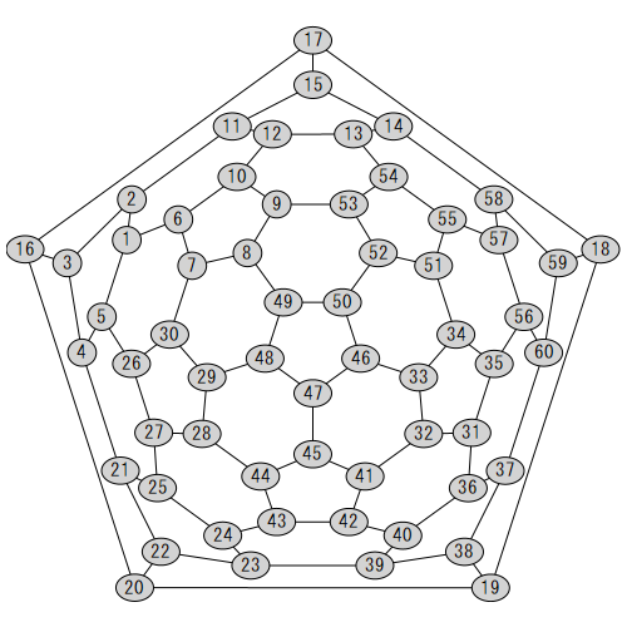

ttokoro
17-Peridot
(To:ttokoro)

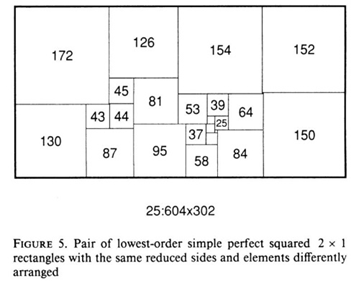

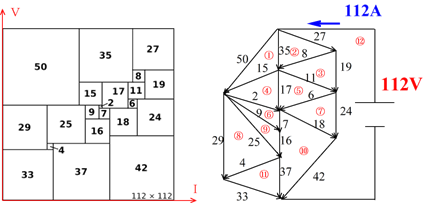

A. J. W. Duijvestijn, "SIMPLE PERFECT SQUARED SQUARES AND 2 x 1 SQUARED RECTANGLES OF ORDER 25" Math. Comp. 62 , pp. 325–332, 1994.

ttokoro
17-Peridot
(To:ttokoro)

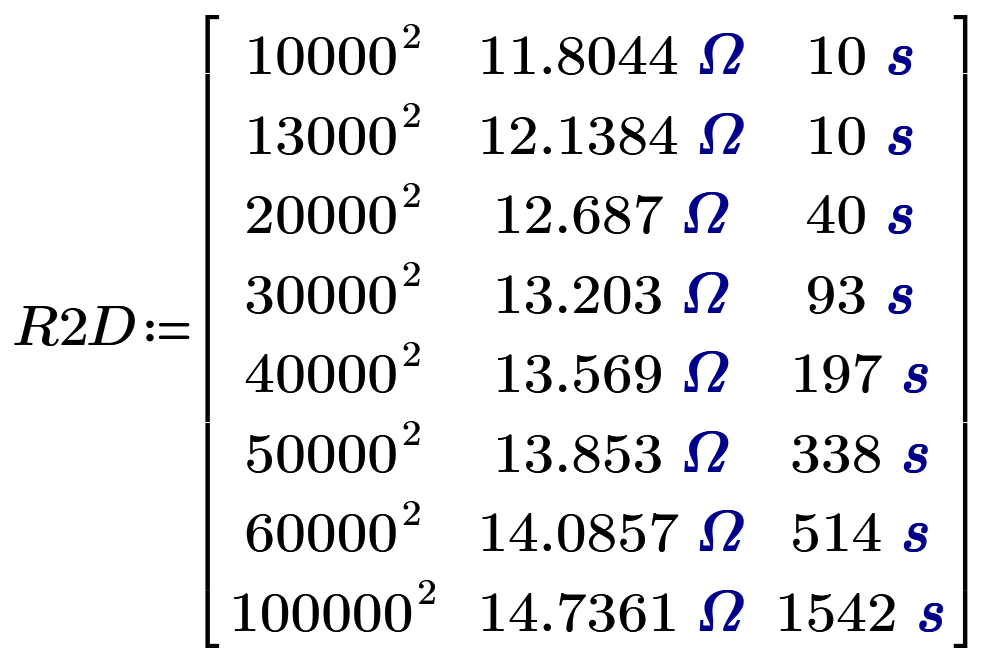

R2D(10000*10000)=11.804

R2D(20000*20000)=12.687   ohm.

ttokoro
17-Peridot
(To:ttokoro)



Diagonal resistance of resistor mesh 50000x50000 is 13.854 ohm. 20 min. to solve the mesh.

ttokoro
17-Peridot
(To:ttokoro)

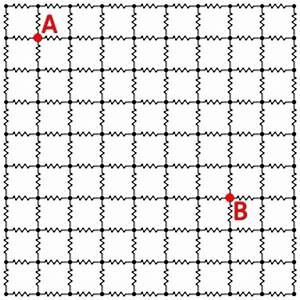

Now all 2D resistor mesh electric circuits are solved. Not only diagonal resistance but also any two point of nodes of the circuit.


ttokoro
17-Peridot
(To:ttokoro)

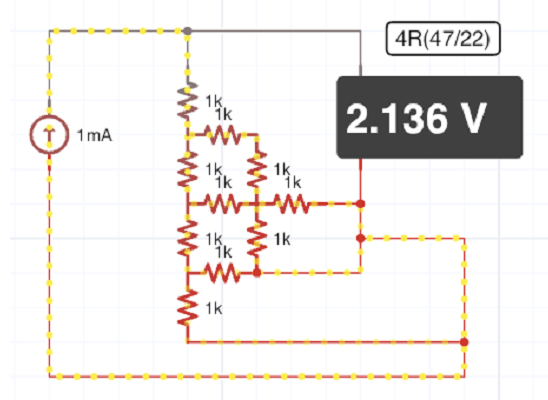

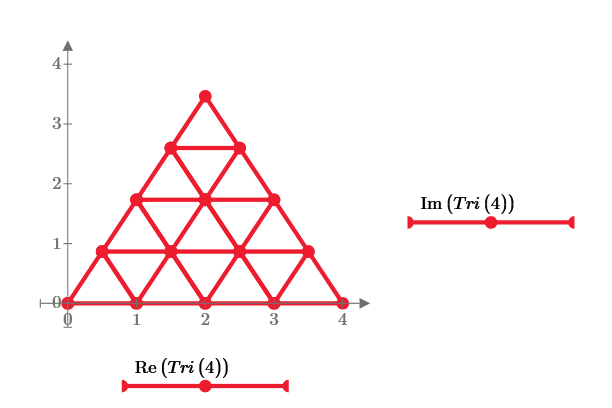

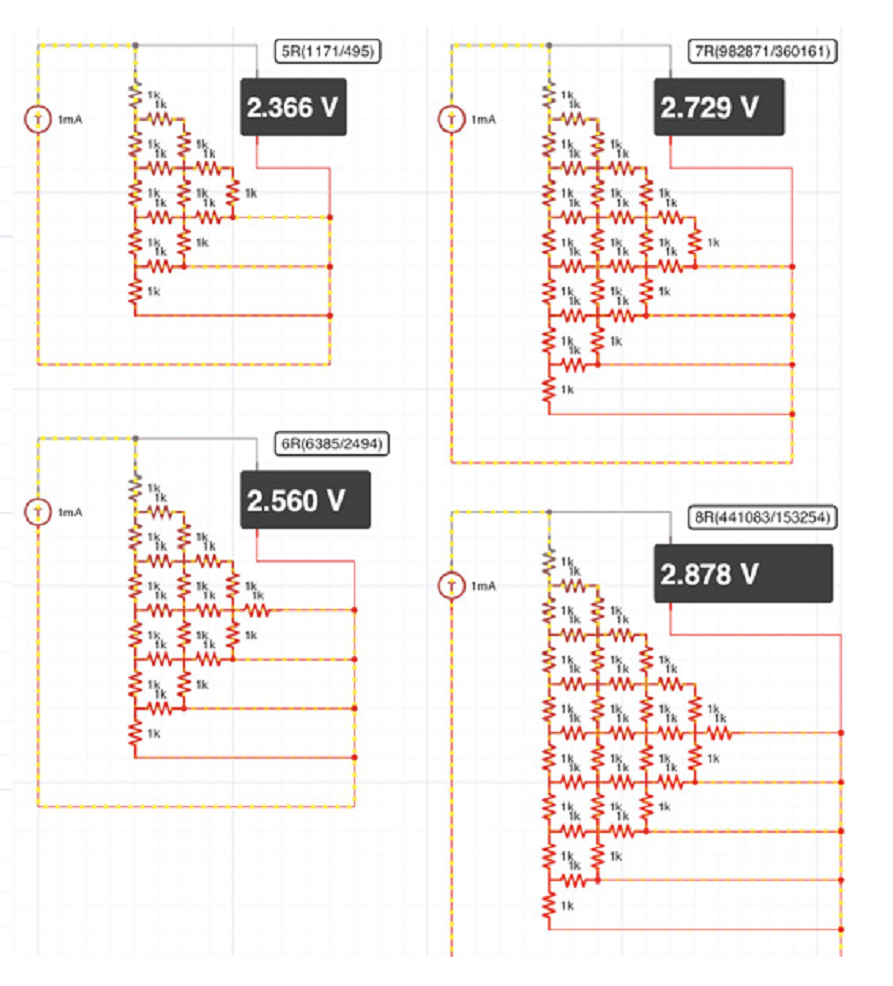

Diagonal resistance of Triangle resistor mesh of 1 ohm.

n=1 blue is 1*2/(1+2)=2/3 ohm.

n=2 green is 10/9 ohm.

n=3 red is 10/7 ohm.

Do you know the answer of n=4 ?  The resistance of node (0,0) to (4,0).




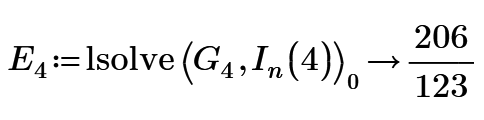

ttokoro
17-Peridot
(To:ttokoro)


ttokoro
17-Peridot
(To:ttokoro)

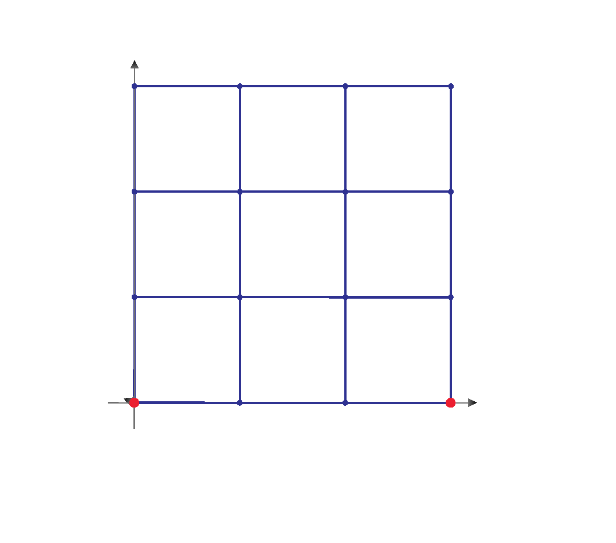

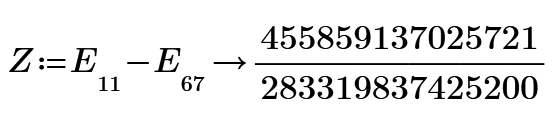

Can you solve the (0,0)-(3,0) resistance?

ttokoro
17-Peridot
(To:ttokoro)

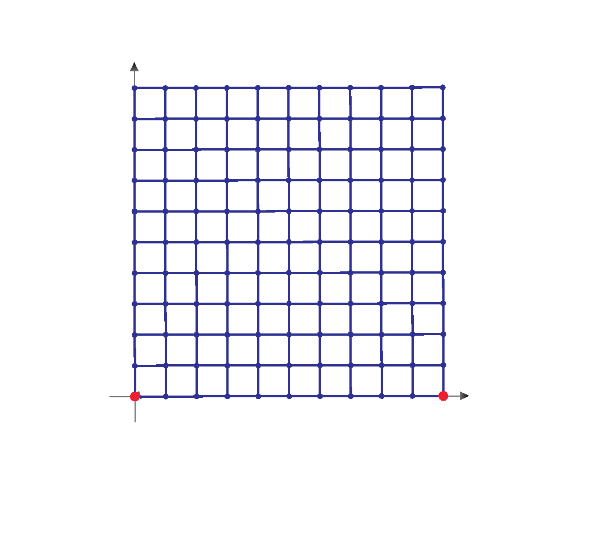

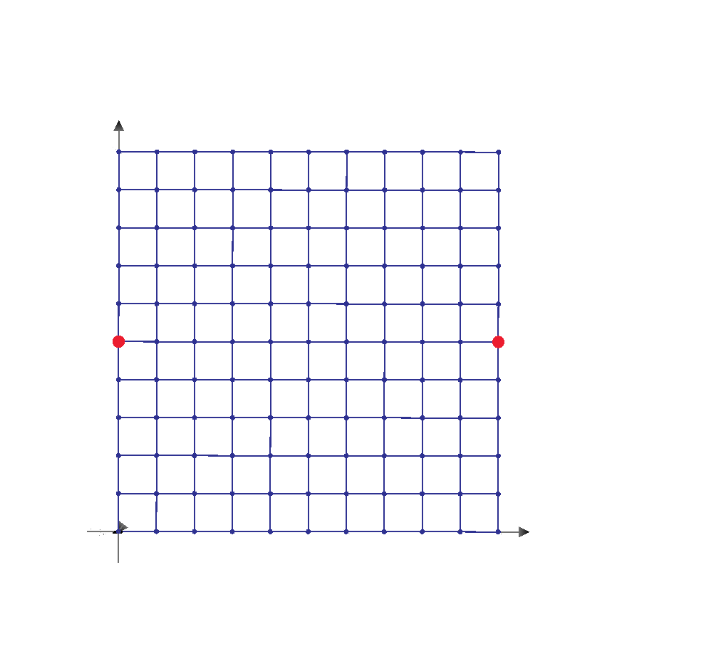

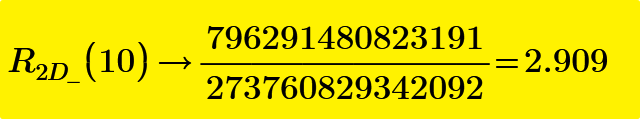

The one of 10*10.image.pngimage.png

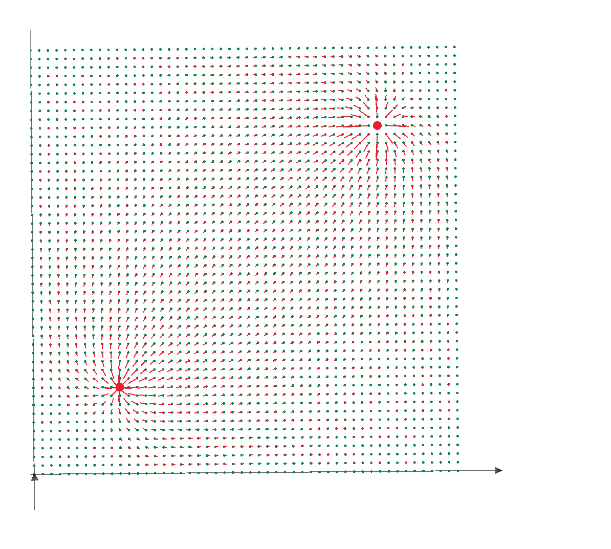

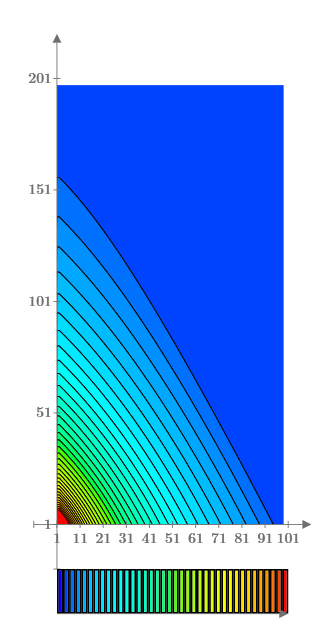

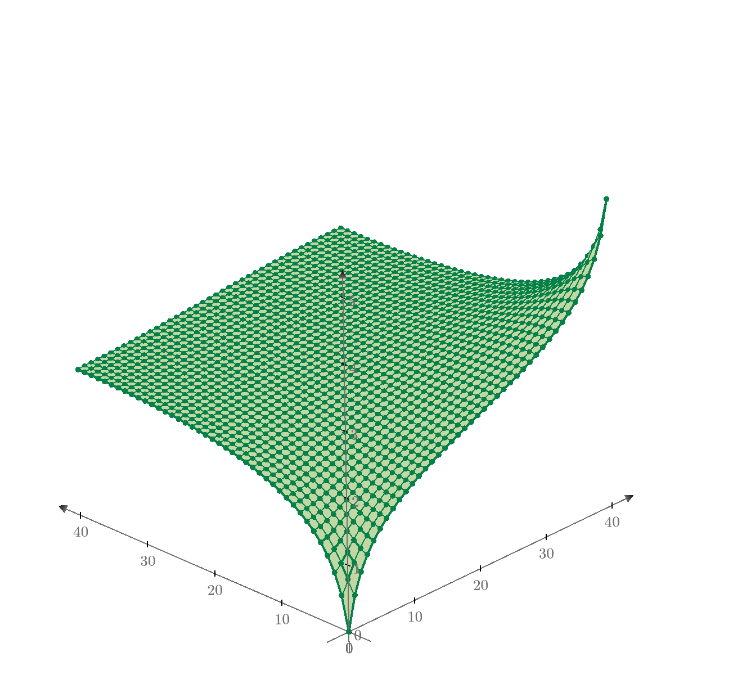

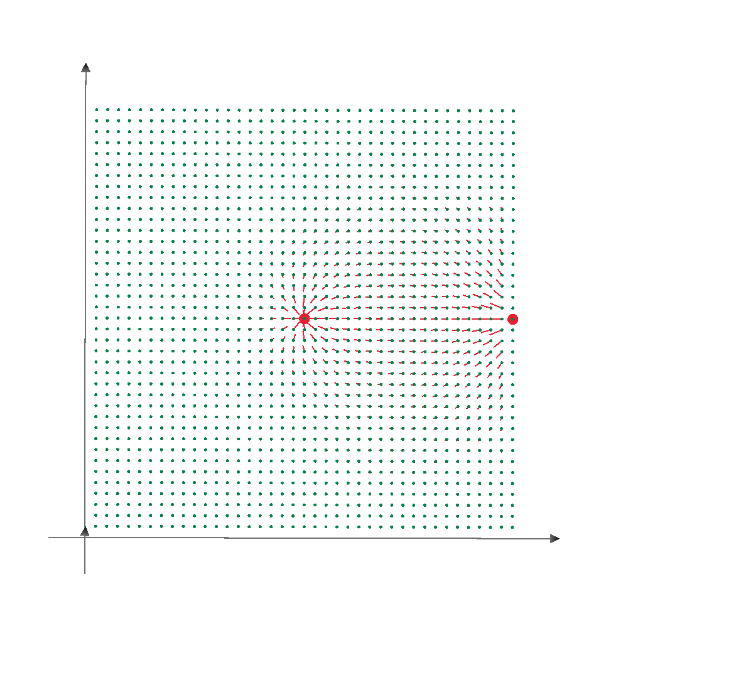

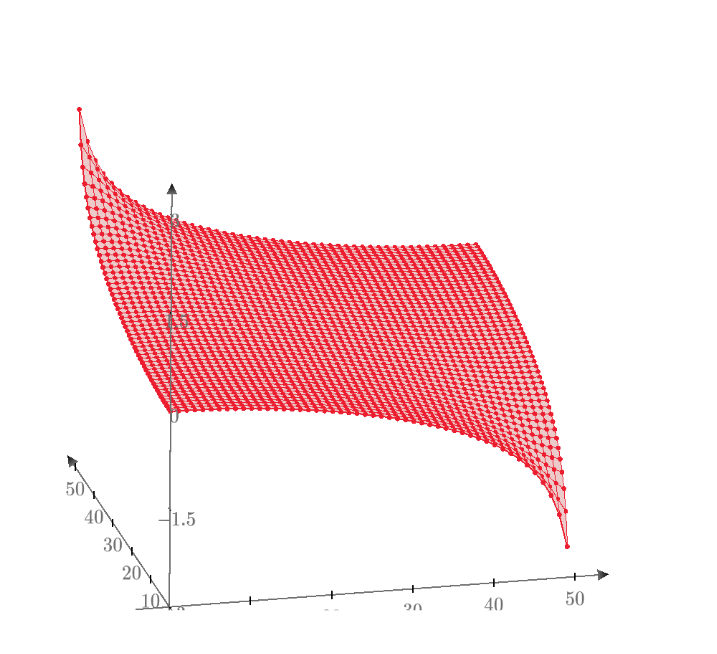

The potential views of the one of 40*40 register mesh.


ttokoro
17-Peridot
(To:ttokoro)


ttokoro
17-Peridot
(To:ttokoro)
