Drawing - Full-visible elements in section view.

SOLVED
cadbart
Regular Member

Drawing - Full-visible elements in section view.

Hi,

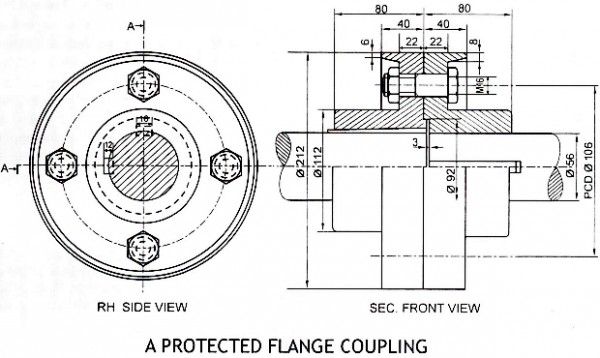

I have a question about section view in Creo Parametric 3.0. I'd like to create section in which some elements (like screws and nuts) are full-visible. E.g. look at the picture below, please.


There's flange coupling where right view is a section but elements like shaft and screw with nut are not hatched. Could you tell me how can I achieve that in Creo 3.0 Drawing?

Thank you in advance for each answer!

1 ACCEPTED SOLUTION

Accepted Solutions

Re: Drawing - Full-visible elements in section view.

In the drawing view, select the x-hatch and RMB - Properties (or double click the x-hatch).

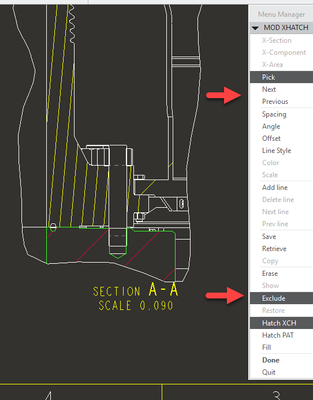

Use NEXT or PREVIOUS to highlight the component you want to modify the x-hatch on.

Select EXCLUDE for the items you do not want to be sectioned (warning - view doesn't really update until you complete the operation).

Once you get all the items excluded, select DONE to complete the operation, view will update.





Steve Williams
Pro/E Version 15/16 (Circa 1995/1996)

View solution in original post

2 REPLIES 2

Re: Drawing - Full-visible elements in section view.

In the drawing view, select the x-hatch and RMB - Properties (or double click the x-hatch).

Use NEXT or PREVIOUS to highlight the component you want to modify the x-hatch on.

Select EXCLUDE for the items you do not want to be sectioned (warning - view doesn't really update until you complete the operation).

Once you get all the items excluded, select DONE to complete the operation, view will update.





Steve Williams
Pro/E Version 15/16 (Circa 1995/1996)

View solution in original post

Re: Drawing - Full-visible elements in section view.

I've never thought something could be such simple in Creo.. Thank you so much, sir, that really helped!
